Mercedes Benz
>>
2000
>>
C 230K (202.024) L4-2.3L SC (111.975)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Body Control Systems
>>
Testing and Inspection
>>
Diagnostic Procedures
>>
Convenience Feature (CF) (Inc. Power Windows/Sliding Roof)
>>
Diagnosis
>>

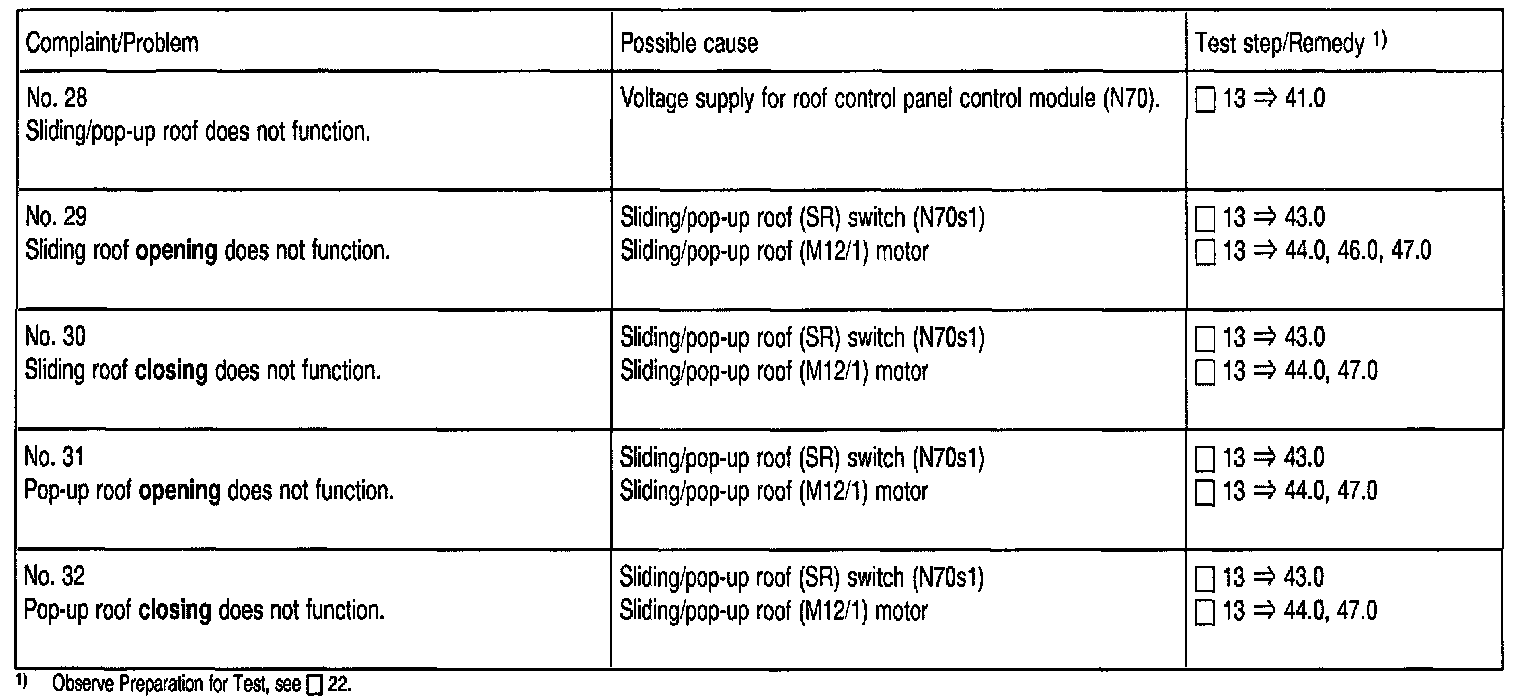

Complaint Related Diagnostic Chart - Section 14
>>
No. 28 - 32
No. 28 - 32
Steps No. 28 - 32:
