Remove/Install Overhead Control Panel (OCP)

Removing And Installing Overhead Control Panel Control Module

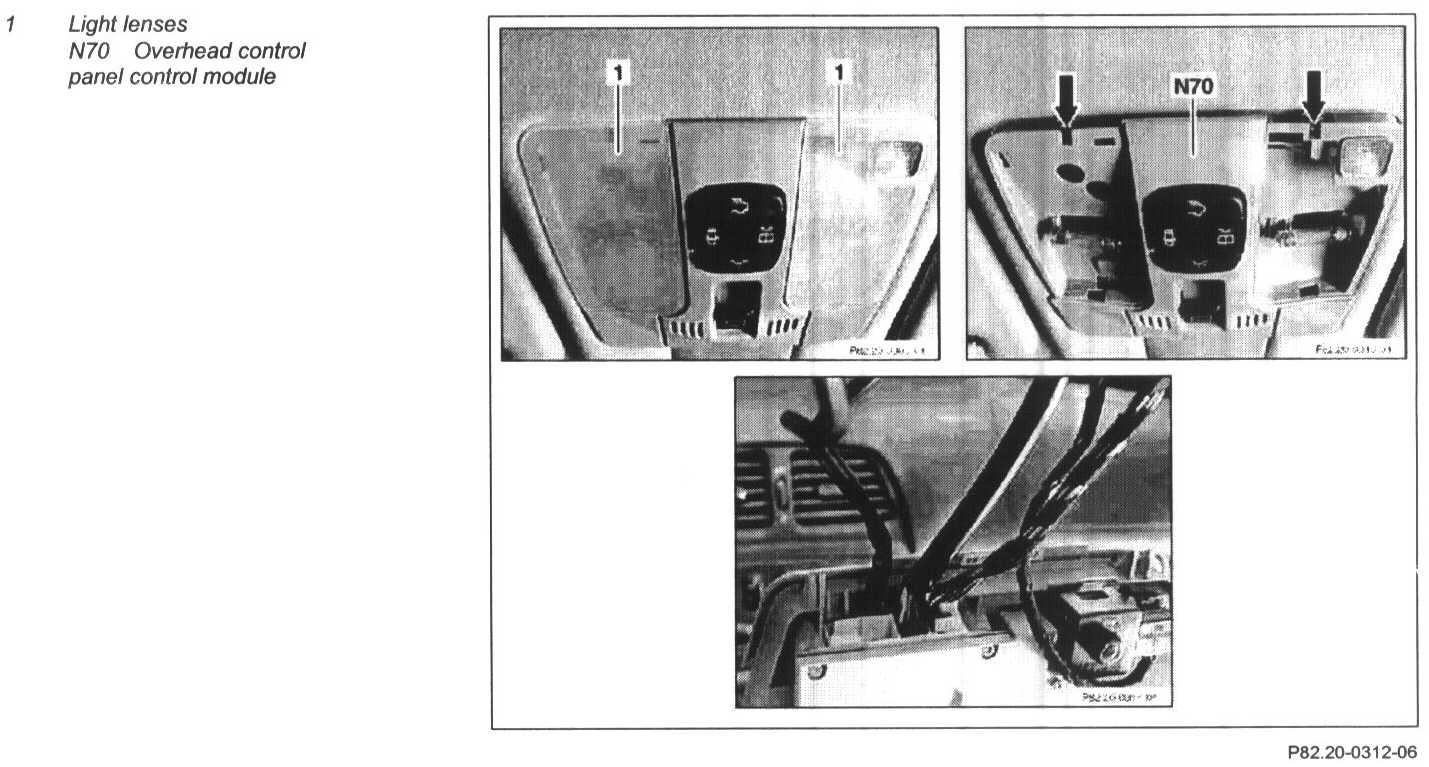

1 Pry out lenses (1)
2 Press in clips (arrows)
3 Pry out overhead control panel control module (N70) toward front
4 Disconnect electrical connectors on overhead control panel control module (N70)
5 Reinstall in opposite order
