Home >> Mercedes Benz >> 2000 >> C 230K (202.024) L4-2.3L SC (111.975) >> Repair and Diagnosis >> Body and Frame >> Body Control Systems >> Locations >> Convenience Feature (CF) (Inc. Power Windows/Sliding Roof)

Convenience Feature (CF) (Inc. Power Windows/Sliding Roof)



Figure 1 - Model 210 Shown:

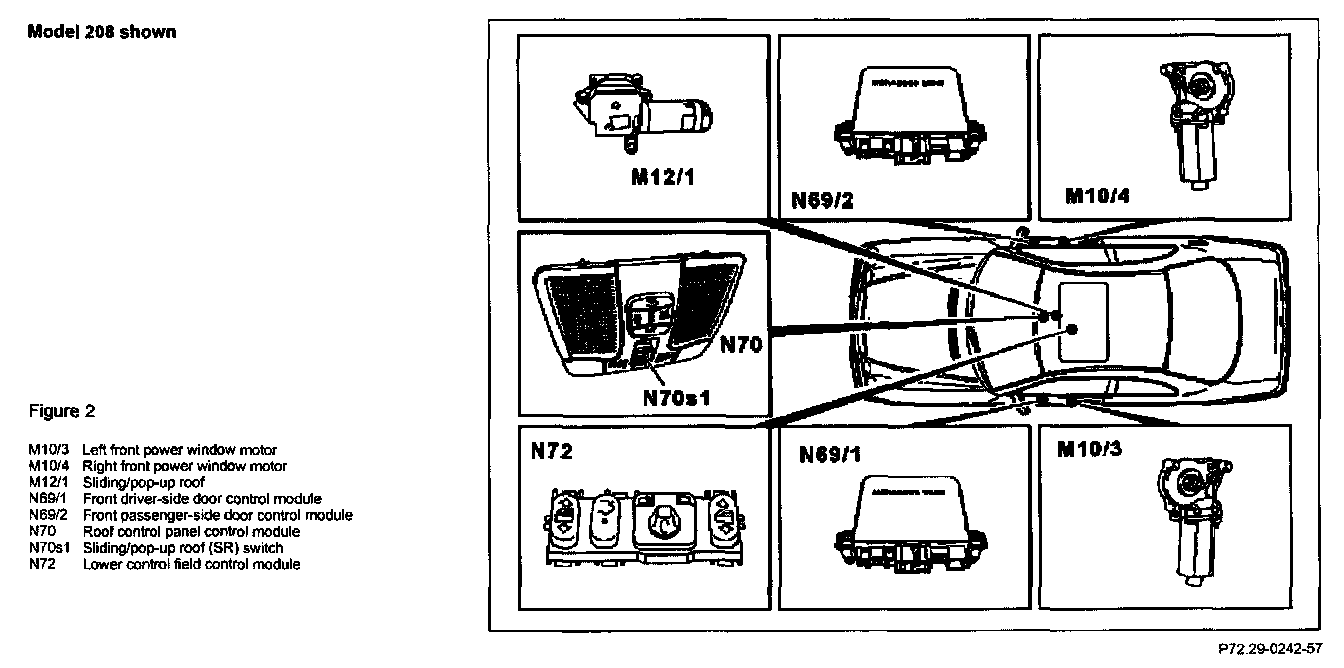

Figure 2 - Model 208 Shown:

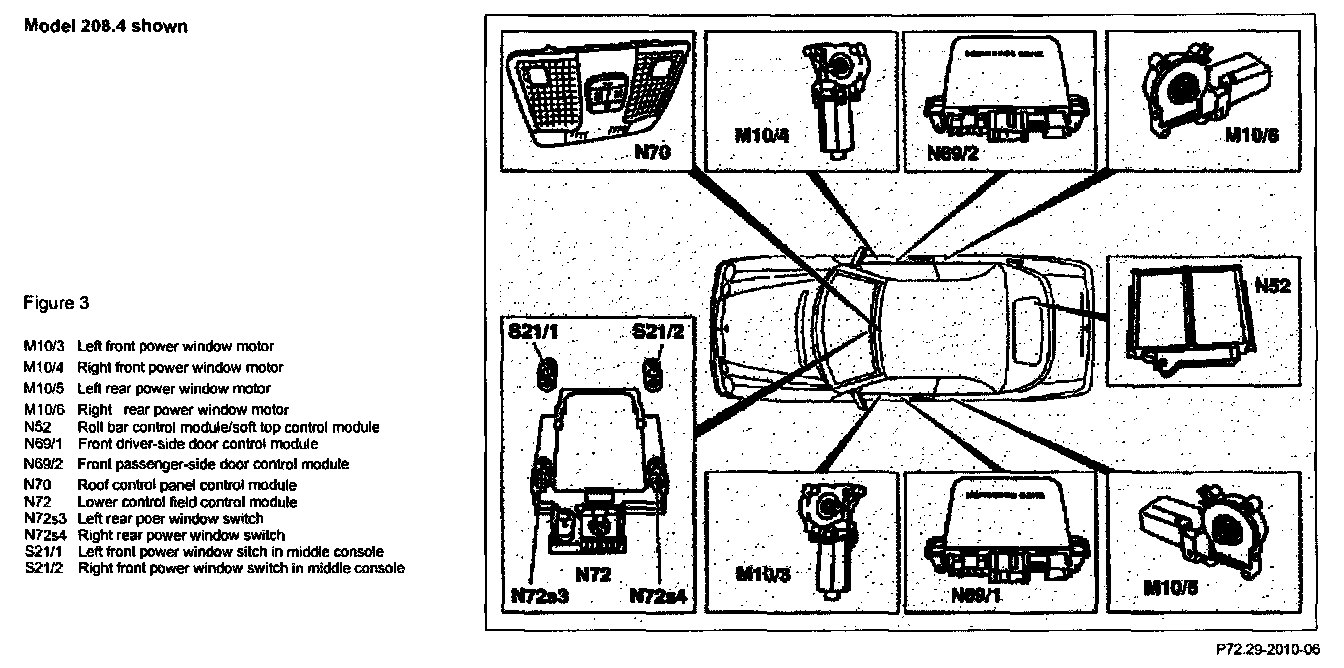

Figure 3 - Model 208.4 Shown:

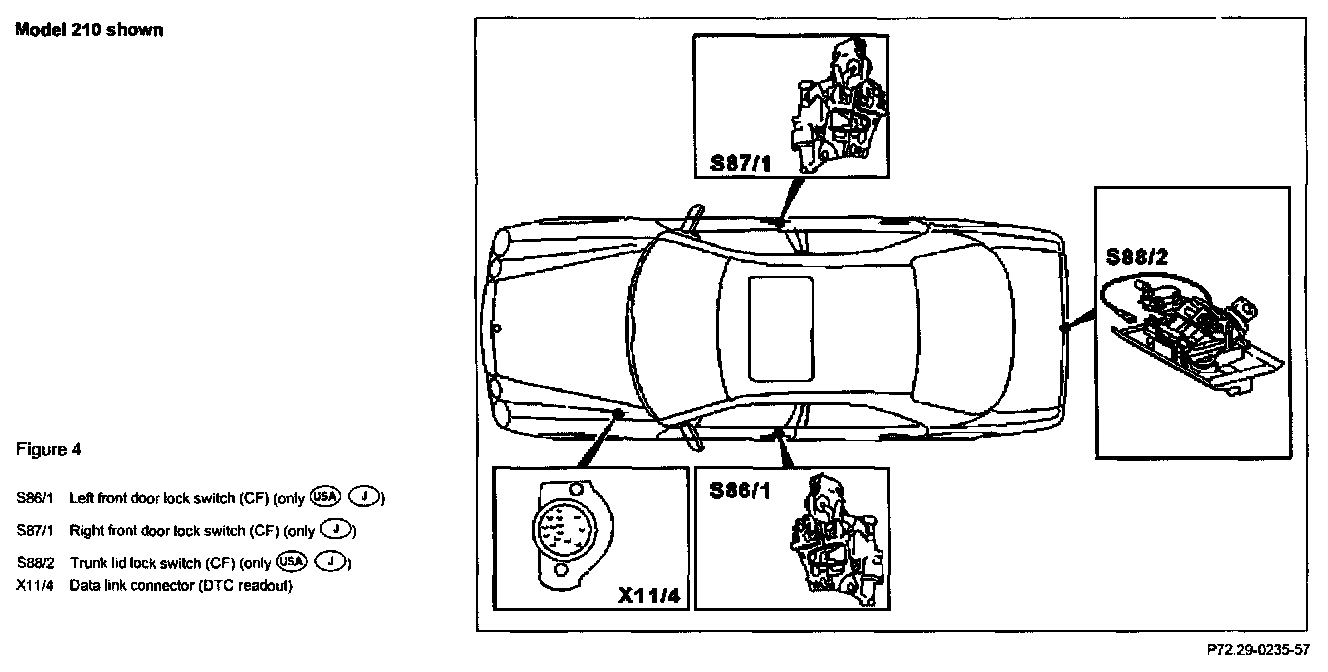

Figure 4 - Model 210 Shown:
