Radio - Cellular Phone and CD Changer Installation: Overview

BULLETIN NUMBER:
P-SI-82.64/128

GROUP:
82

DATE:
May 2000

SUBJECT:
CELLULAR TELEPHONE/CD CHANGER INSTALLATION

MODELS:
202.024/029/033 (MY 2000)

WARNING!
Disconnecting the negative battery cable i not recommended due to otherwise extensive reprogramming requirements. WIRING HARNESSES WILL BE ELECTRICALLY ACTIVE. IT IS THEREFORE NECESSARY TO EXERCISE EXTREME CAUTION WHILE EXECUTING THESE INSTALLATION INSTRUCTIONS. FAILURE TO DO SO, COULD RESULT IN SEVERE PERSONAL INJURY OR DEATH FROM ELECTRICAL SHOCK. The ignition and radio power must remain OFF until the final test is performed.

APPLICATION SPECIFIC D2B NOTES:

- Telephone and CD changer fibers are installed in the vehicle at the factory. The telephone fibers run to the left rear and the CD fibers to the right rear quarter panel.

- The vehicle is configured at the factory for the CD changer only.

- All reconfiguration points are located just to the right of the fuse panel in front of the trunk battery.

Parts Information:

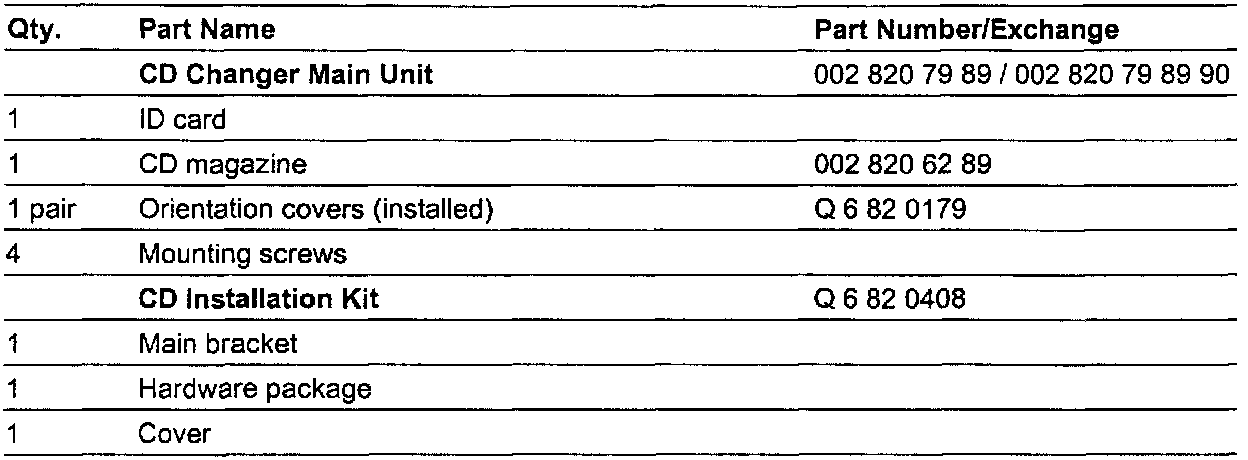

Part Information (CD changer main unit)

Parts Information:

Part Information (StarTac portable Kit - CDMA)

Parts Information (Telephone Installation Kit):

Part Information (Telephone Installation Kit)
