E. Installing the CD Changer

E. Installing the CD changer

Figure 9:

1. Remove the three CD changer transport screws and install them into the holding locations in back of the CD changer (Figure 9).

2. Set the suspension spring configuration to V (vertical).

3. Remove the three adhesive dust covers from the kit and affix them over the transport screw holes in the bottom of the CD changer.

4. Remove the right trunk-liner panel and locate the 3-pole electrical connector and fiber optics in the right wheel well.

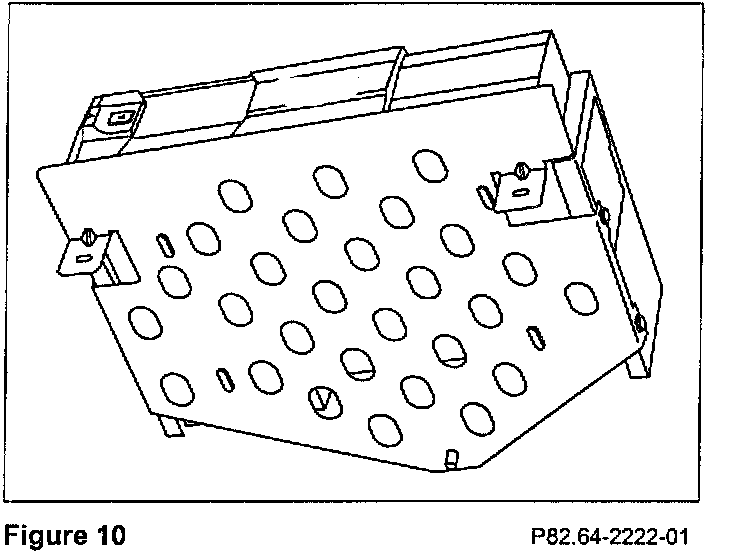

Figure 10:

5. Attach the CD changer to the CD mounting bracket with four M4 x 5 machine screws (Figure 10).

6. Install the cover by engaging the plastic hinges over the flange on the bracket top edge and then roll the hinges toward the back to lock them.

Note: Verify that the correct fibers (according to other installed accessories [e.g. telephone]), are installed into the fiber connector. Reconfigure if necessary.

7. Connect the 3-pole electrical and fiber optic connectors to the back of the CD changer.

8. Reinstall the right trunk-liner panel.

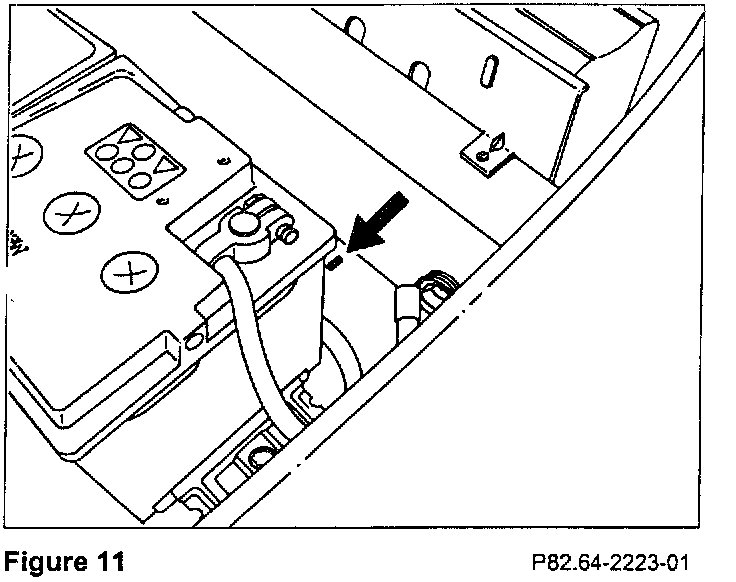

Figure 11:

9. Lower the CD changer into the wheel well so that the pin on the bottom of the mounting bracket fits into the prepunched opening on the side member behind the battery (Figure 11).

10. Position the CD changer so that the tabs on the mounting bracket align over the prepunched factory mounting locations.

11. Secure the top mounts with the provided screws.
