C. Installing the Completed Bracket Assembly

C. Installing the completed bracket assembly

1. Using the completed bracket assembly to confirm proper location, place the 4-mm threaded insert into the hole in the hat shelf and secure it with the proper insert tool.

Note: Remove one of the cable retaining clips to install the insert if remote seatback releases are installed. Once the bracket assembly is installed, remount the clip in the bracket foot hole.

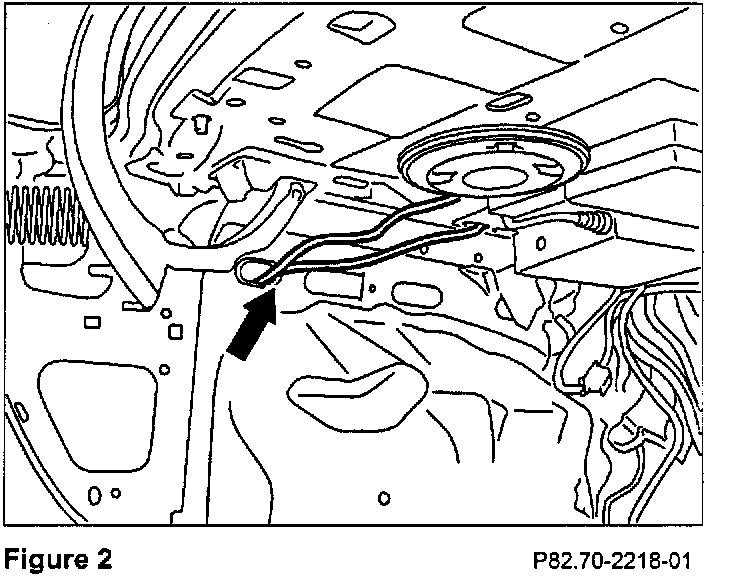

Figure 2:

2. Route the integrated antenna cable behind the partition panel above the wheel well housing (Figure 2).

3. Connect the integrated antenna cable to the linear compensator jack labeled ANTENNA.

4. Connect the coaxial cable from the center console to the linear compensator jack labeled PORTABLE.

Note: NO NOT reverse the coaxial connections in steps 3 and 4.

5. Connect the 25-pole Y-cable connector to the mating vehicle side pre-wire harness.

6. Remove the protective cap from the D2B optical connector and connect it to the PSE module receptacle.

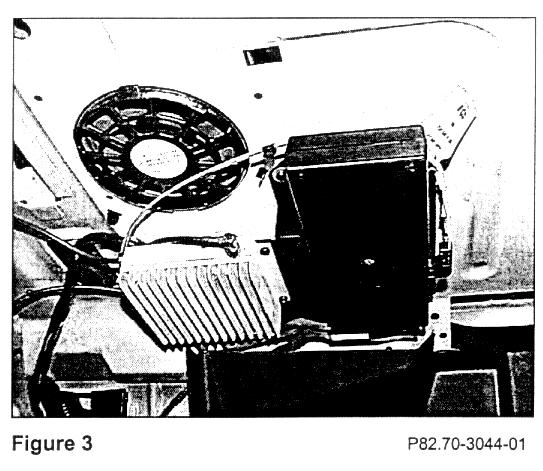

Figure 3:

7. Set the two mounting bracket tabs into the slots in the left rear hat shelf and secure the bracket with an M4 x 6 machine screw and washer (Figure 3).
