Anti-Towing Sensor, Location

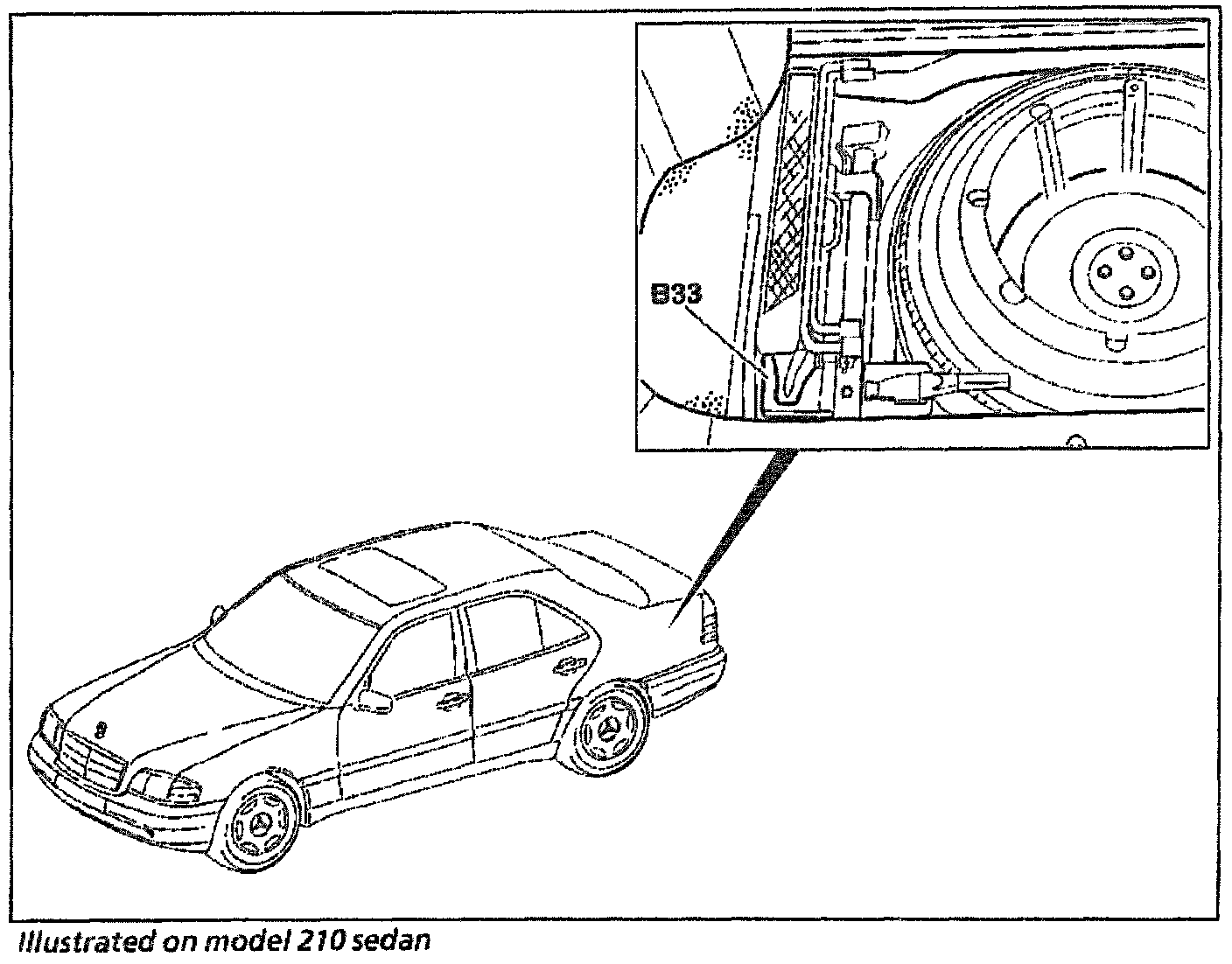

(Illustrated On Model 202 Sedan):






The ATA inclination sensor (B33) is located at the left rear in the spare wheel recess in the trunk.
