Home >> Mercedes Benz >> 2000 >> C 230K (202.024) L4-2.3L SC (111.975) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Alarm Module >> Service and Repair >> Remove/Install Infrared Motion Sensor Control Unit

Remove/Install Infrared Motion Sensor Control Unit

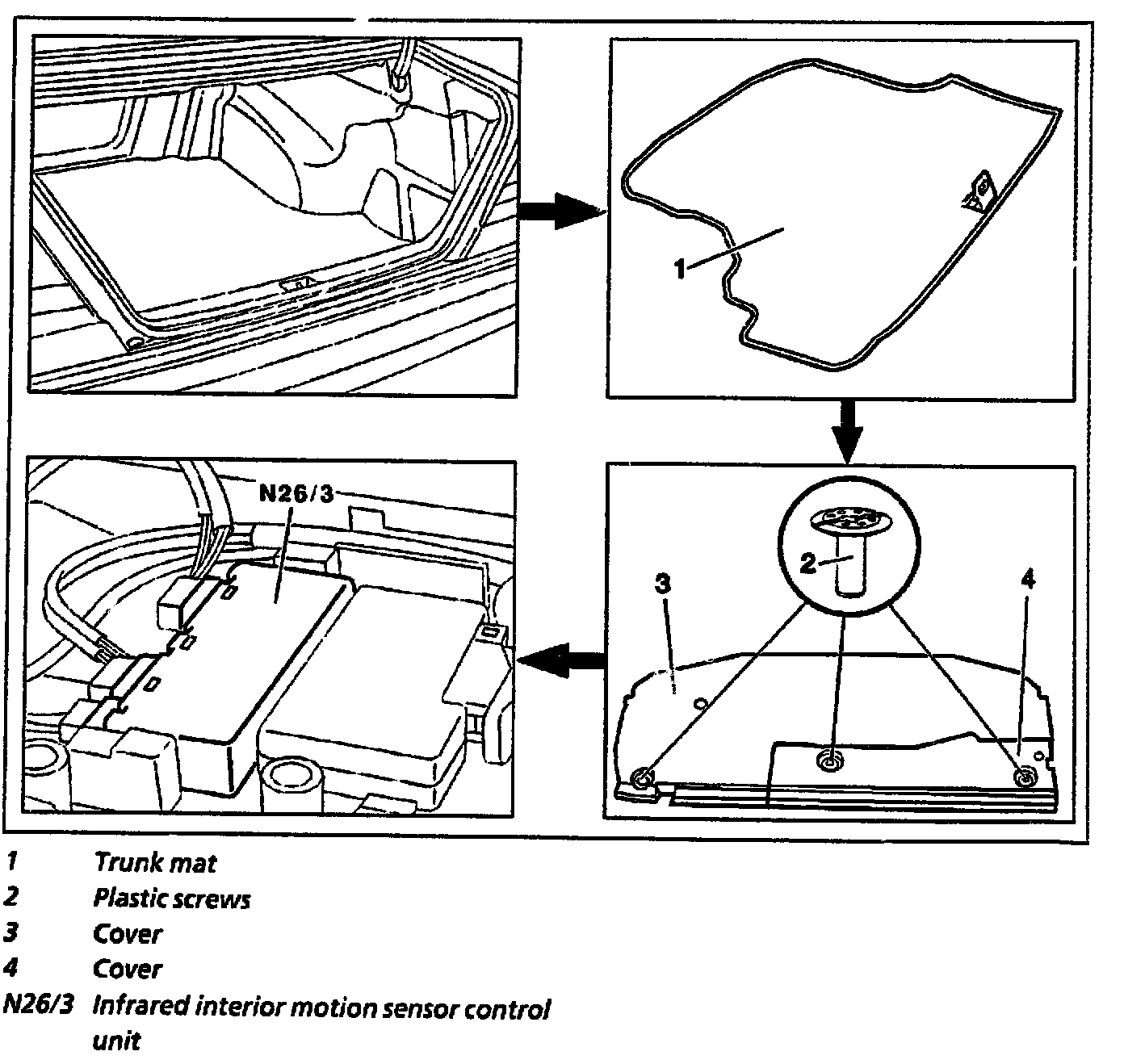

Component Identification:

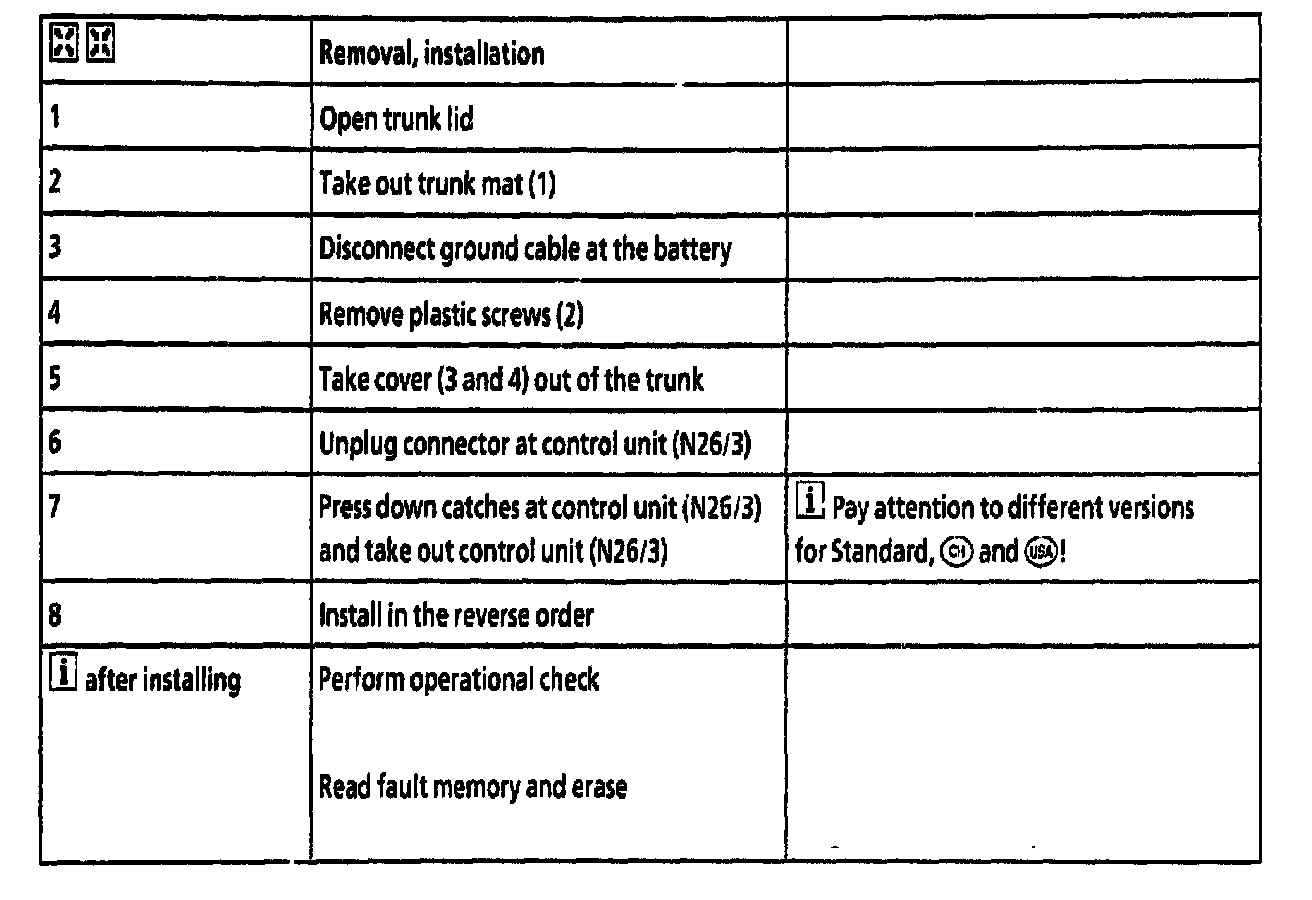

Removal/Installation:
