SLK 230 (170.447) L4-2.3L SC (111.973)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Roll Bar
Roll Bar
BA91.50-P-1000-01A Rollover Bar Mechanical System

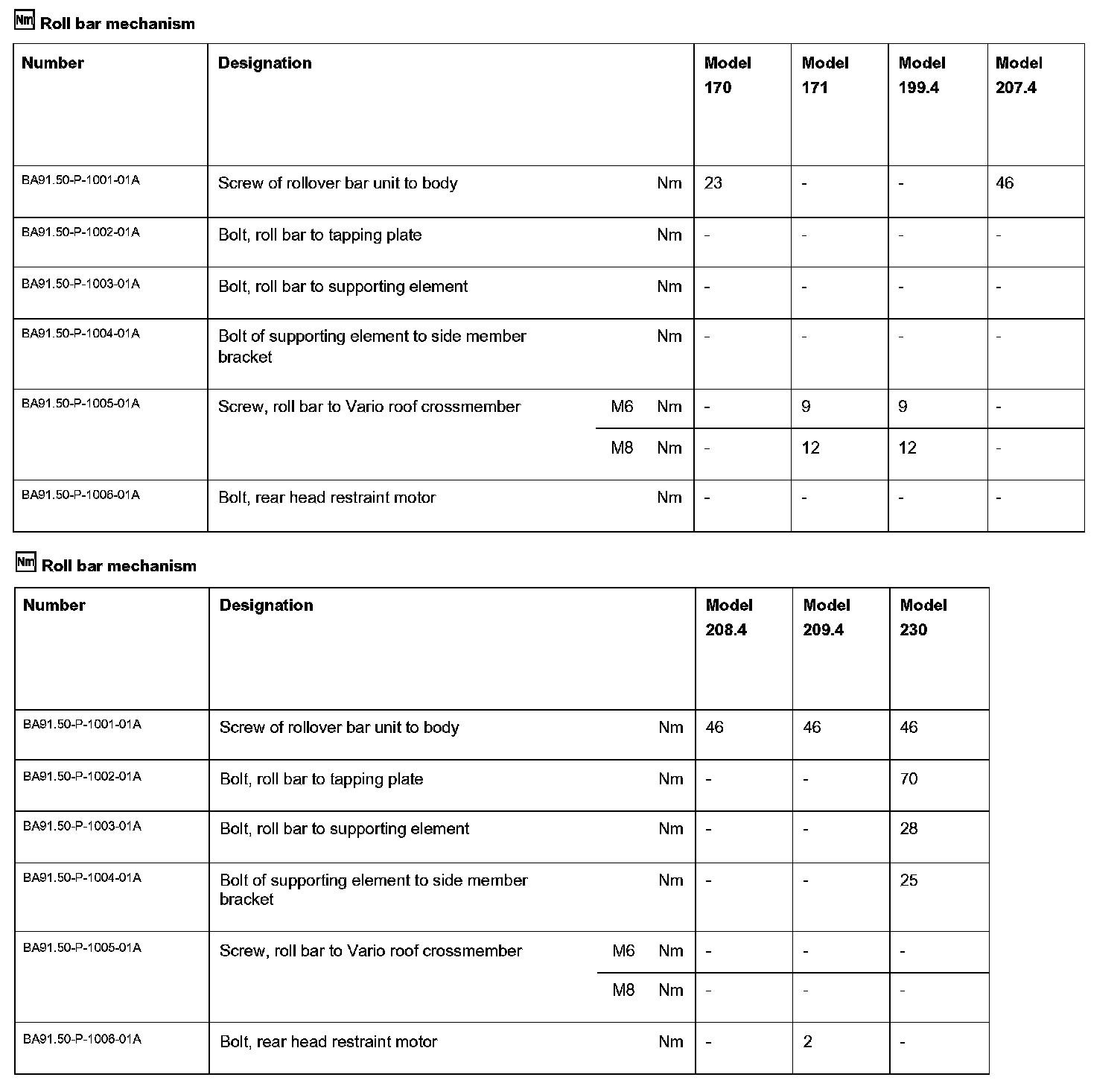

Roll Bar Mechanism:
