Refrigerant Pressure Sensor / Switch: Locations




Component Identification:

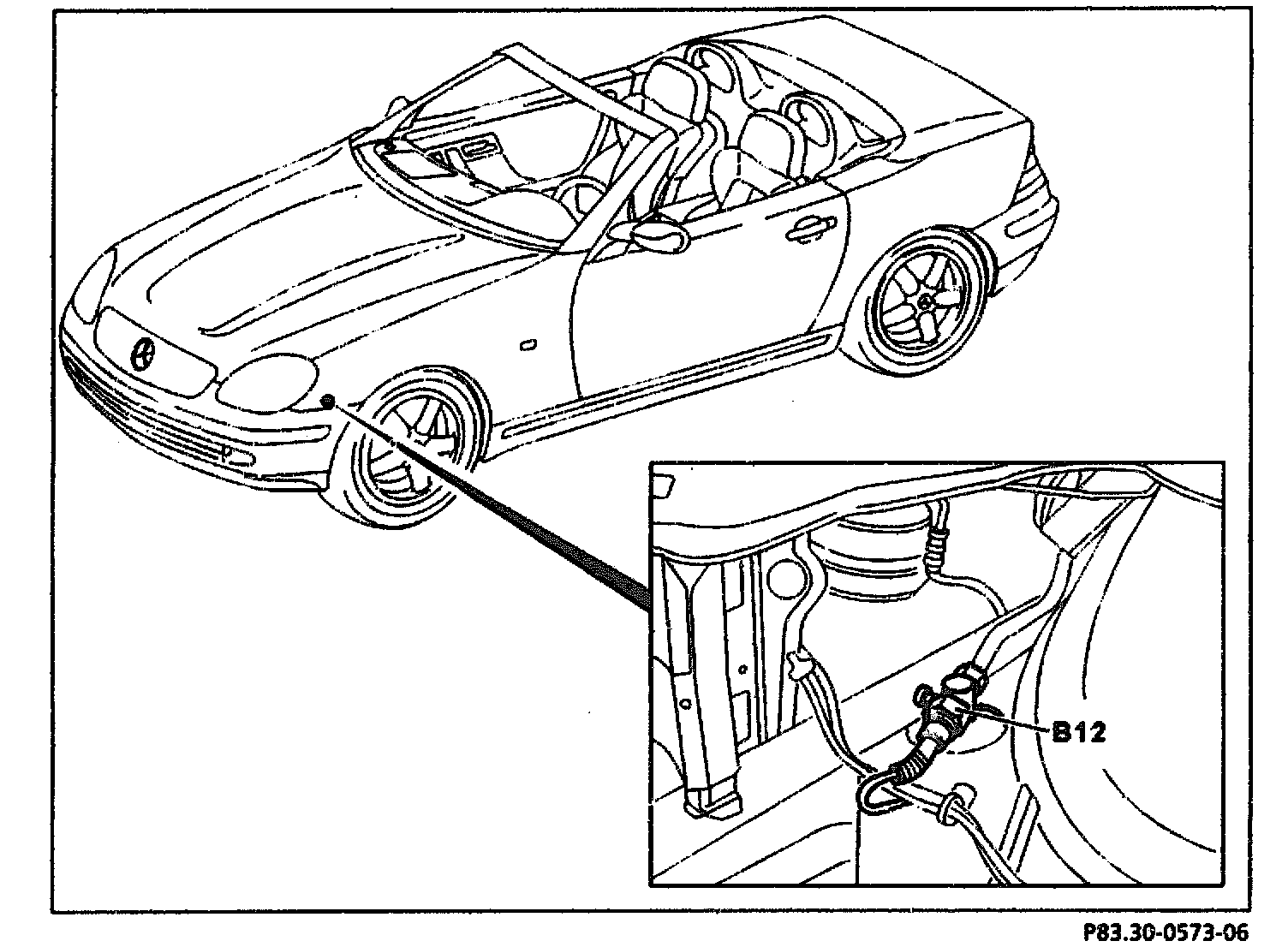

The refrigerant pressure sensor (B12) is located at the front left in the engine compartment.
