Home >> Mercedes Benz >> 1999 >> SLK 230 (170.447) L4-2.3L SC (111.973) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - HVAC >> Air Conditioning Switch >> Description and Operation >> REST

REST

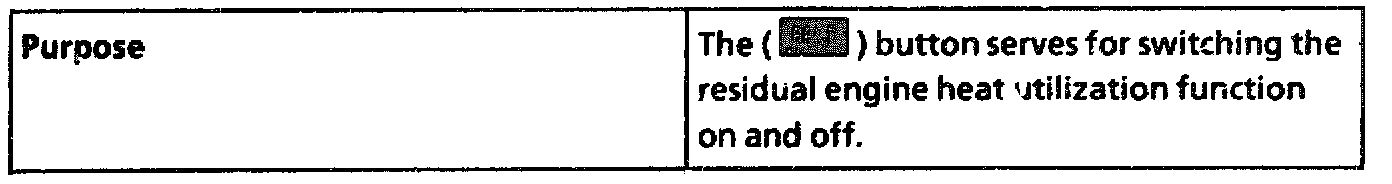

Purpose:

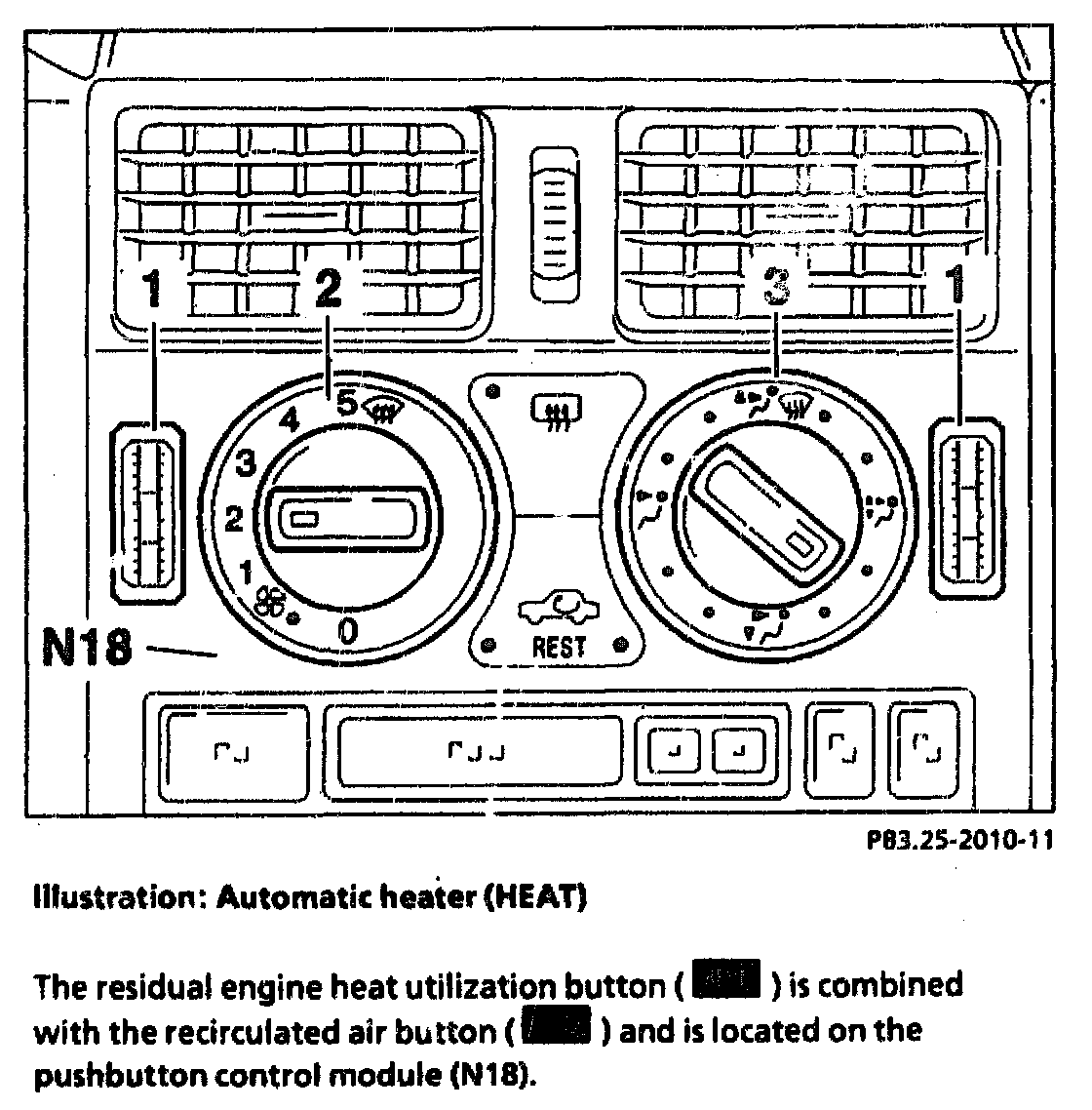

Illustration: Automatic Heater (HEAT):

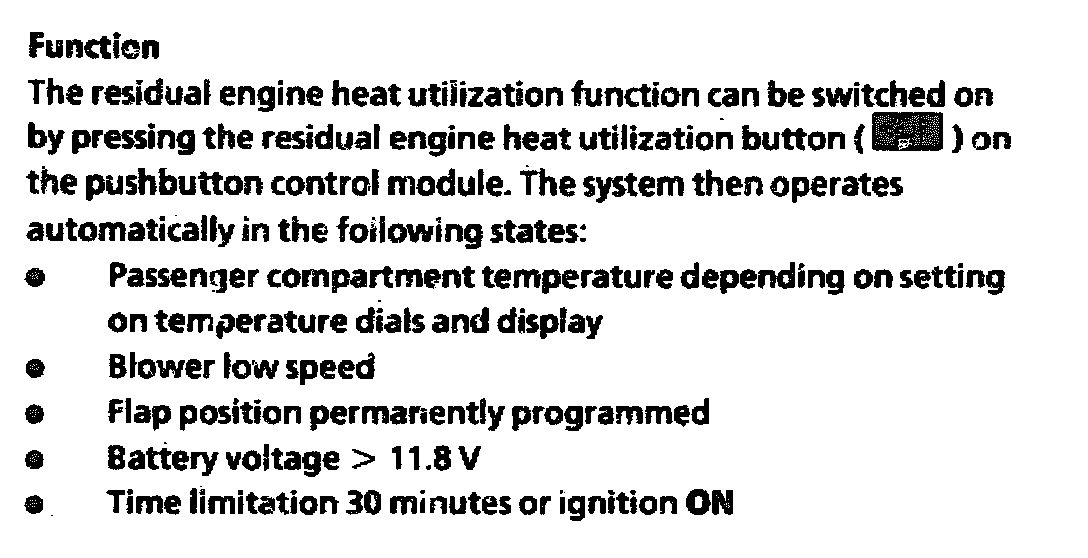

Function:
