Front/Rear Axle Speed Signal (VSS) PE00.19-U-2900A (Up to Nov 30, 1998)
Front/Rear Axle VSS Up to Nov 30, 1998

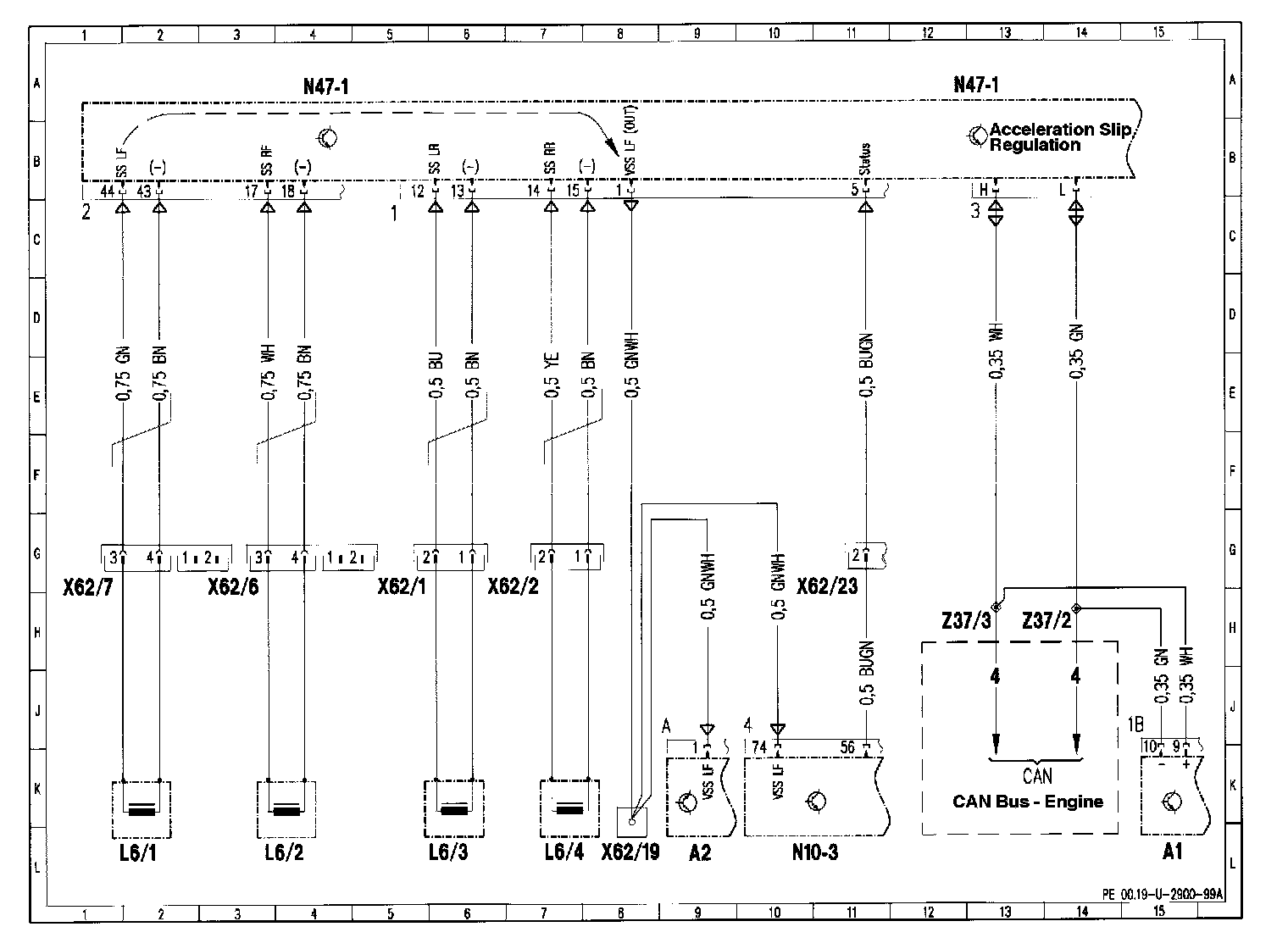

Wiring Diagram

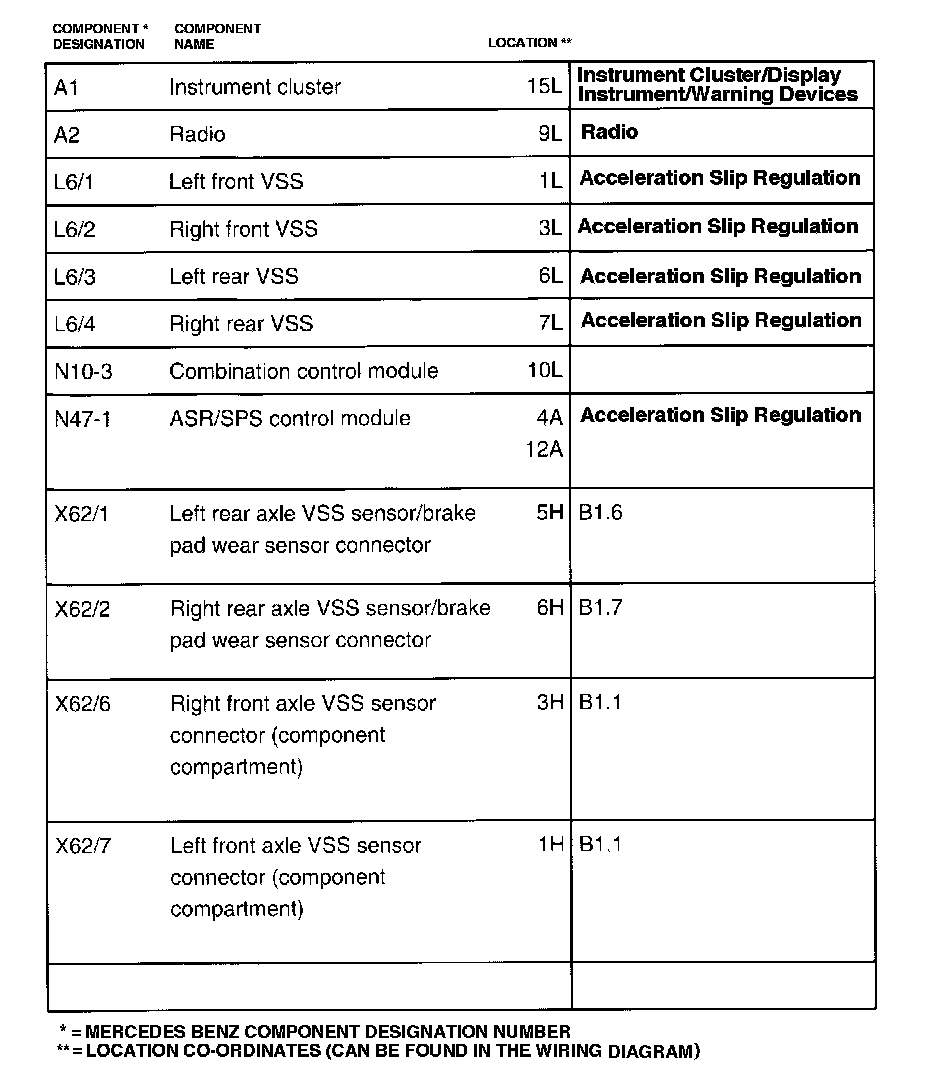

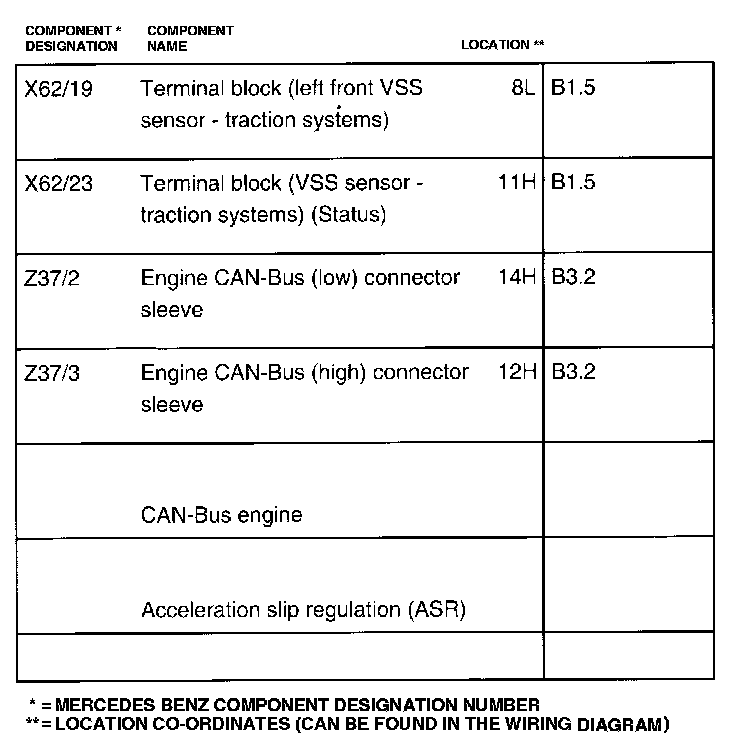

Component Grid Location
A1 - X62/7:
X62/19 - Z37/3:

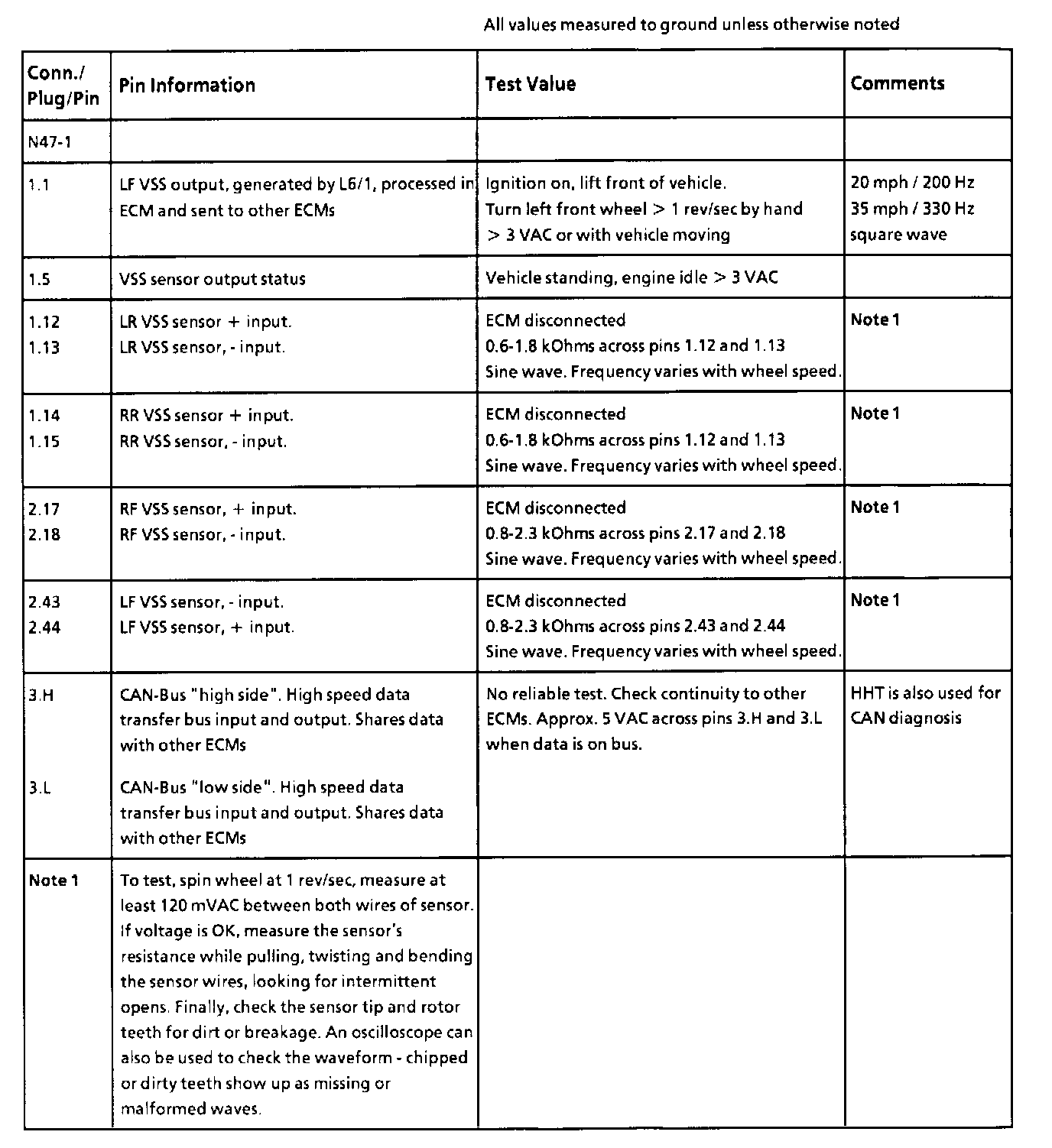

Pin-Out Testing - Component: N47-1
Connector N47 - Pin 1 Through 3 - Pin L:

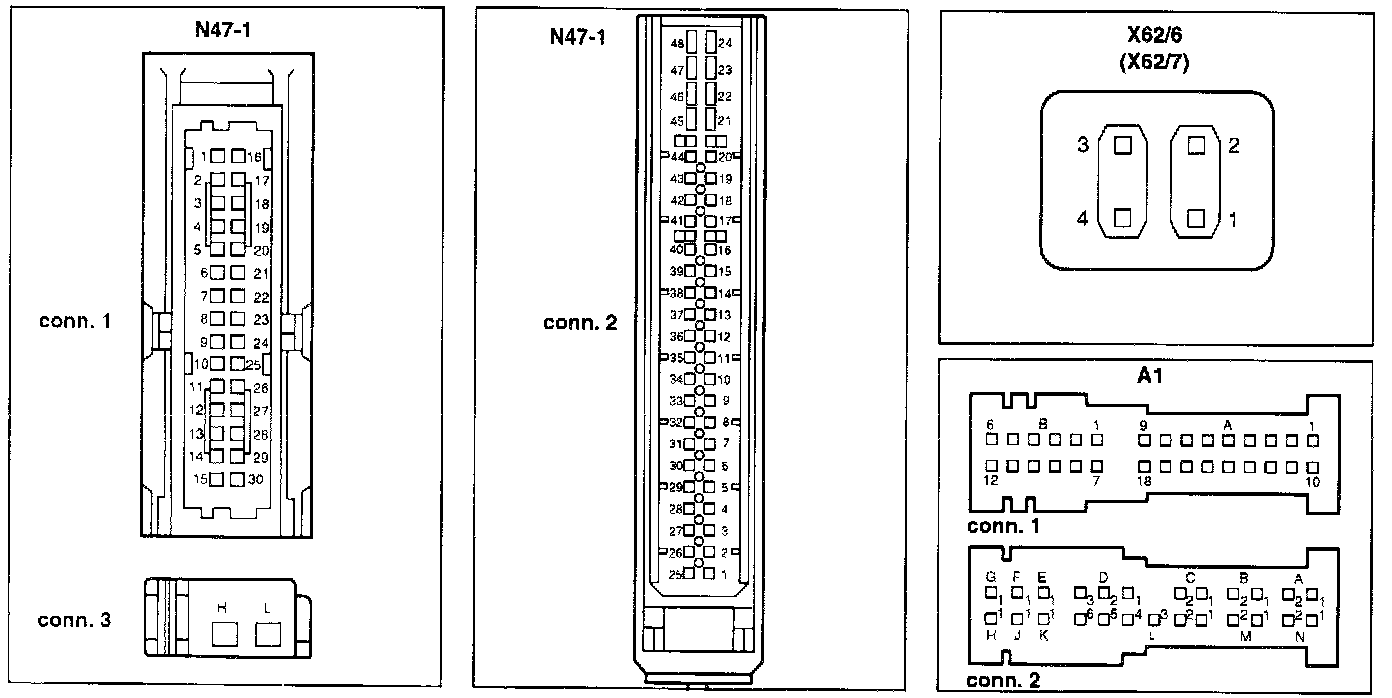

Connector Views:
