Home >> Mercedes Benz >> 1999 >> SLK 230 (170.447) L4-2.3L SC (111.973) >> Repair and Diagnosis >> Locations >> Connector Locations >> By Connector Designation >> S40x1 - Cruise Control (CC) Switch Connector

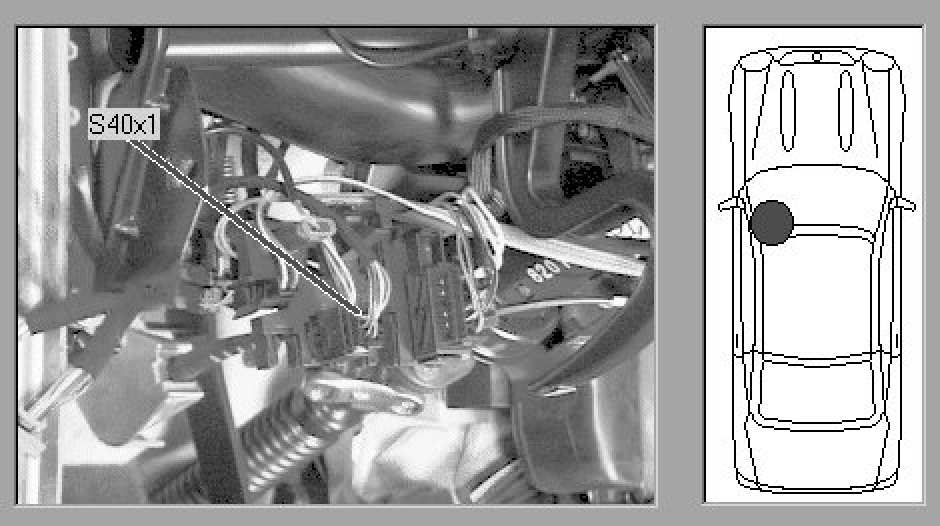

S40x1 - Cruise Control (CC) Switch Connector








Behind dash, to left and below steering wheel
