Home
>>
Mercedes Benz
>>
1999
>>
SLK 230 (170.447) L4-2.3L SC (111.973)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Component Tests
>>
Refrigeration System Test Program
Refrigeration System Test Program
Air Conditioning (A/C) (Tempmatic)
Models 170

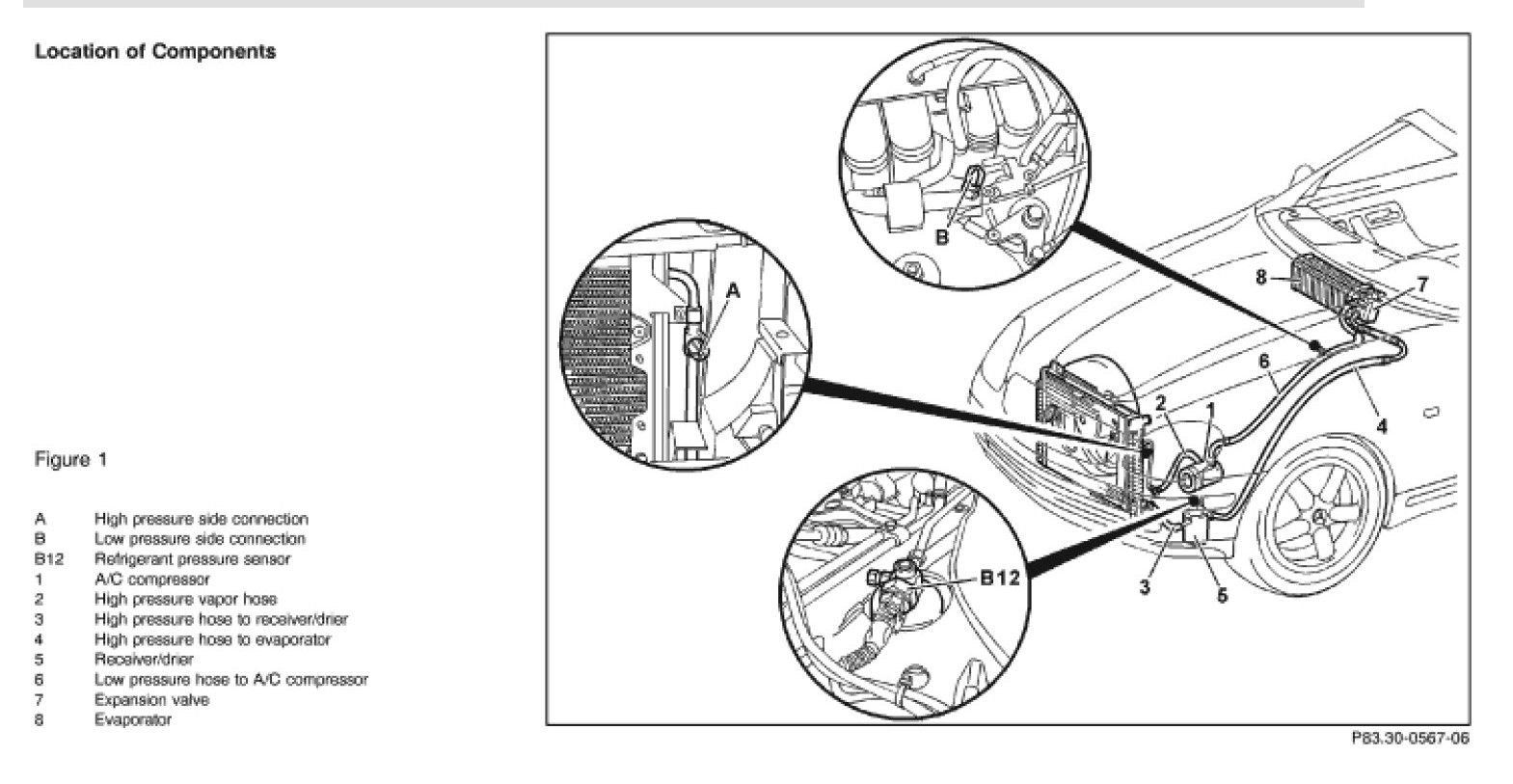

Refrigeration System Test Program - Component Locations
