Cycle Module (N65) PE54.21-U-2100B
Cycle Module (N65) PE54.21-U-2100B
Cycle Module (N65)

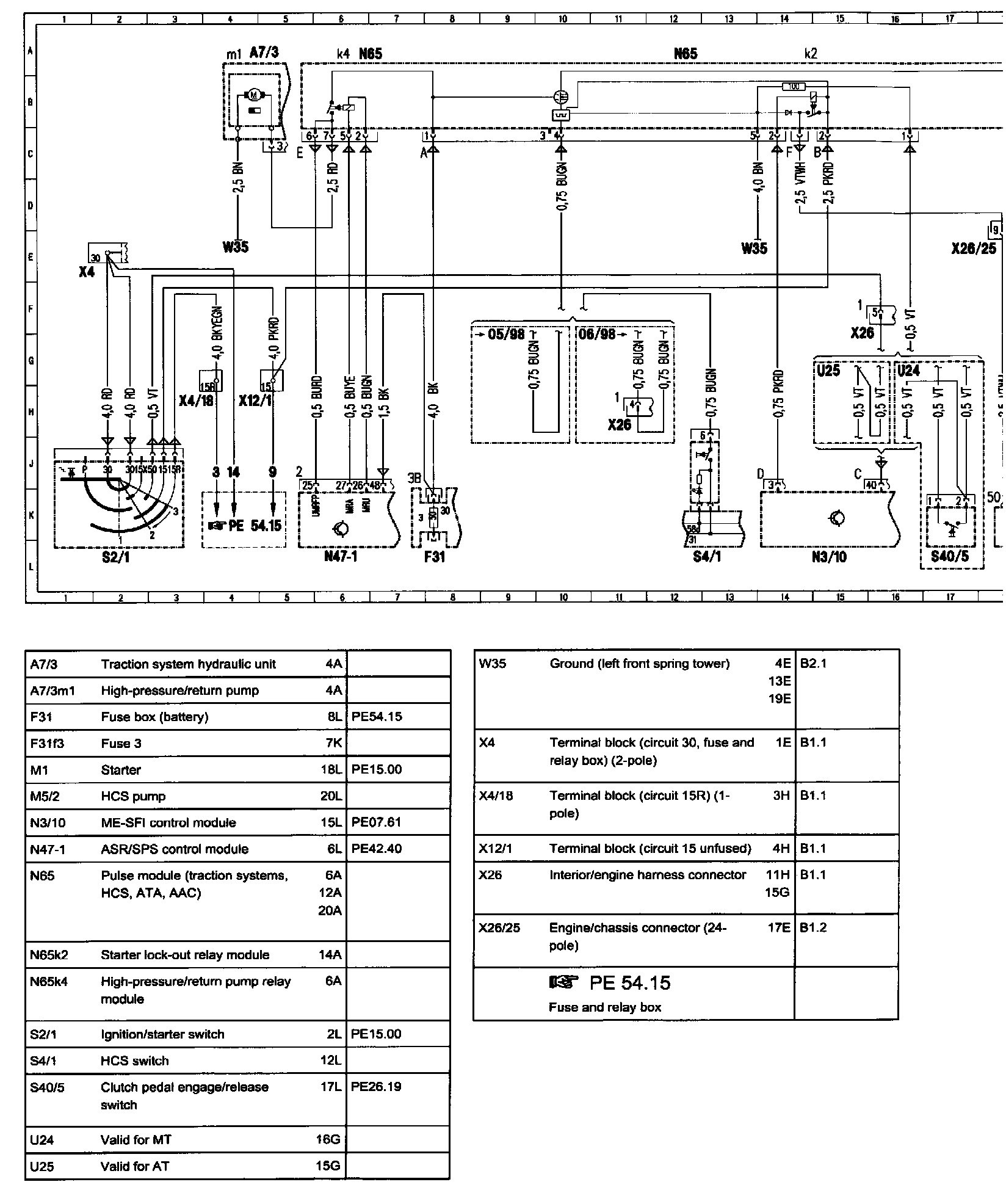

�H�(Wiring Diagram:

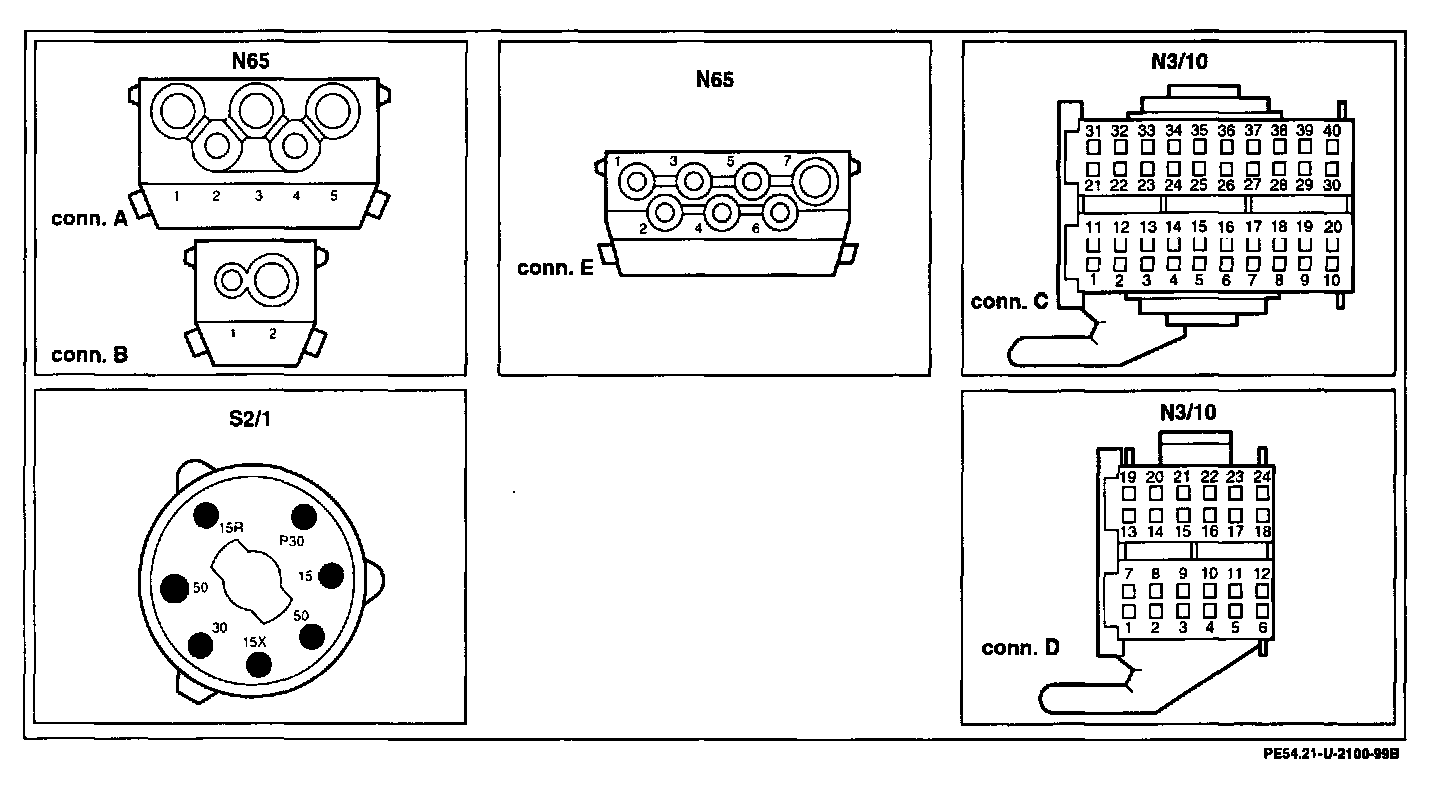

Connector Assignment:

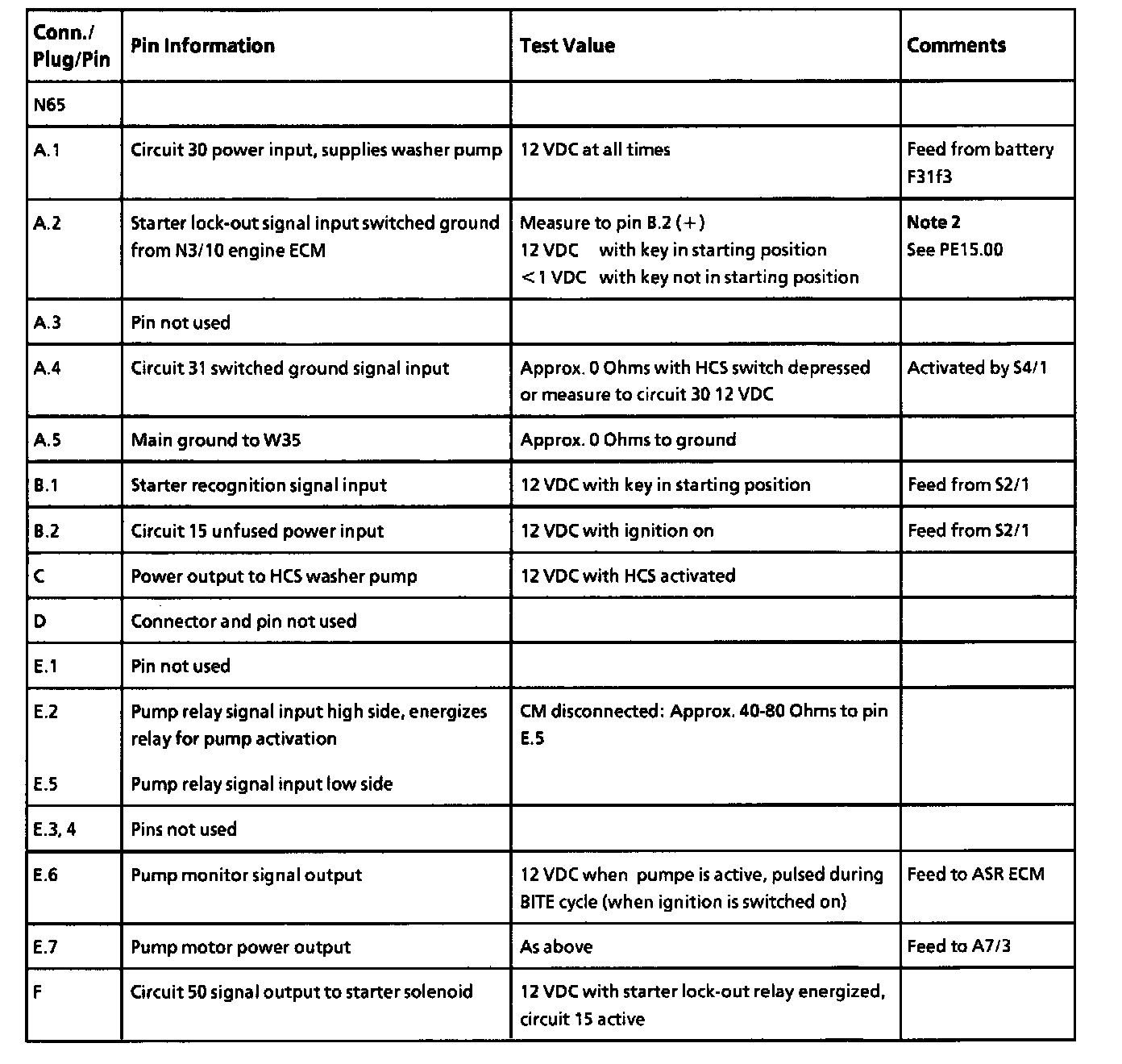

Pin Information:
