ME-SFI Fuel Injection/Ignition System PE07.61-U-2000V
ME-SFI Fuel Injection and Ignition System
- Engine Block Harness

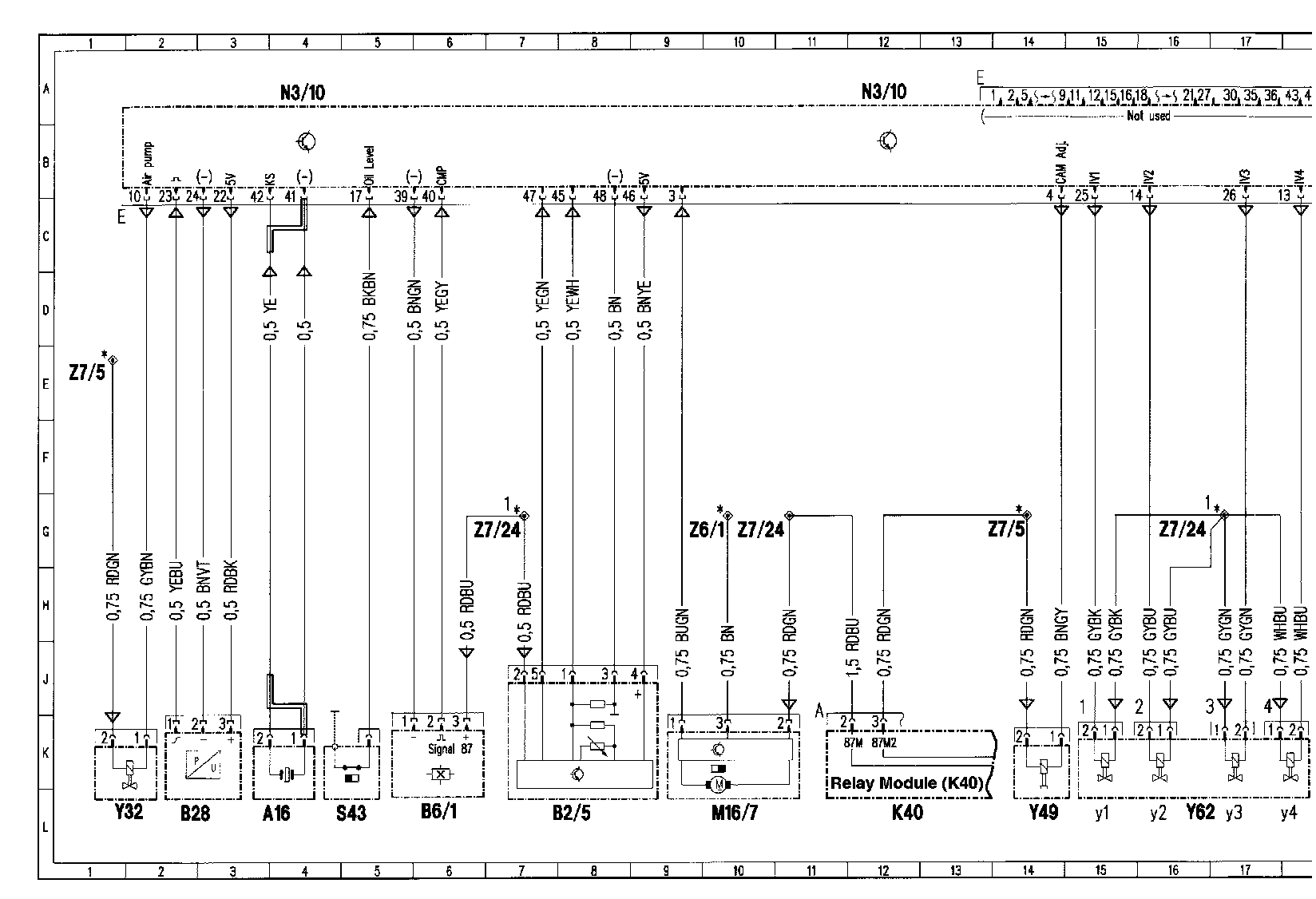

Wiring Diagram
3� :
Component Grid Location

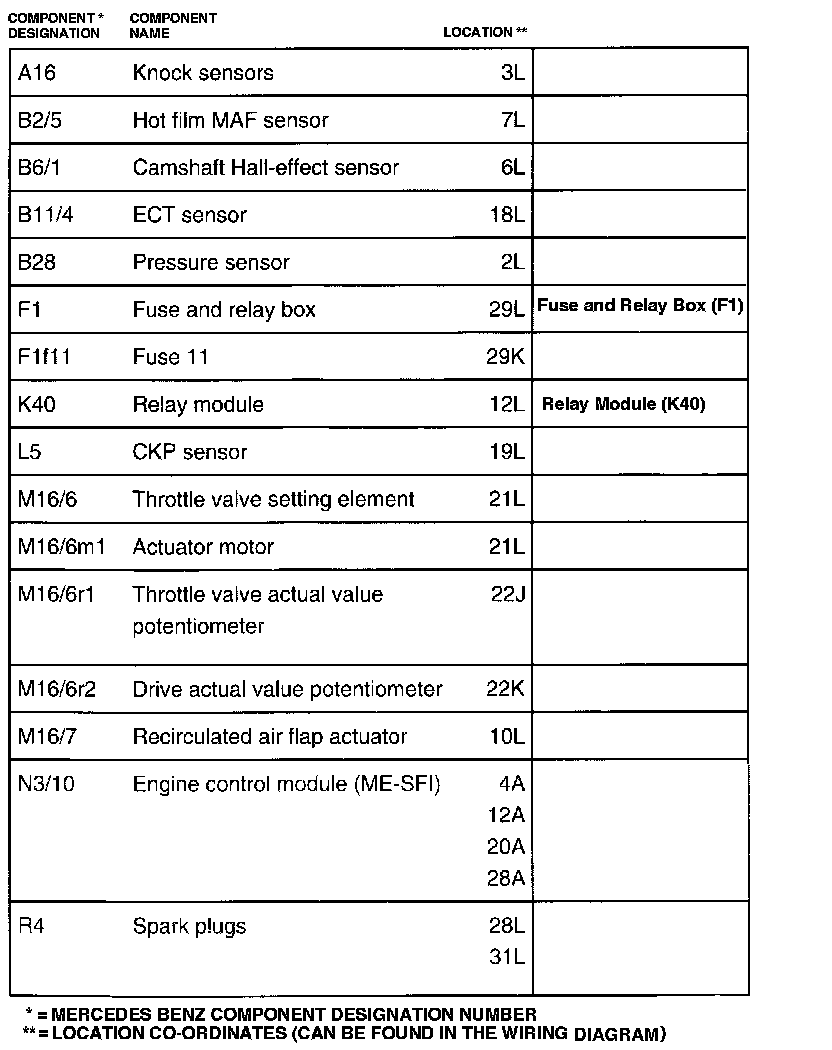

A16 - R4:
S43 - Z3/29:

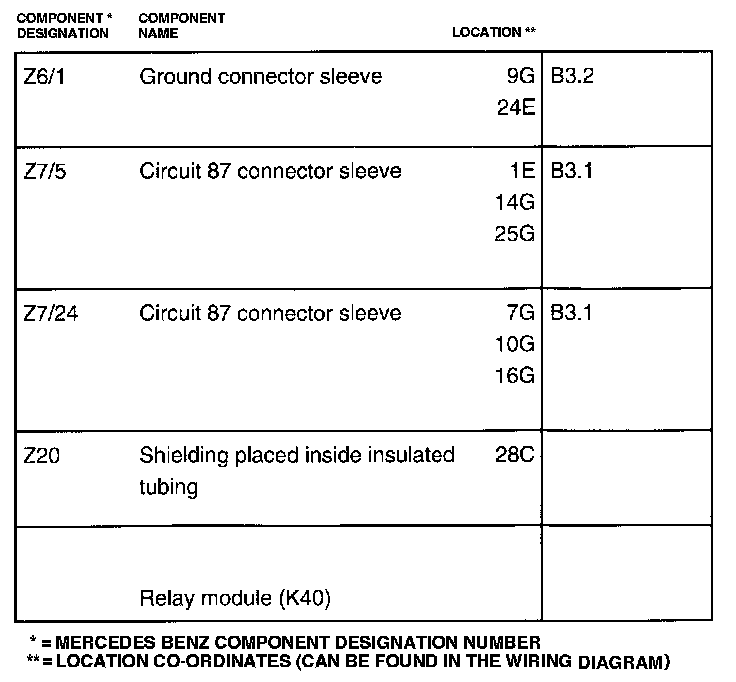

Z6/1 - Z20:
Pin-Out Testing - Component: N3/10 - Engine Control Module
Connector N - Pin 3 Through E - Pin 29:
Connector E - Pin 30 Through F - Pin 12:
Connector F - Pin 13 Through F - Pin 21:
Connector Views:
