Datalink Connector/Diagnostic Socket PE54.22-U-2000J (As of 12/1/98)
Data Link Connector From Dec 1, 1998

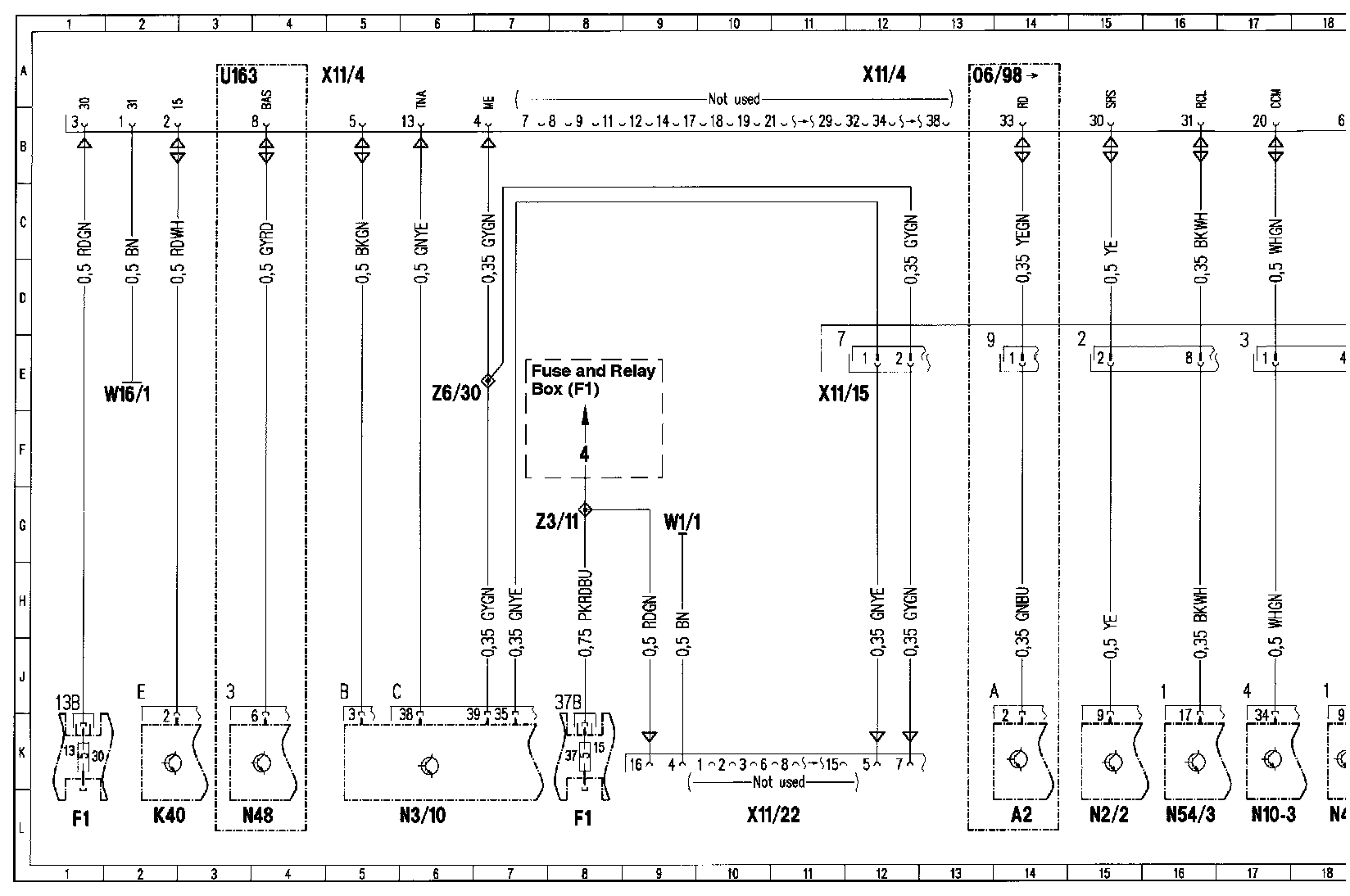

Wiring Diagram
�9:

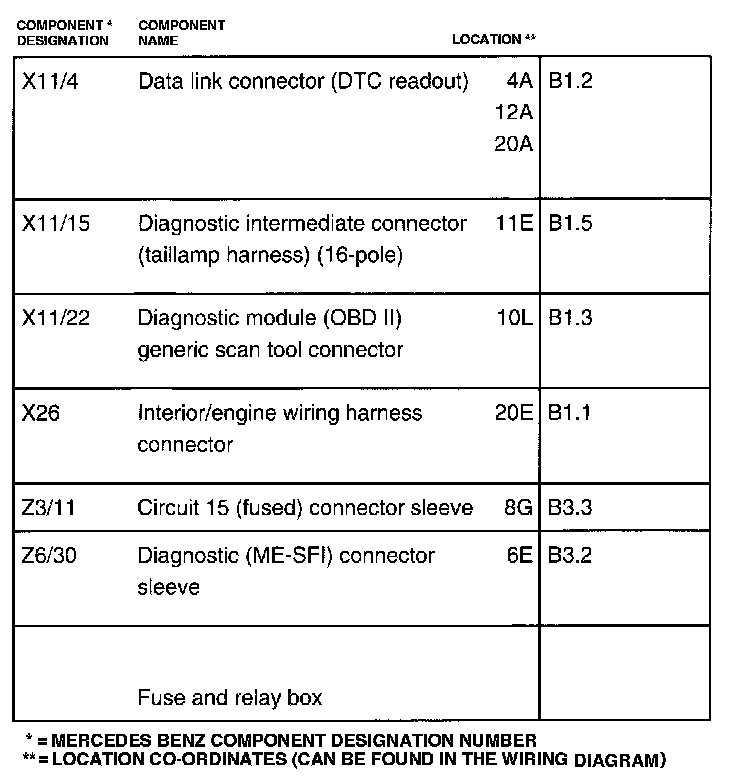

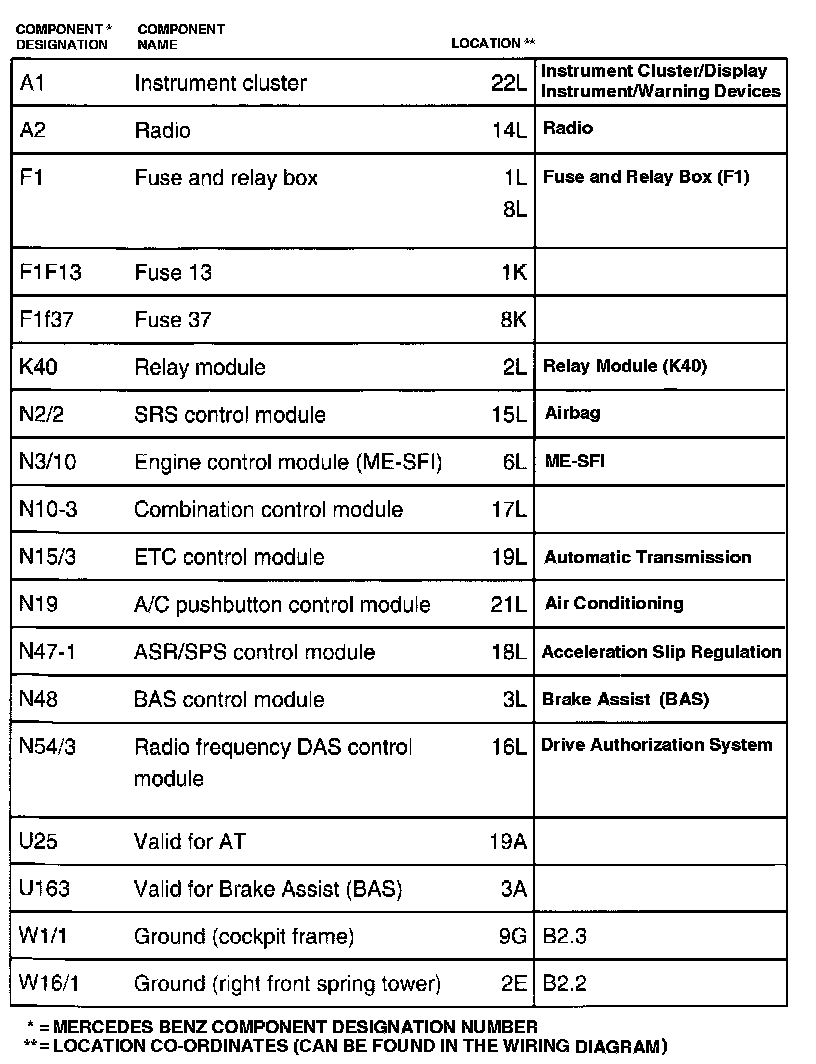

Component Grid Location
A1 - W16/1:
X11/4 - Z6/30:
Pin-Out Testing - Component: X11/4
Connector X11 - Pin 4 Through Pin 16:
NOTE 1: Refer to Powertrain Management, Computers and Control Systems, System Diagnosis.

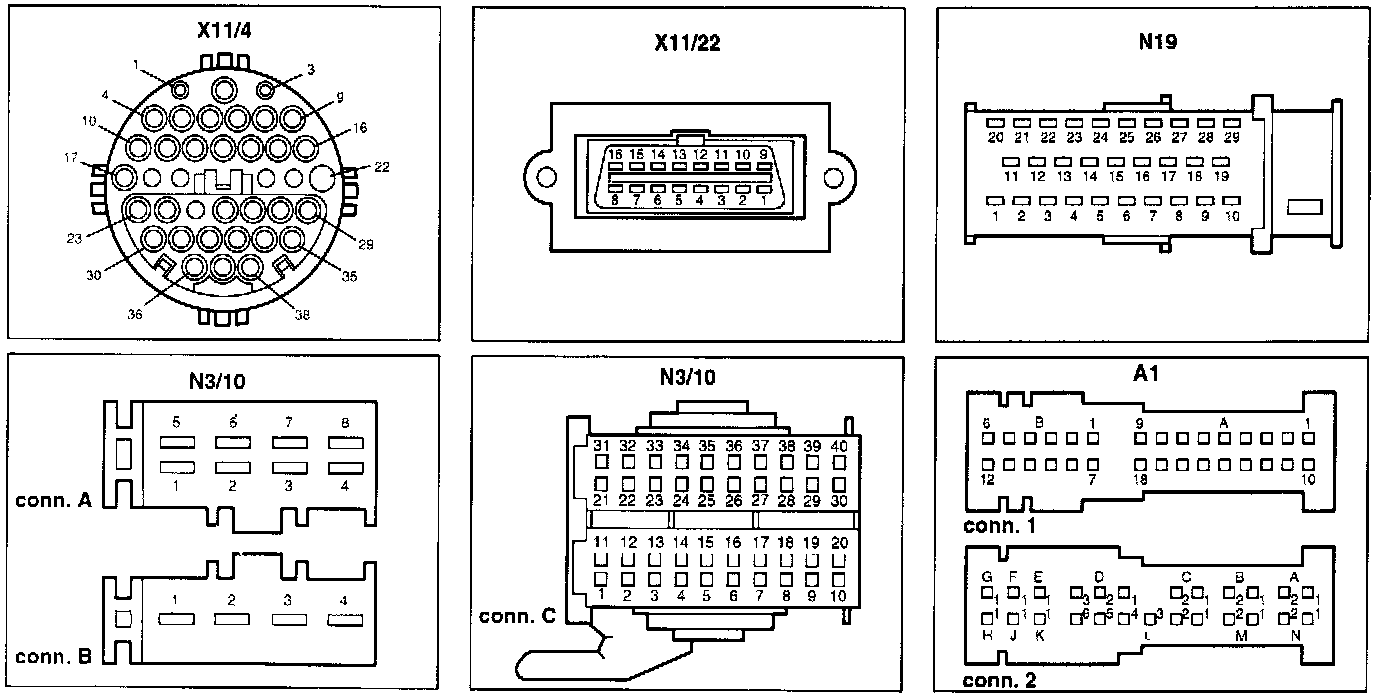

Connector Views:
