Datalink Connector/Diagnostic Socket PE54.22-U-2000B (Up to 11/30/98)
Data Link Connector Up to Nov 30, 1998

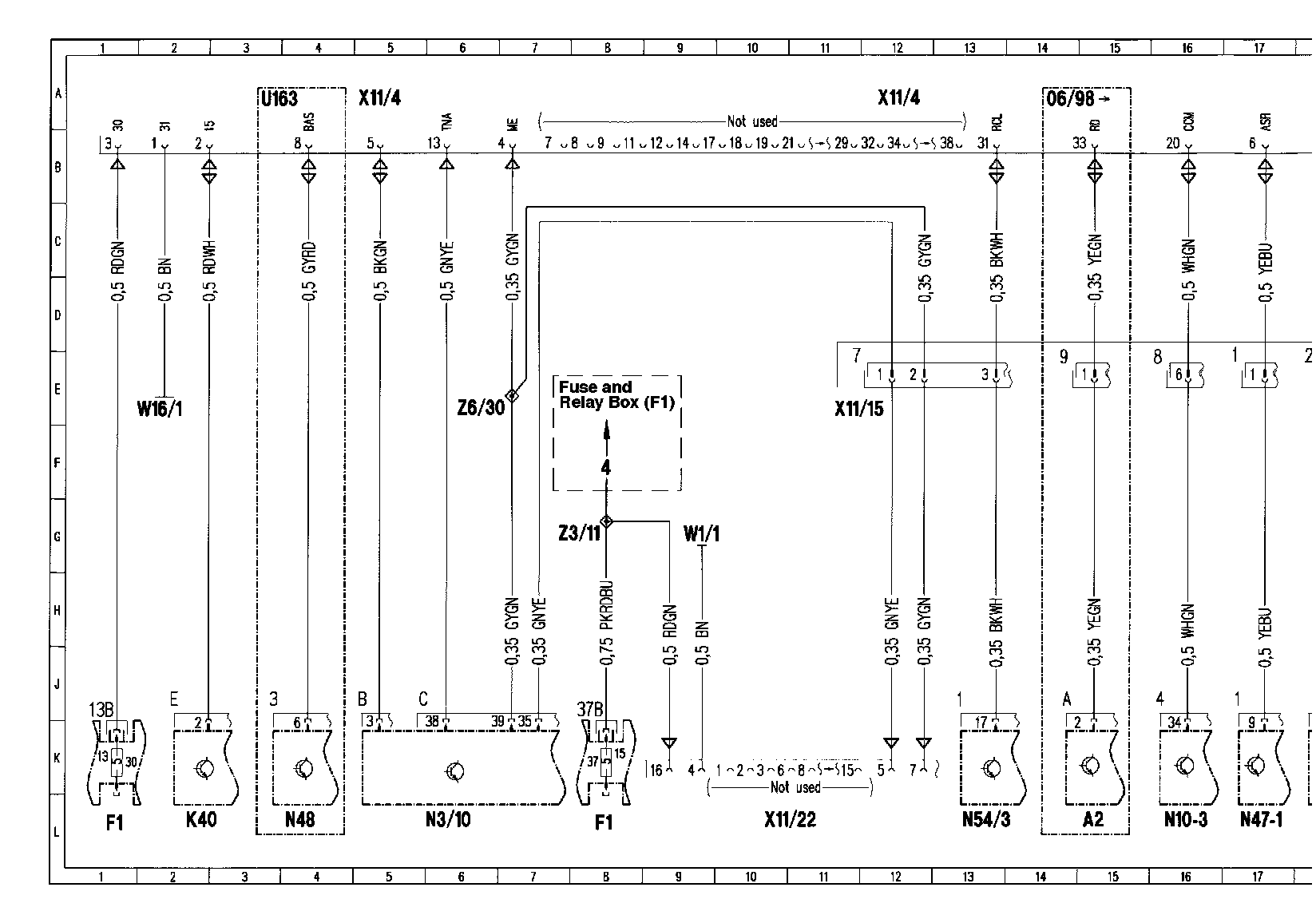

Wiring Diagram
�8:

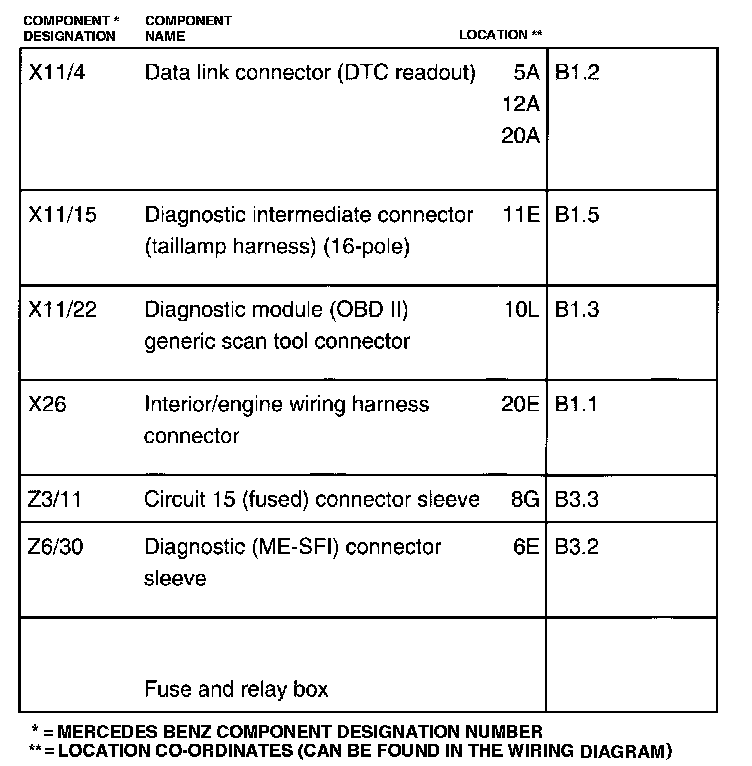

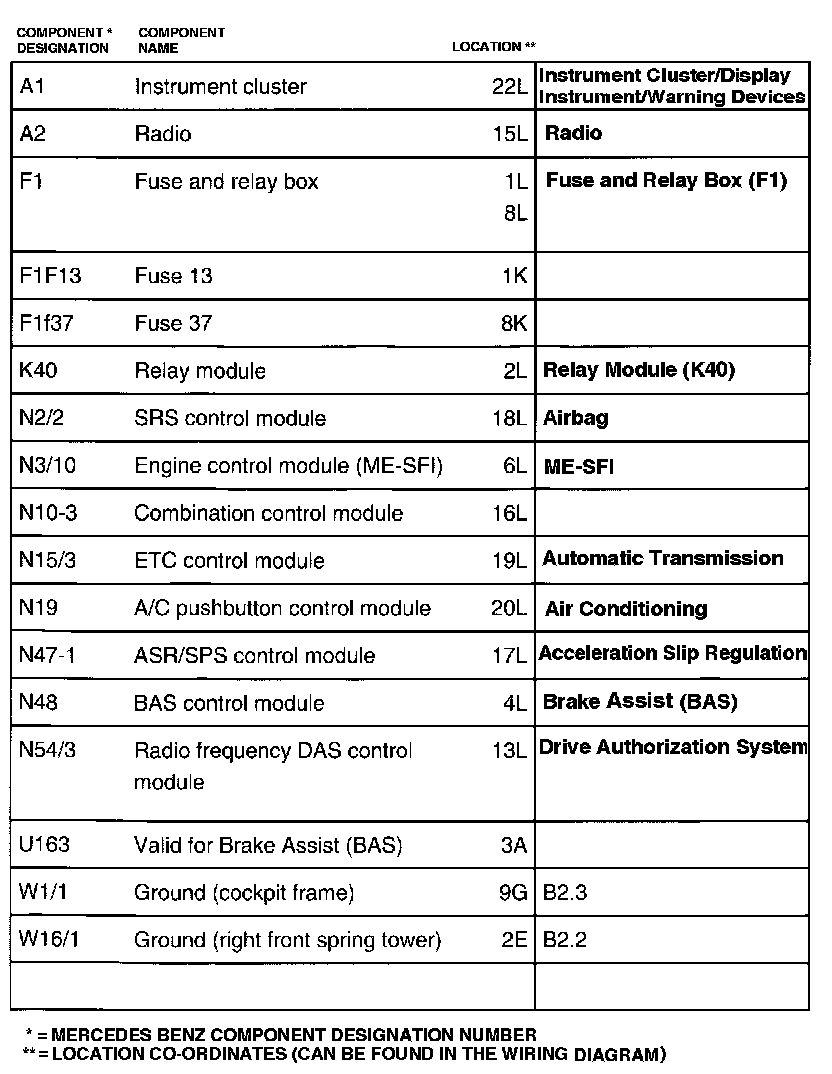

Component Grid Location
A1 - W16/1:
X11/4 - Z6/30:

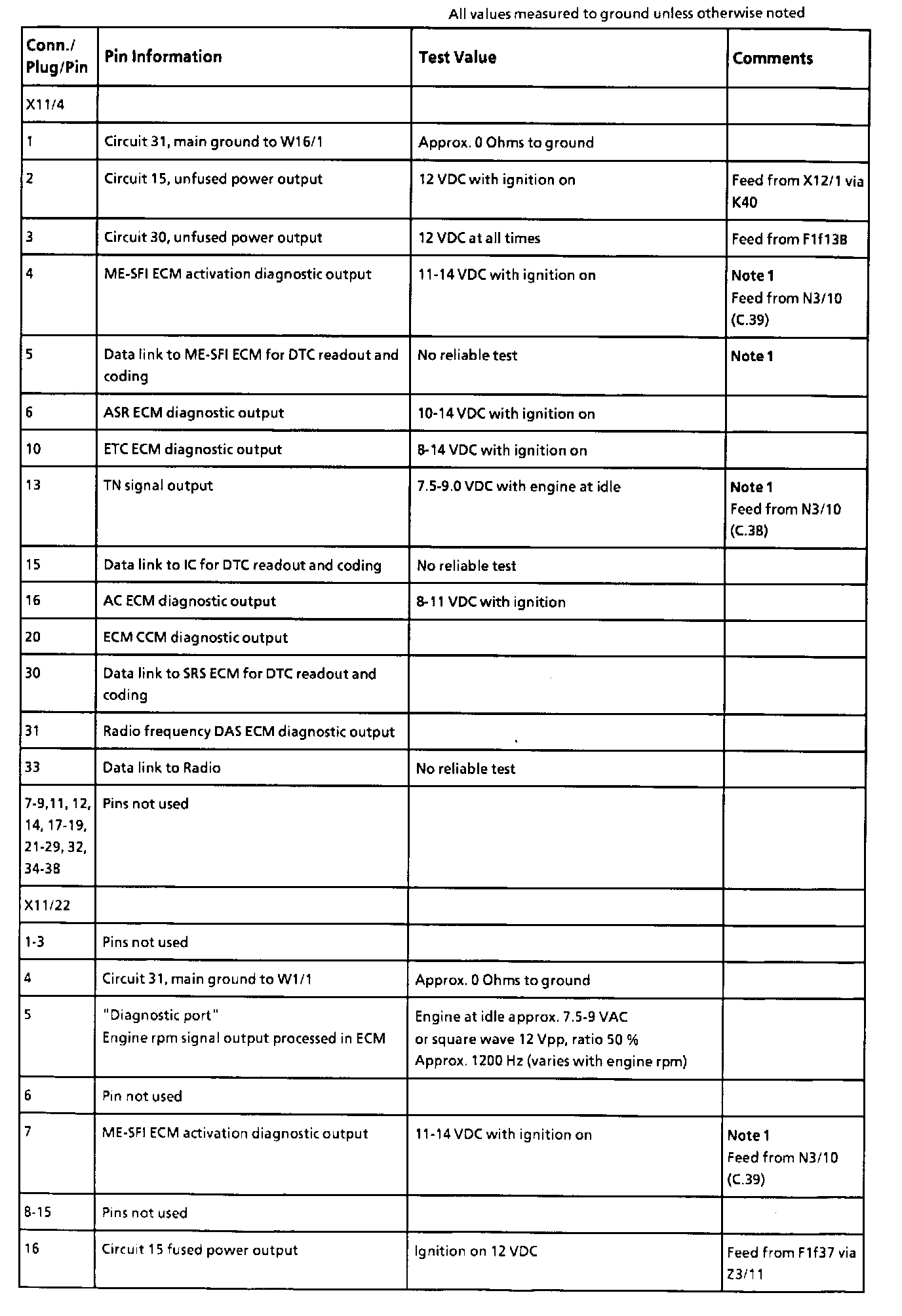

Pin-Out Testing - Component: X11/4
Connector X11 - Pin 4 Through Pin 16 (Part 1 Of 2):
NOTE 1: Refer to Powertrain Management, Computers and Control Systems, System Diagnosis.

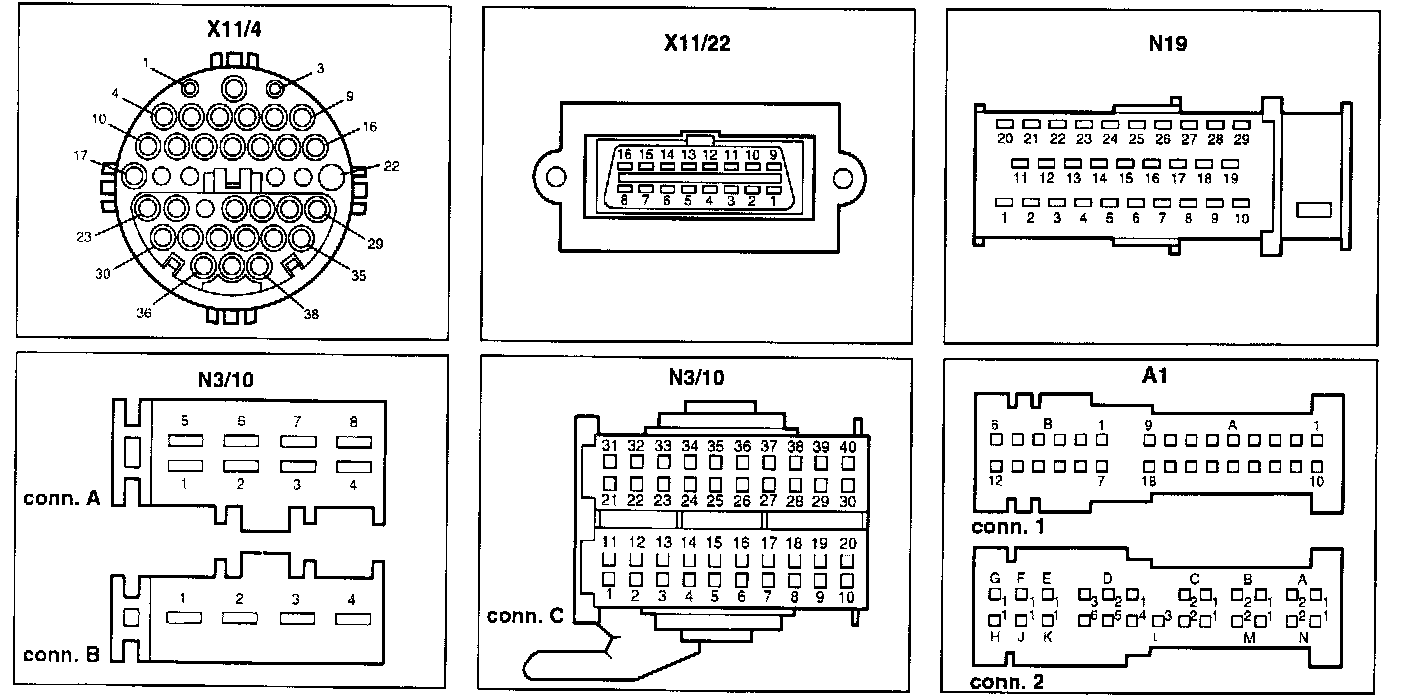

Connector Views:
