X62/23 - ASR VSS Sensor Status Connector

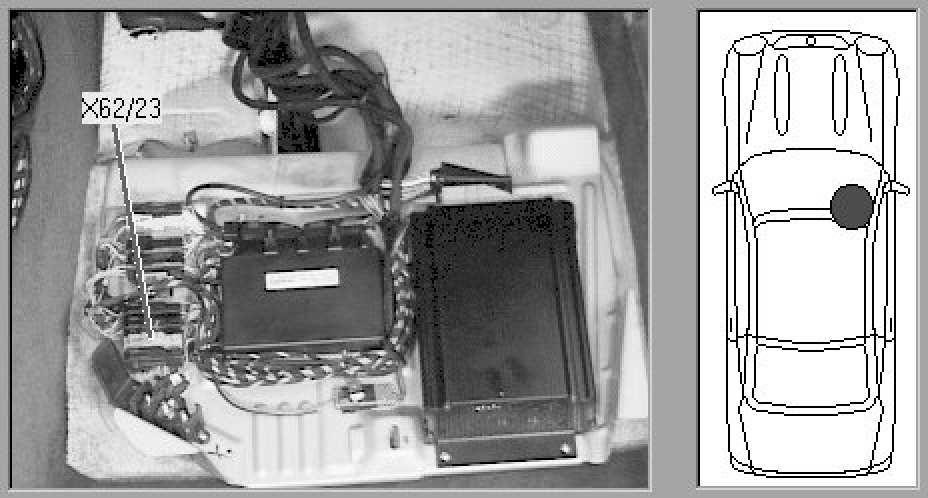

On plate at front of passengers footwell. Plate shown folded outward
