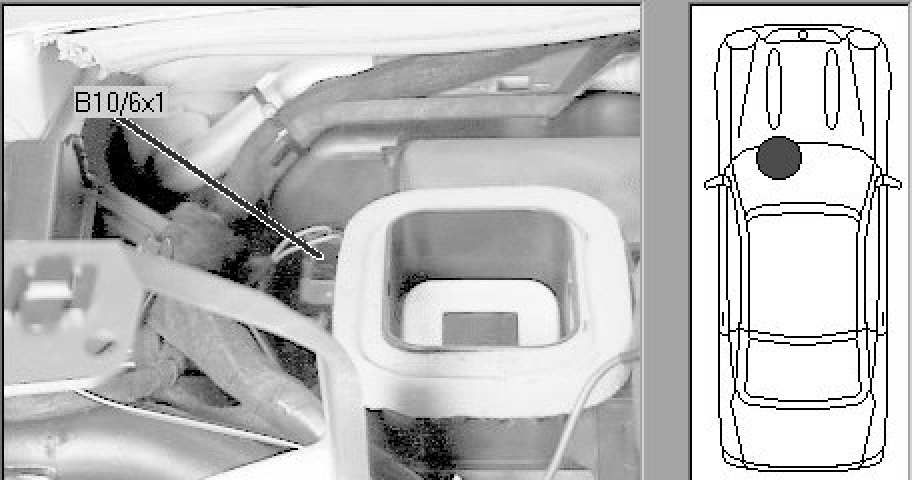

B10/6x1 - Evaporator Temp. Sensor Connector








Left side of center console, on left of heater box, deep against firewall
