SLK 230 (170.447) L4-2.3L SC (111.973)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Splash Guard
>>
Service and Repair
Splash Guard: Service and Repair
AR61.20-P-1105A Detach/Attach Lower Engine Compartment Paneling

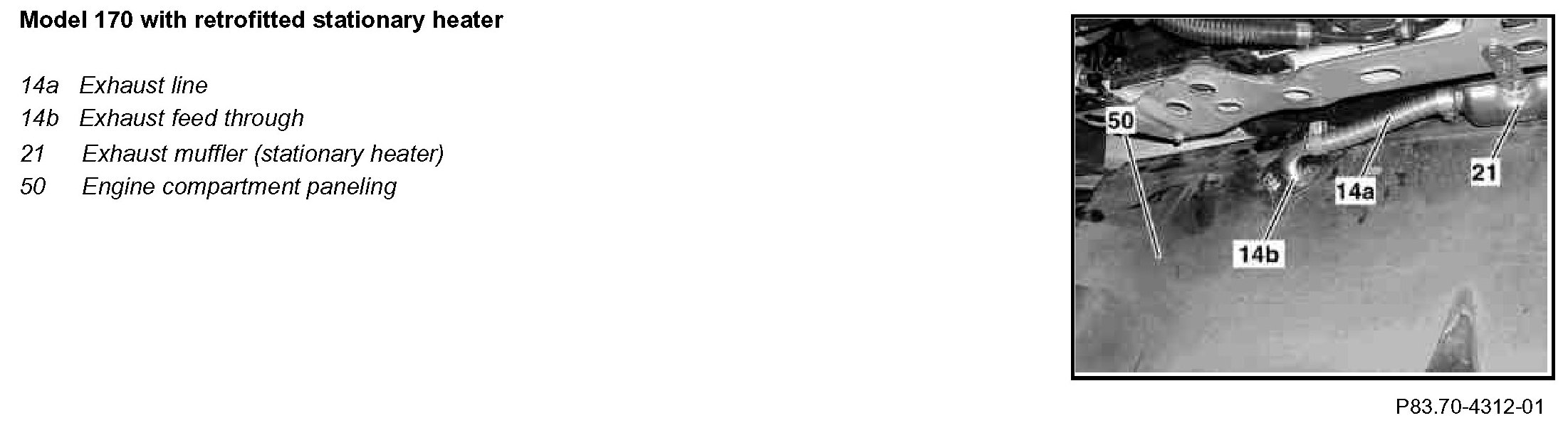

Component Identification:

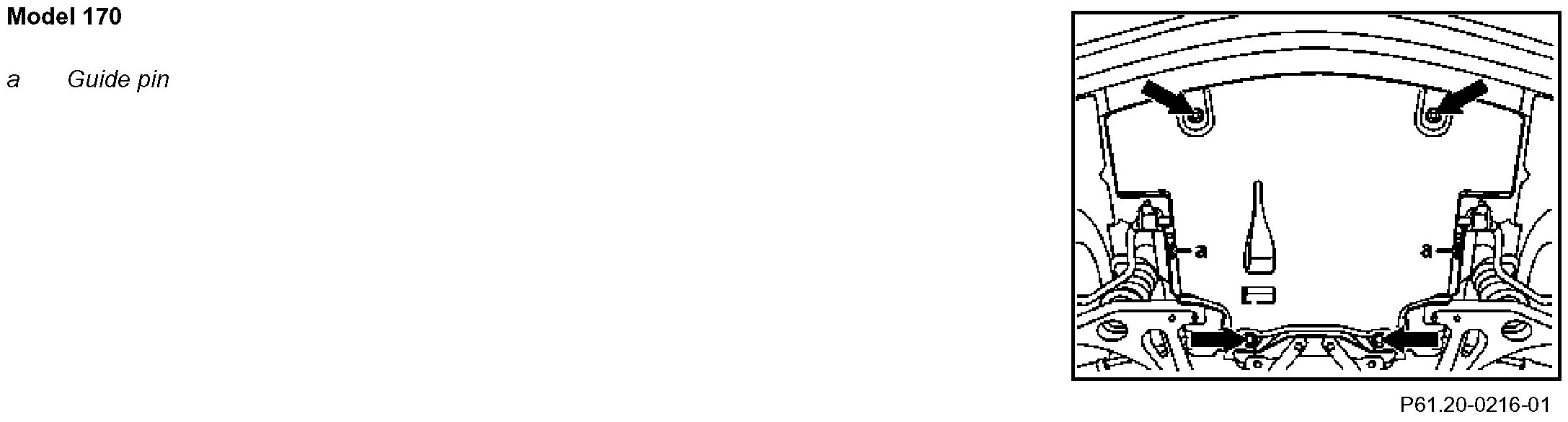

Component Identification:

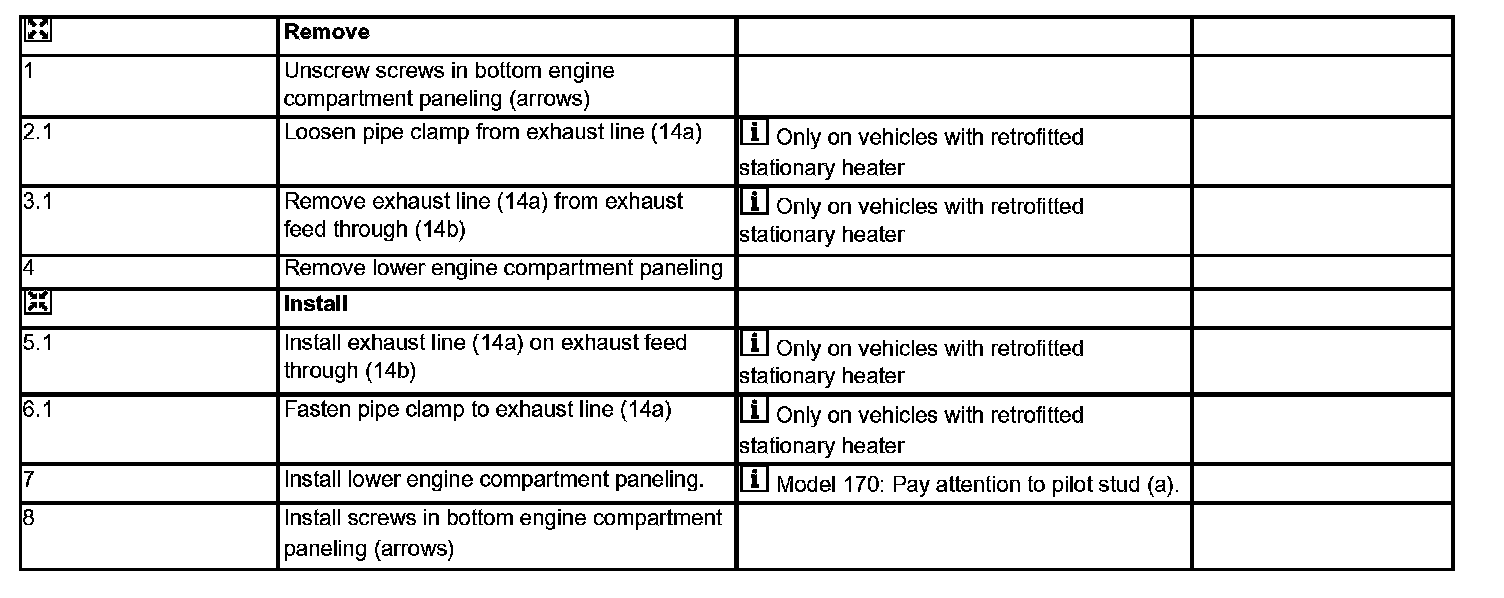

Steps 1 - 8:
