Convertible Top Latch Actuator: Locations









Location

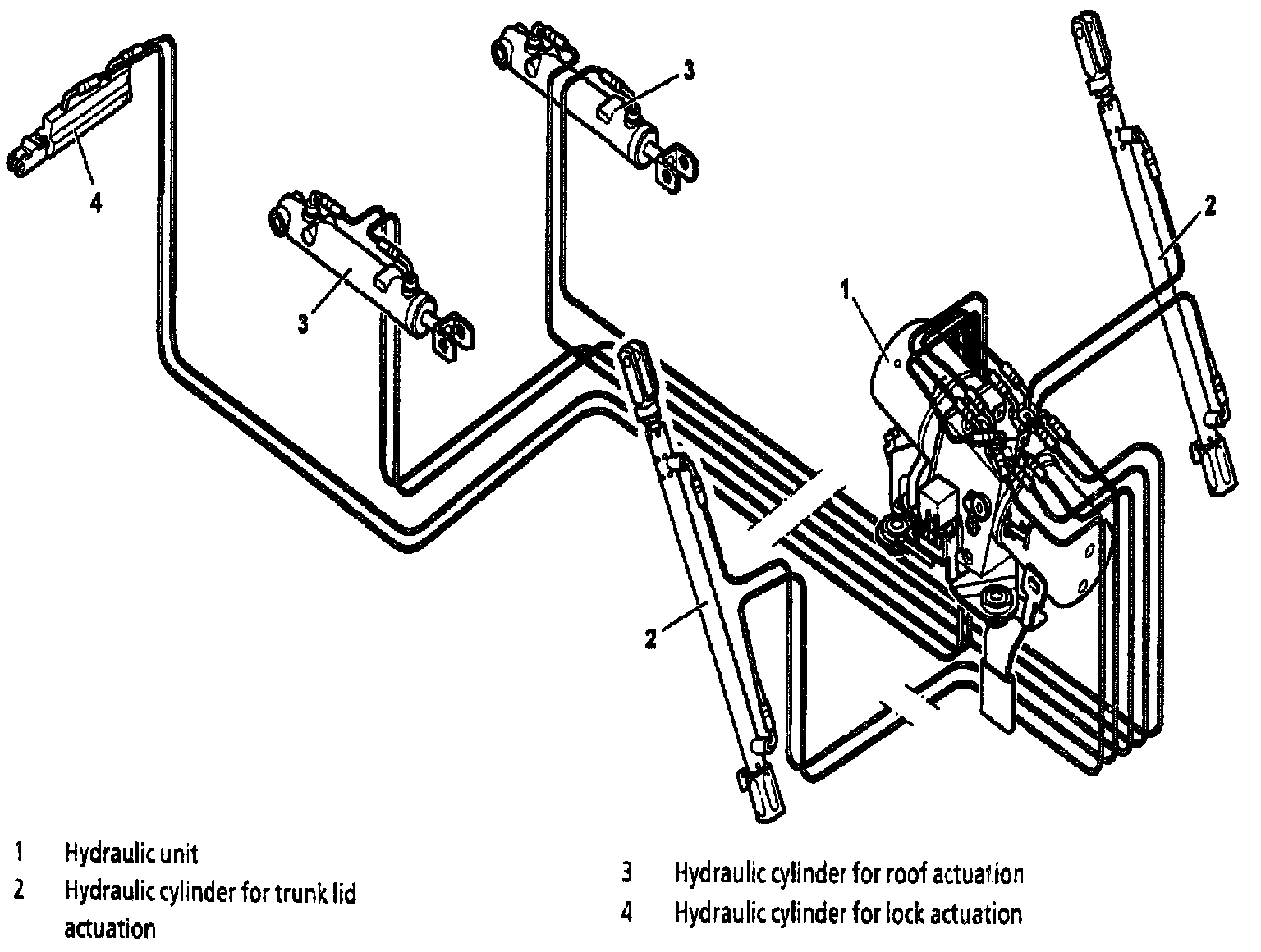

The hydraulic unit and the hydraulic cylinders for actuating the trunk lid are located in the trunk. The hydraulic cylinders for actuating the roof and the hydraulic cylinder for actuating the lock are located in the Vario roof.
