AR32.20-P-0200A Remove/Install Front Spring

AR32.20-P-0200A Remove/Install Front Spring






WARNING:
Risk of injury from being trapped or crushed when working on preloaded springs or spring bodies. Use only approved clamping devices and if appropriate also screen off the danger area. Check special tools for damage and function, (visual inspection). Wear safety gloves.

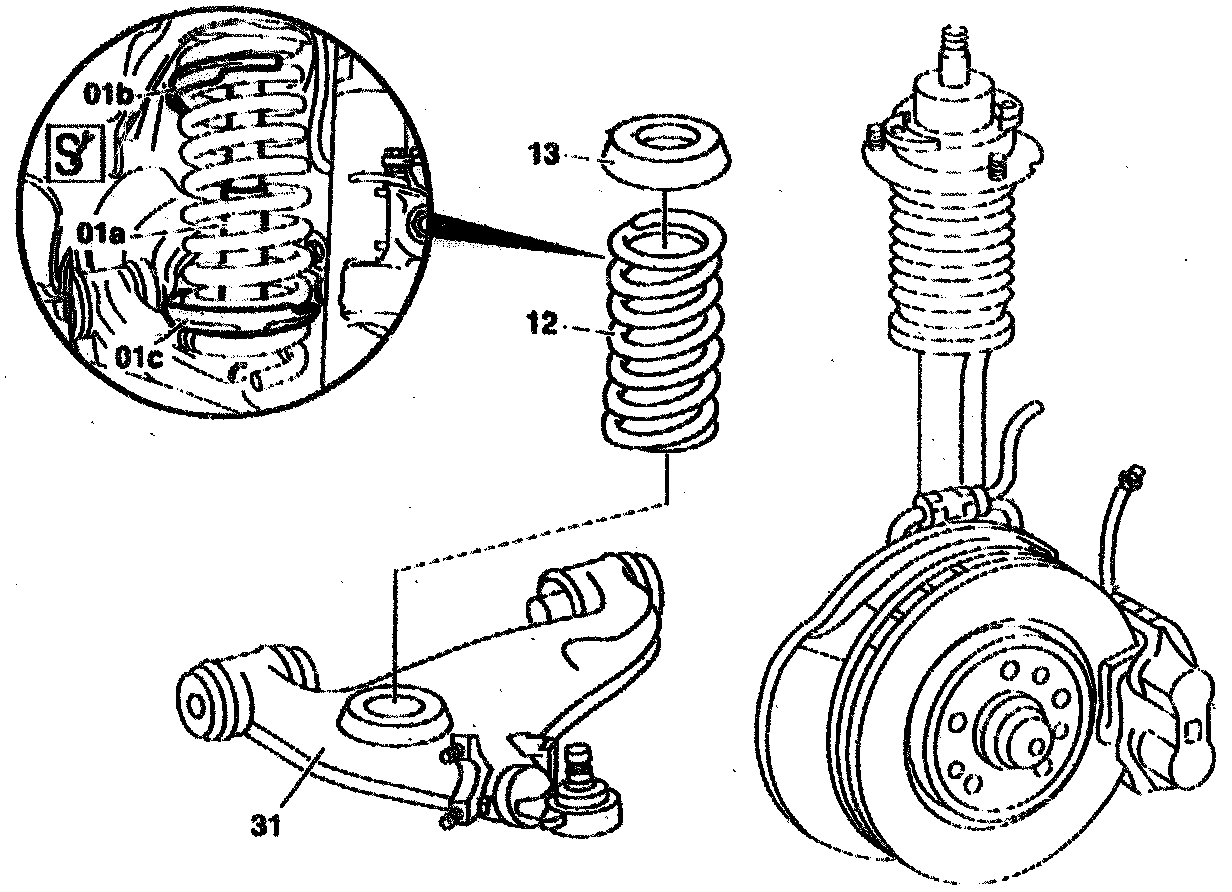

1. Insert clamping plates (01b, 01c) and clamping device (01a).


2. Clamp front spring

3. Remove front spring (12) with rubber mount (13) to the front
Clean wishbone (31) in area of the supporting surface.
After replacing the front spring or the rubber mount, check and correct headlamp adjustment.

4. Install in reverse sequence.

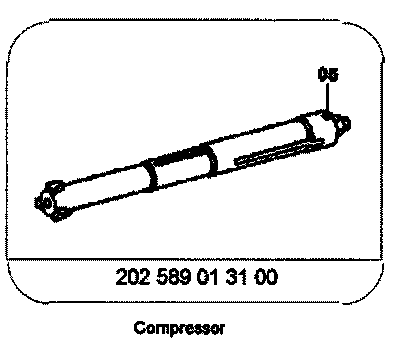

Special tools
