Adaptive Damping System (ADS II)
>>
Hydraulic Test Program
>>
Vehicle Level Test - Section 37
Vehicle Level Test - Section 37

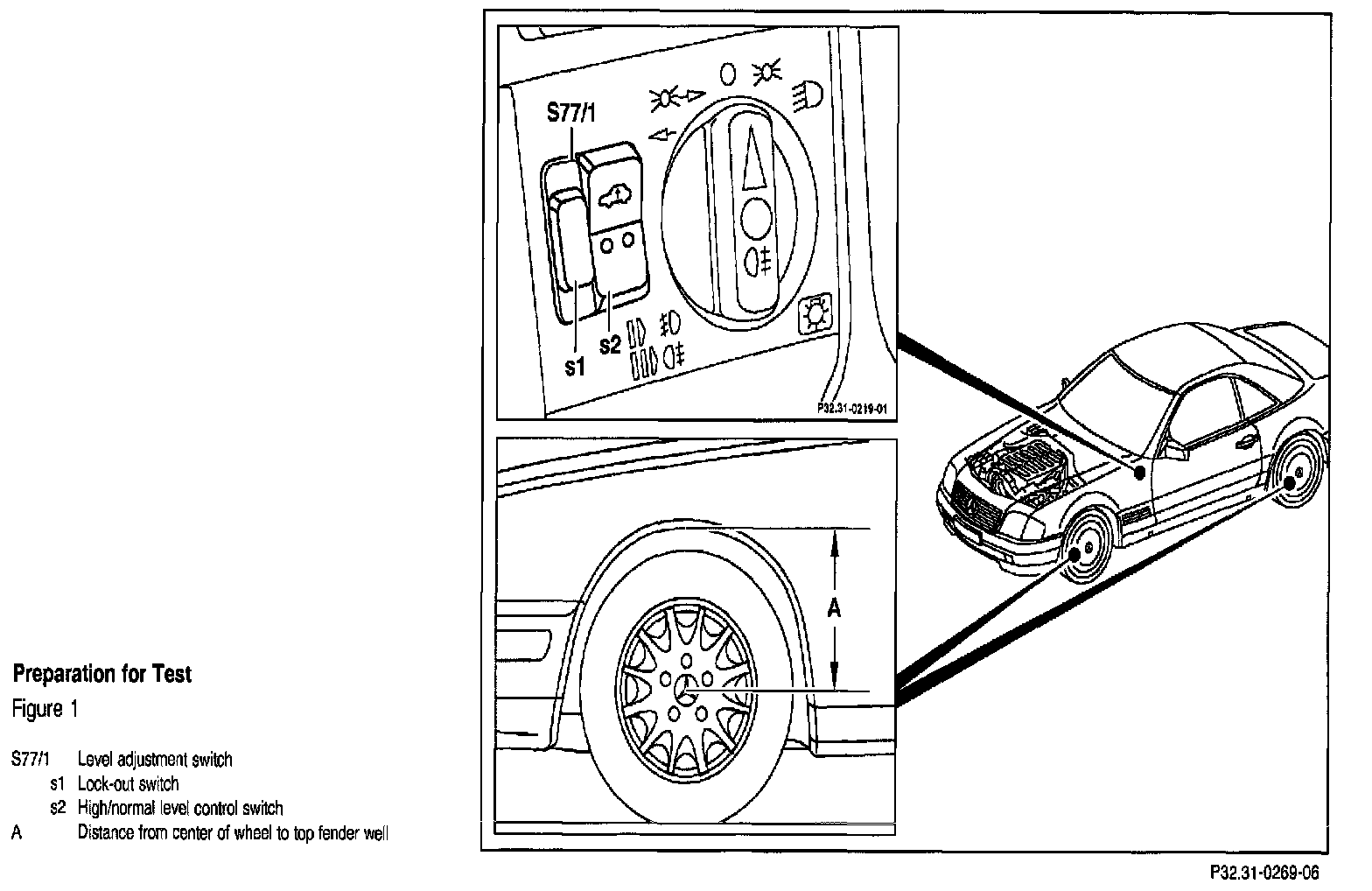

Figure 1:
Preparation for Test
1.
Check oil level in oil reservoir, correct if necessary.
NOTE:
Set vehicle level to normal.

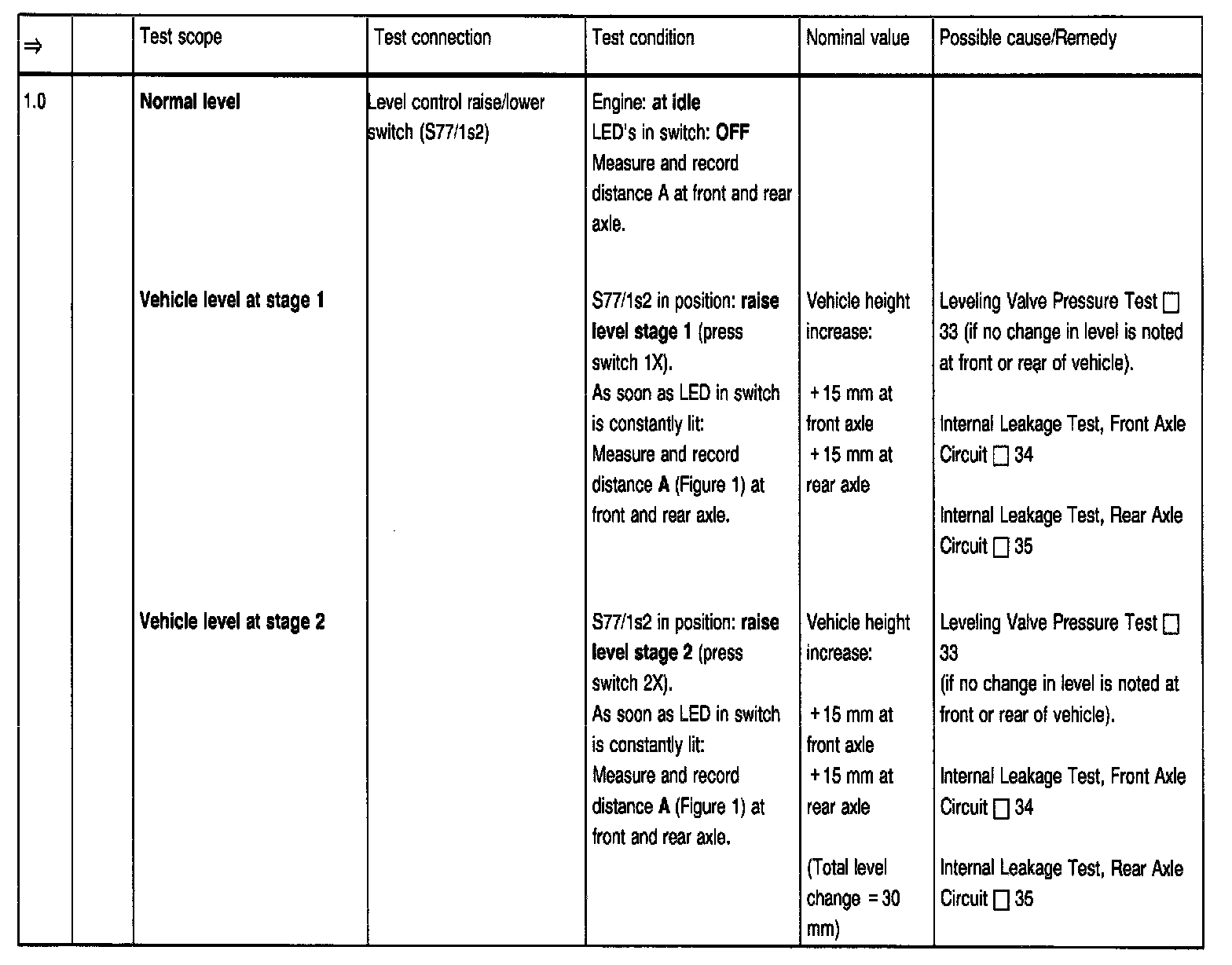

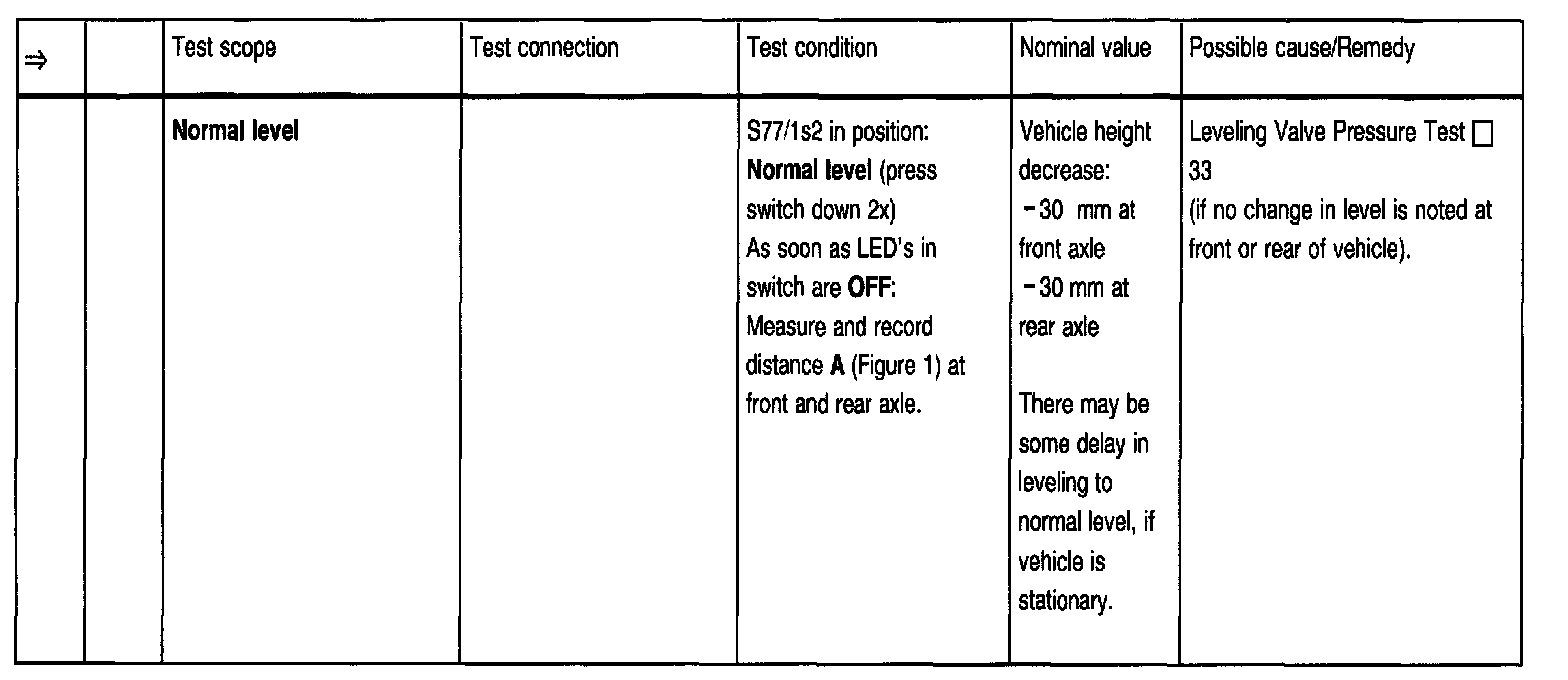

Step 1.0:
