Home >> Mercedes Benz >> 1999 >> SL 500 (129.068) V8-5.0L (113.961) >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Suspension Control ( Automatic - Electronic ) >> Testing and Inspection >> Adaptive Damping System (ADS II) >> Electrical Test Program >> Test - Section 23 >> Connector Layout

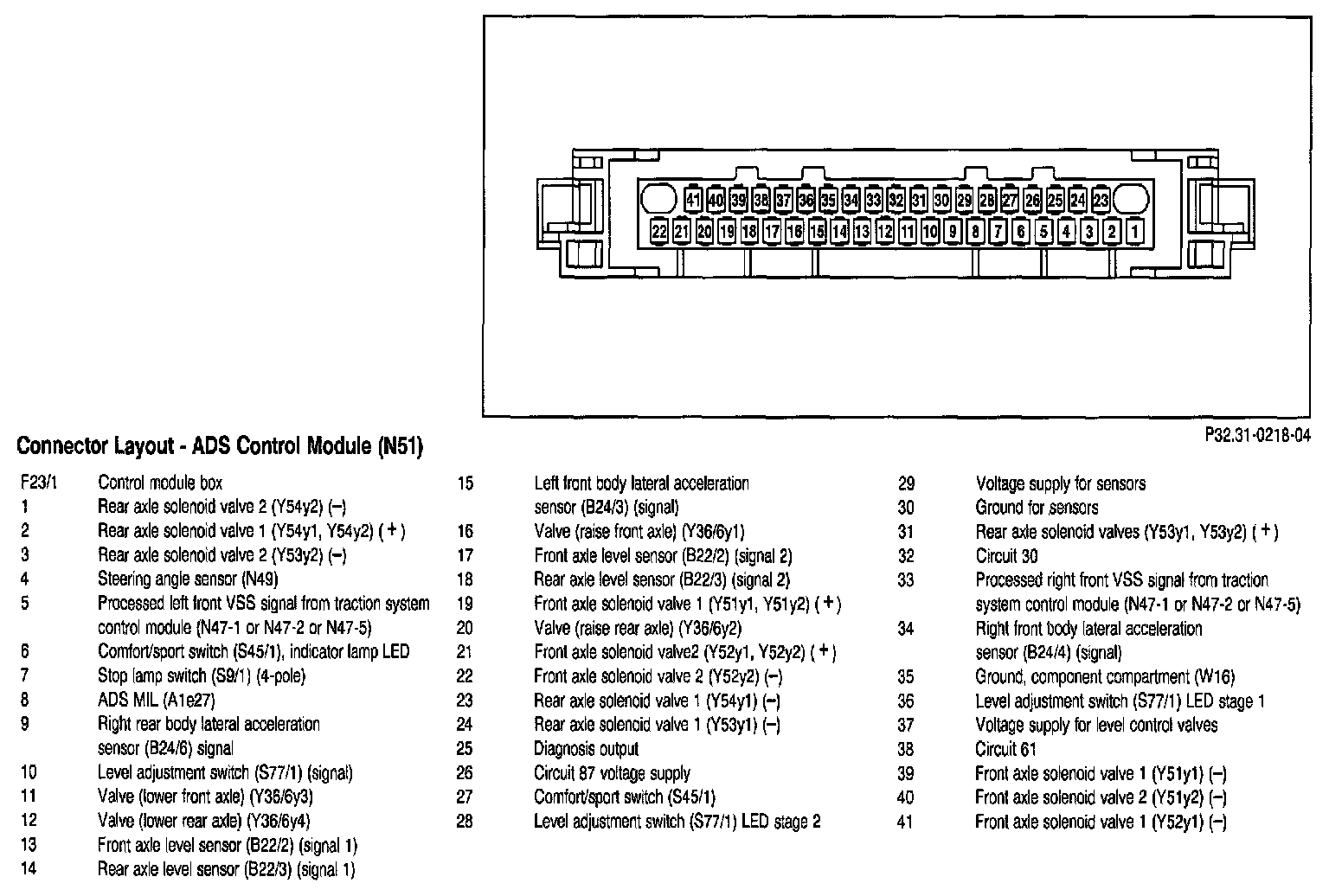

Connector Layout




F23/1 Control Module Box:
