Home >> Mercedes Benz >> 1999 >> SL 500 (129.068) V8-5.0L (113.961) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Lighting and Horns >> Combination Switch >> Service and Repair

Combination Switch: Service and Repair

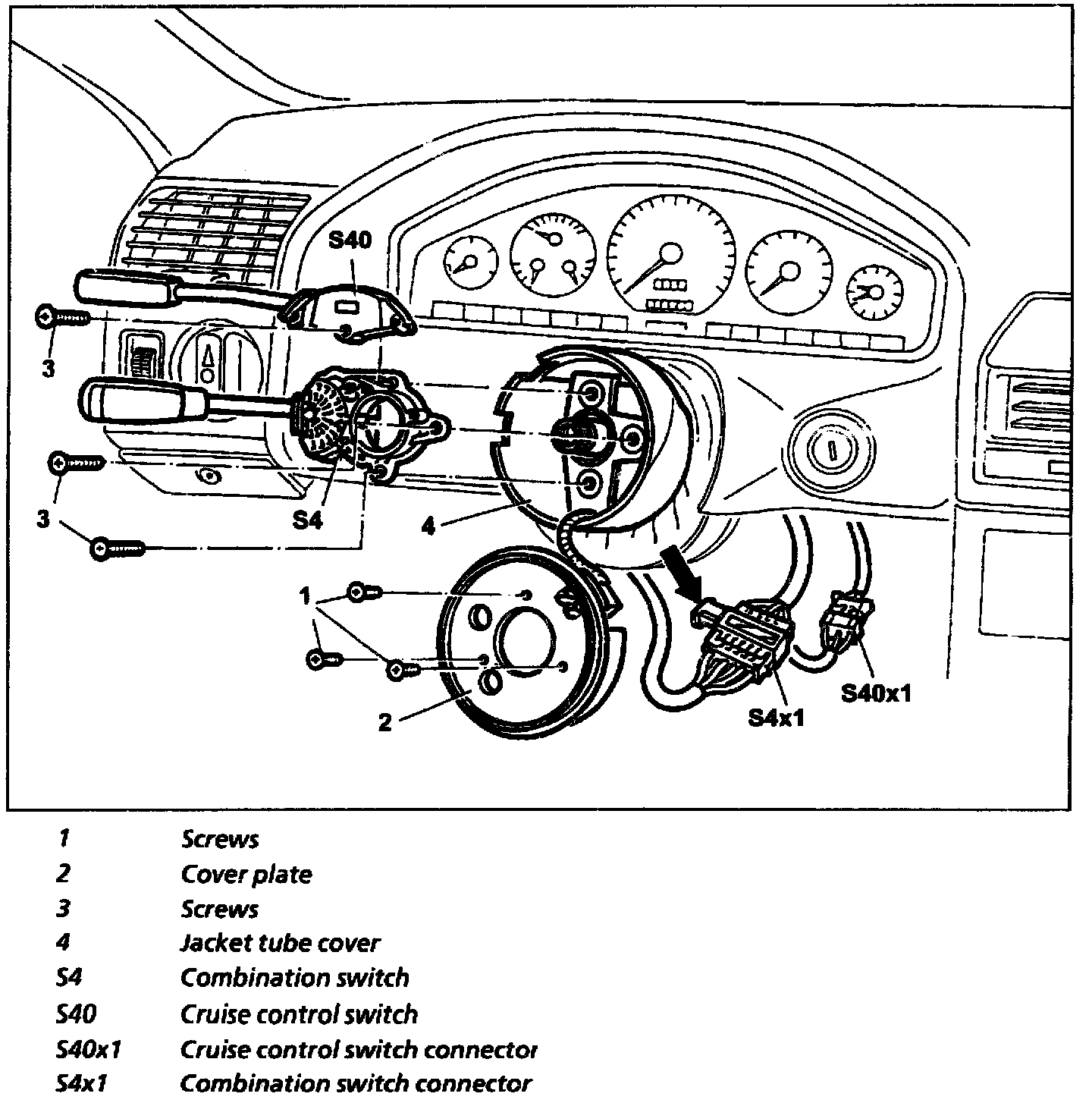

Component Identification

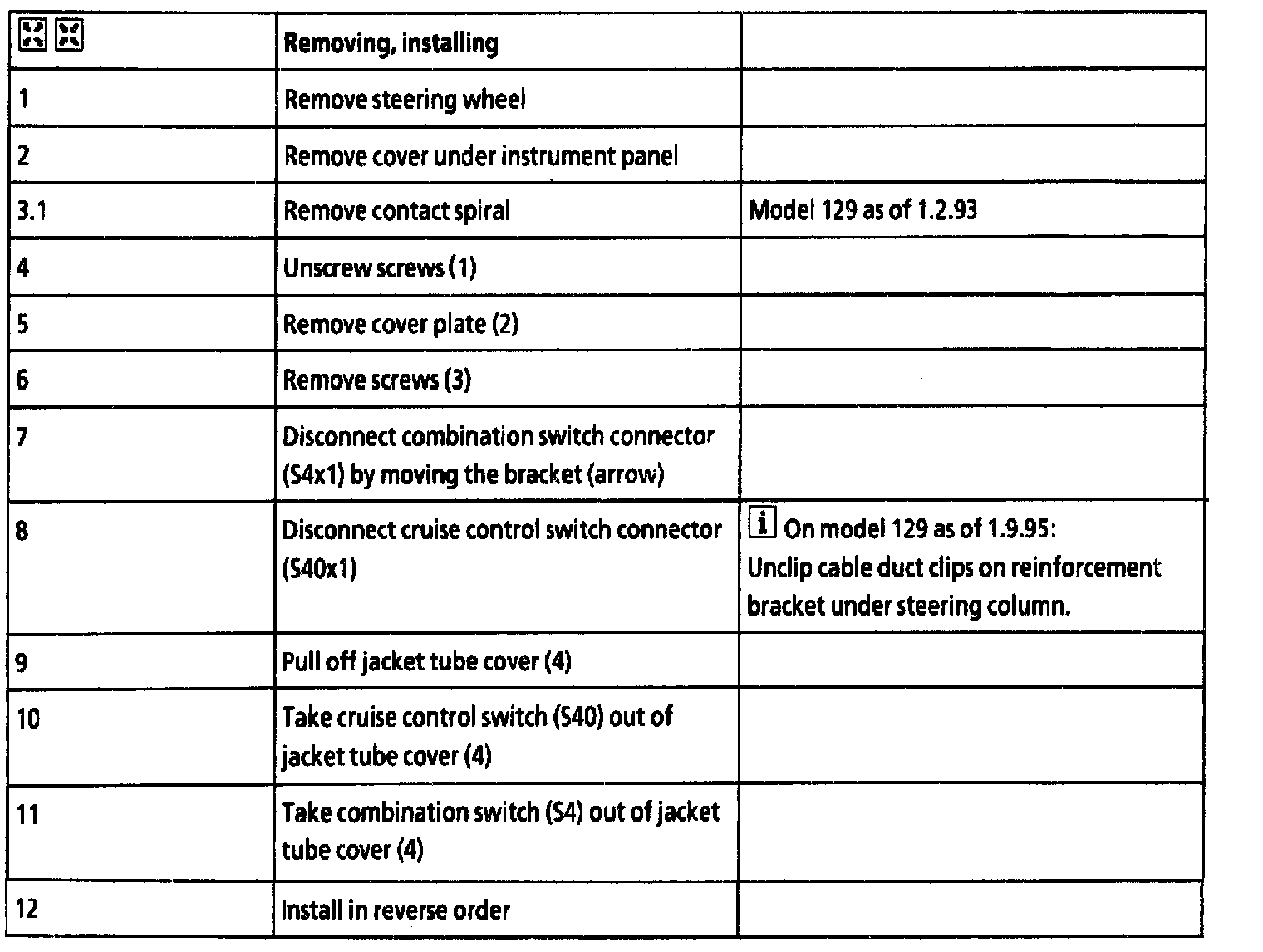

Removing, installing
