Evaporator Temperature Sensor / Switch: Service and Repair

Cover on bottom section below left of instrument panel
remove. Service and Repair

2-pin plug connection
disconnect.

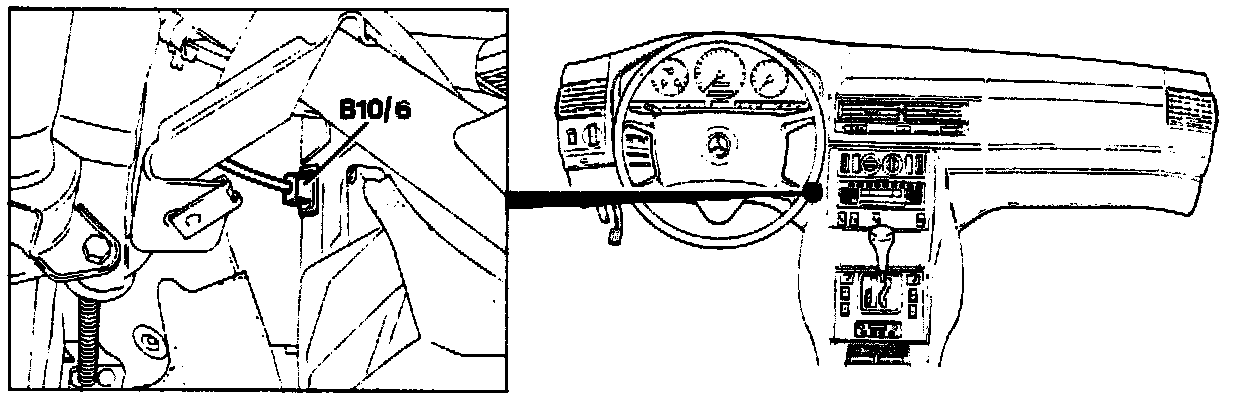

Evaporator temperature sensor (B10/6)
withdraw.

Temperature sensor
test, renew if necessary.

Install
in reverse order.
