Checking Pneumatic Headlamp Range Adjustment

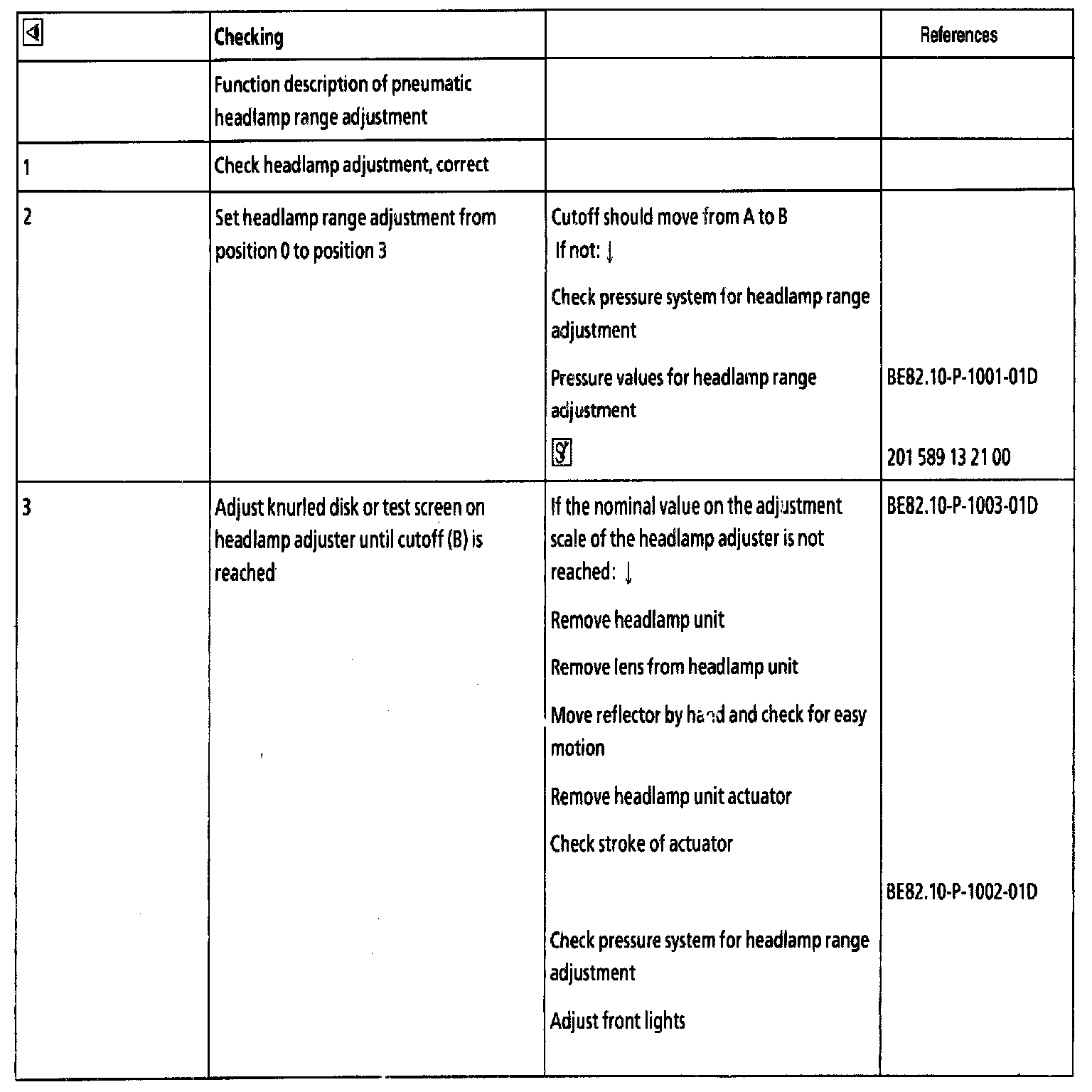

Checking

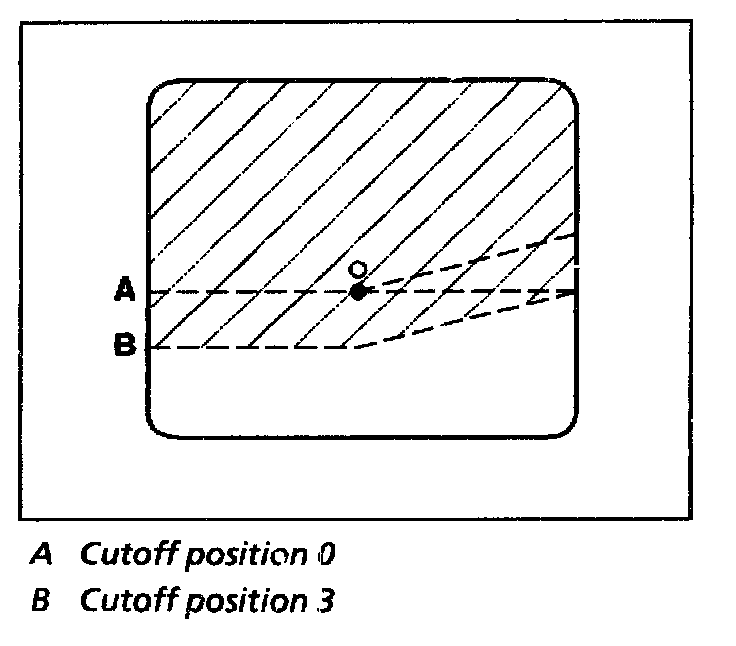

References (BE), Test values for exterior lighting

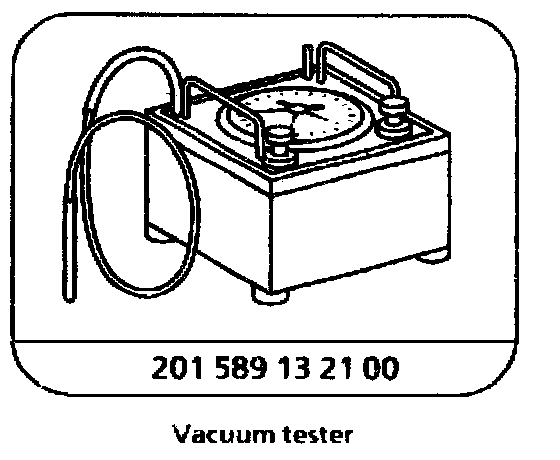

References, Special tool
