SL 500 (129.068) V8-5.0L (113.961)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Headlamp
>>
Service and Repair
>>
Remove/Install Headlamp Unit (Xenon)
Remove/Install Headlamp Unit (Xenon)

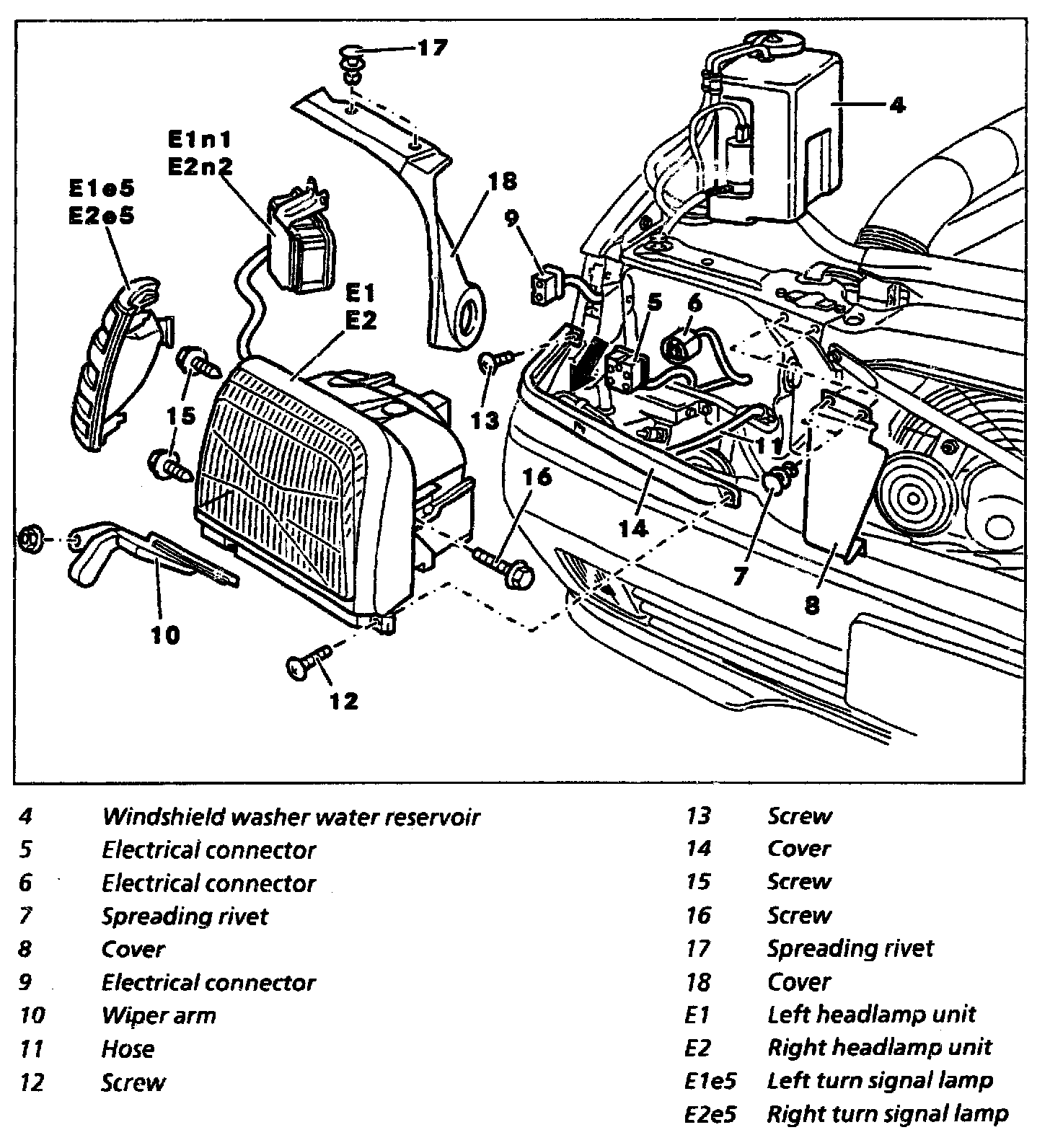

Component Identification, Part 1:

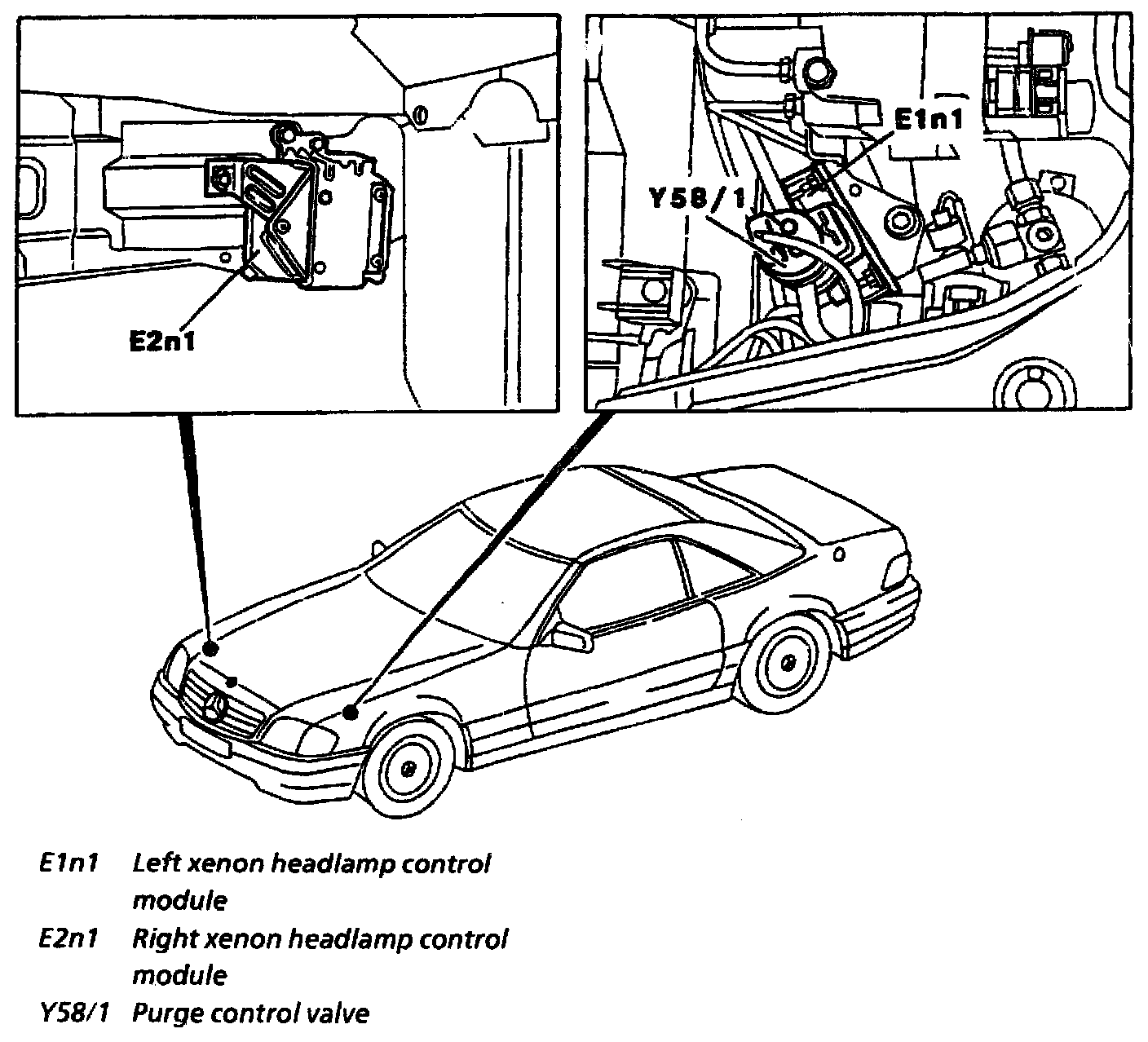

Component Identification, Part 2:

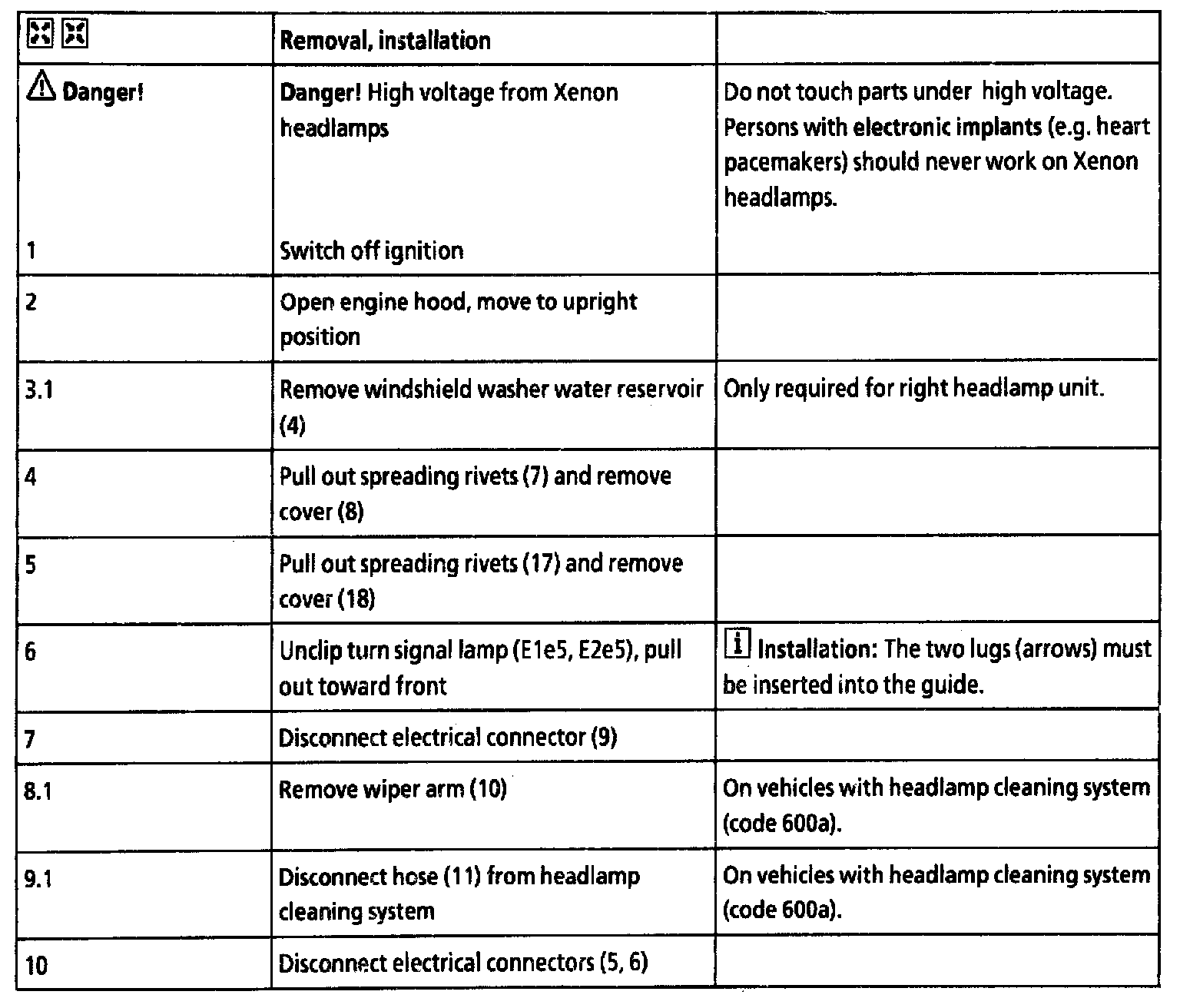

Removal/Installation, Part 1:

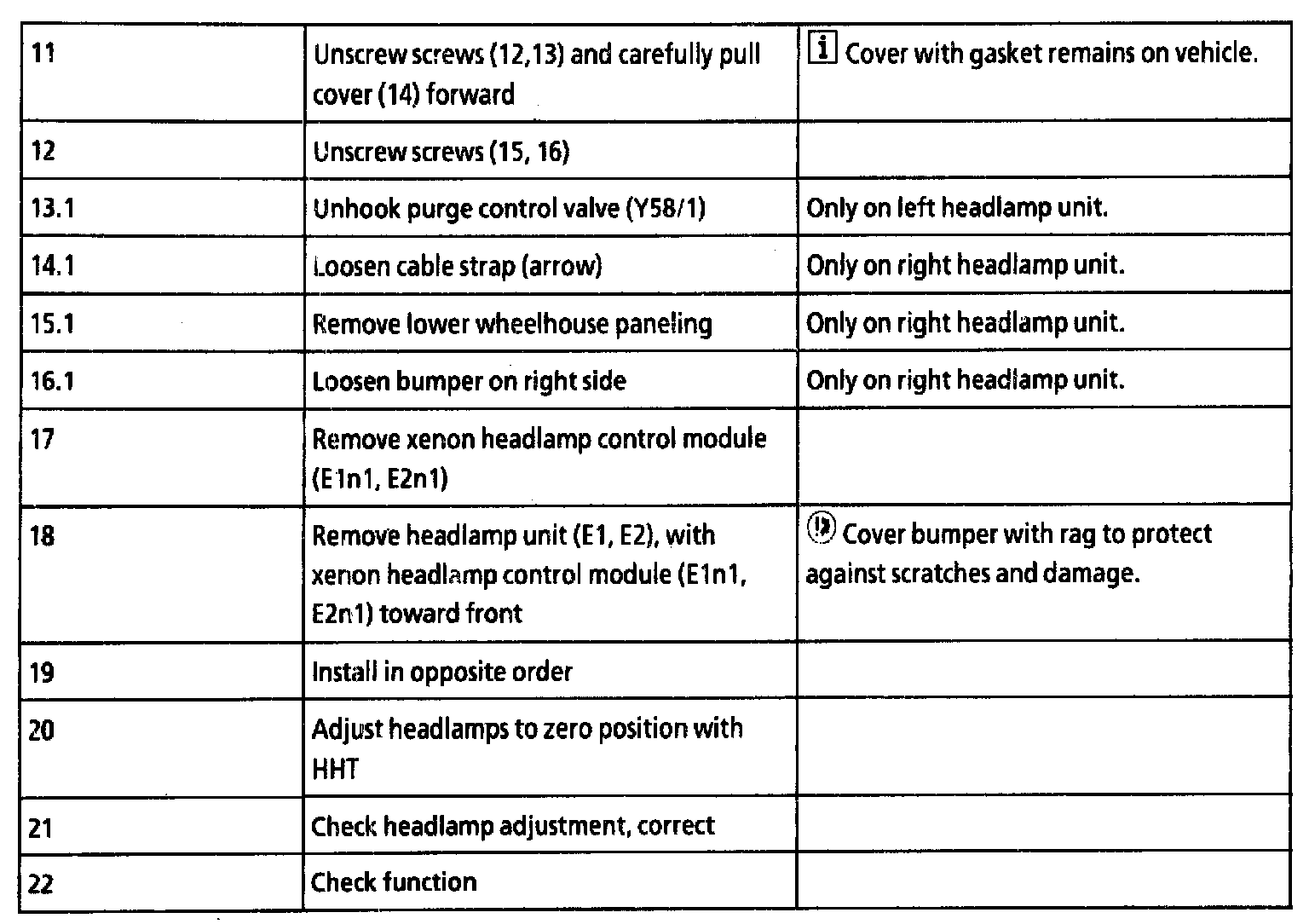

Removal/Installation, Part 2:
