Home
>>
Mercedes Benz
>>
1999
>>
SL 500 (129.068) V8-5.0L (113.961)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Component Tests
>>
Refrigeration System Test Program
>>
As of M.Y. 1997
As of M.Y. 1997
Air Conditioning (A/C)
Models 129 as of MY 1997

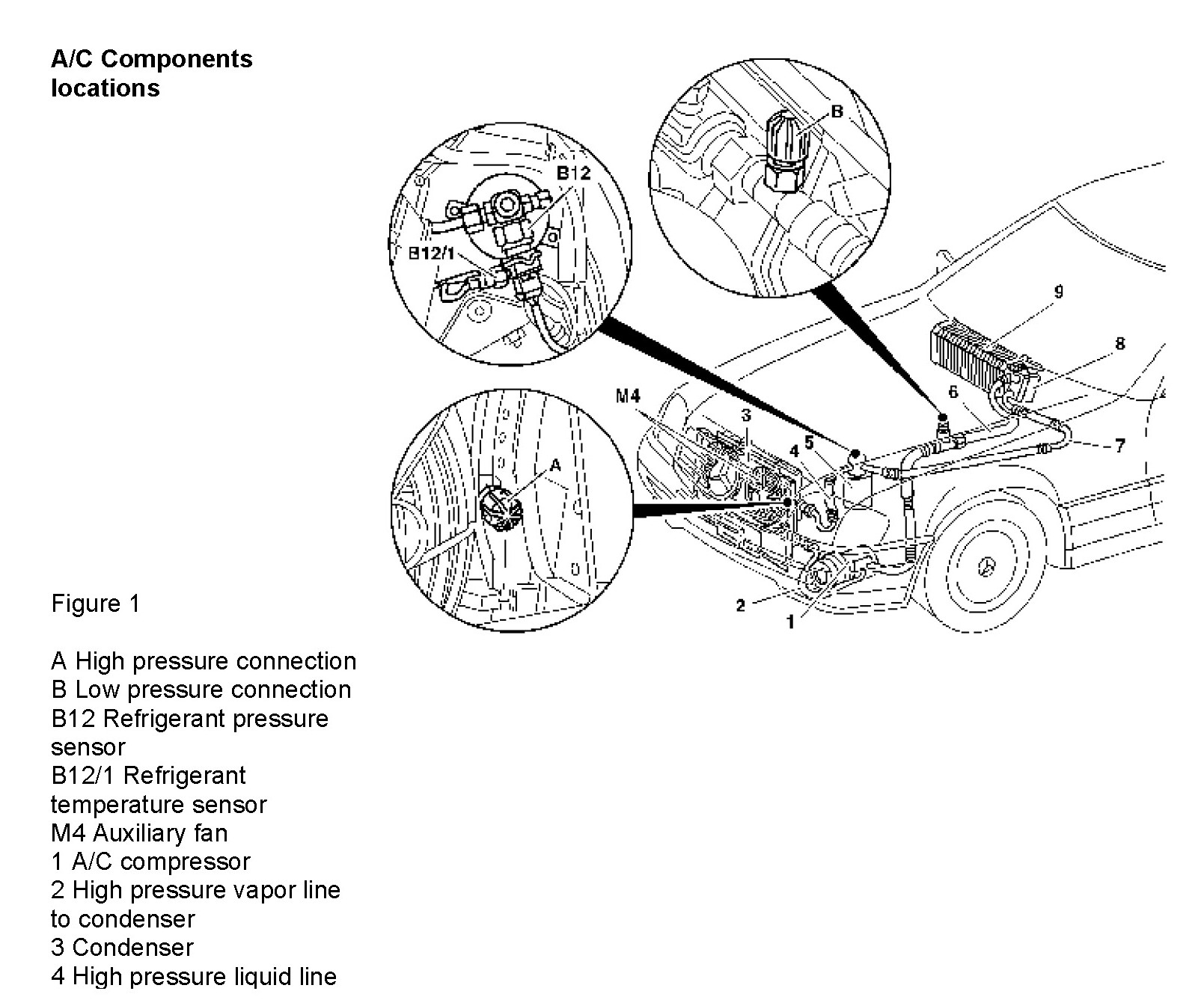

Refrigeration System Test Program - Component Locations
