Figures (See Ground Index for Application)

See ground Index to determine figure/component application.
Ground Index

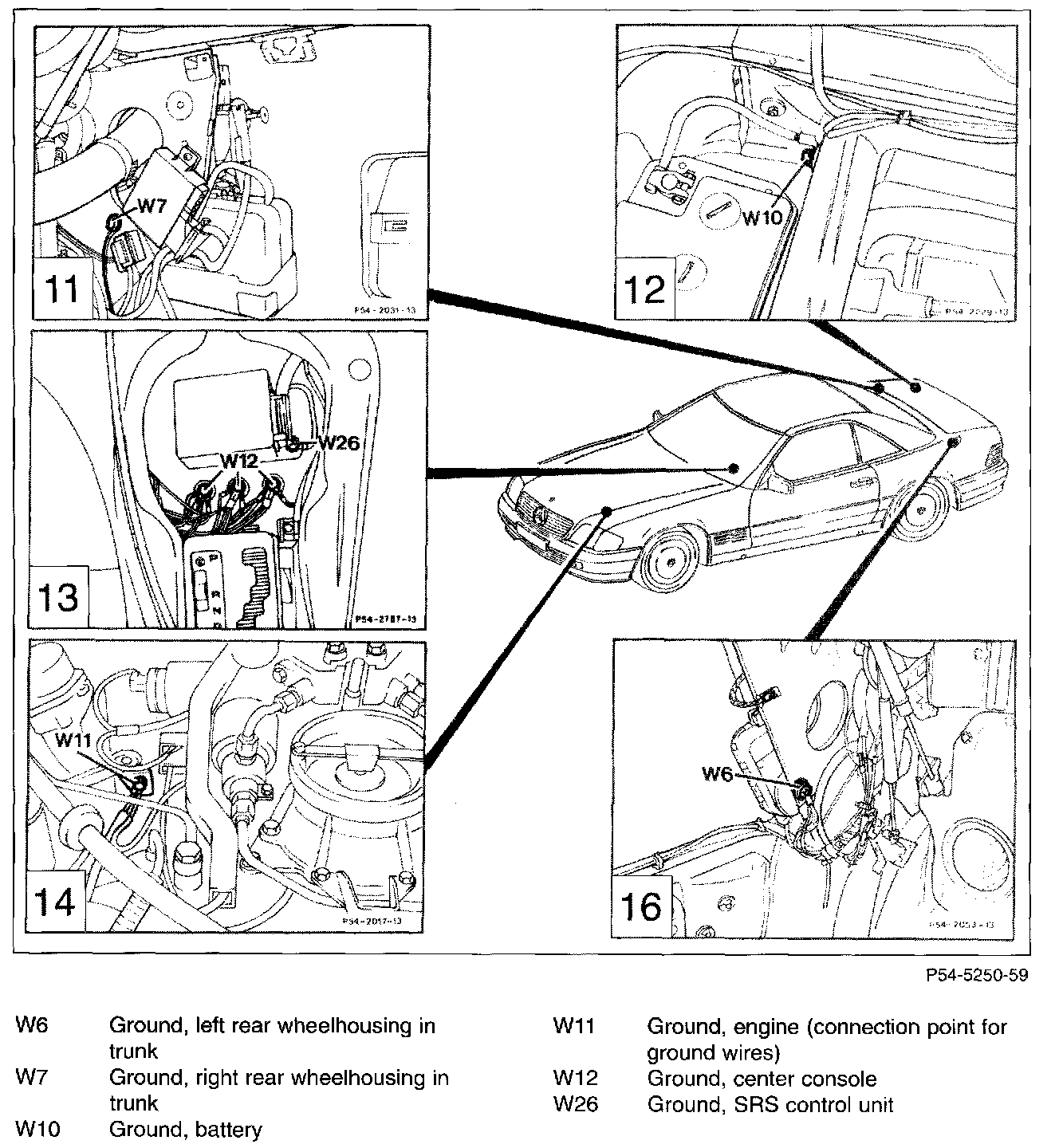

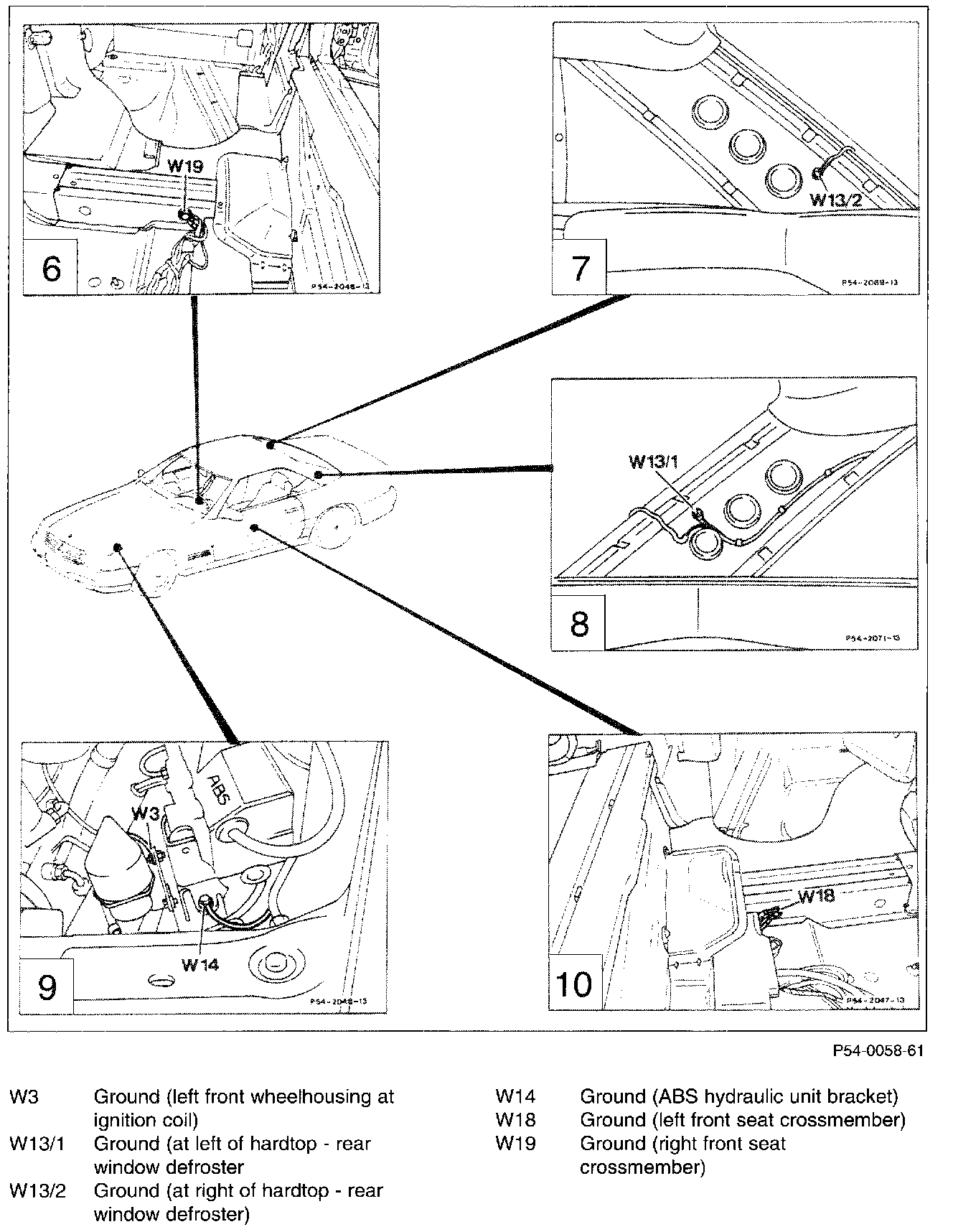

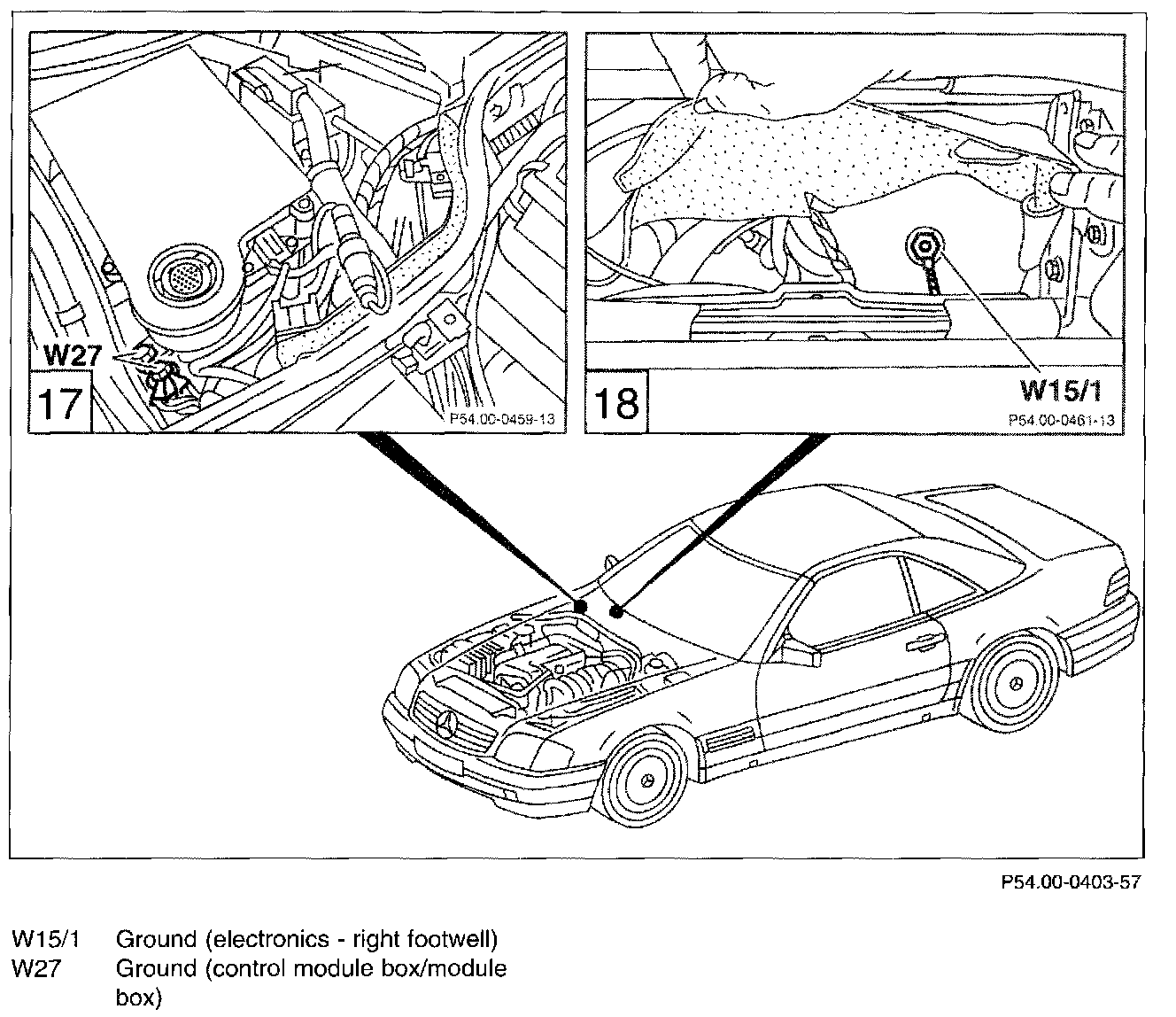

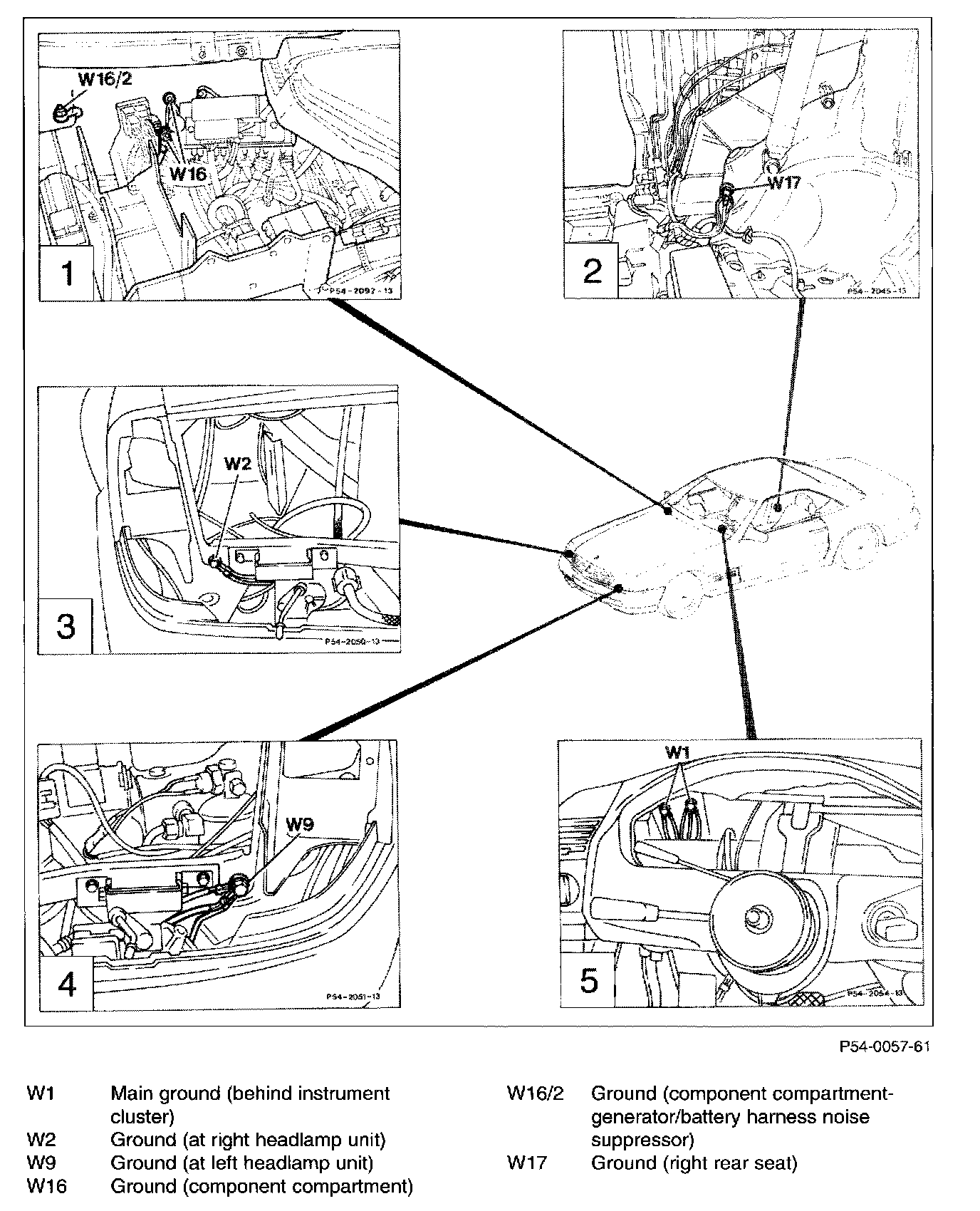

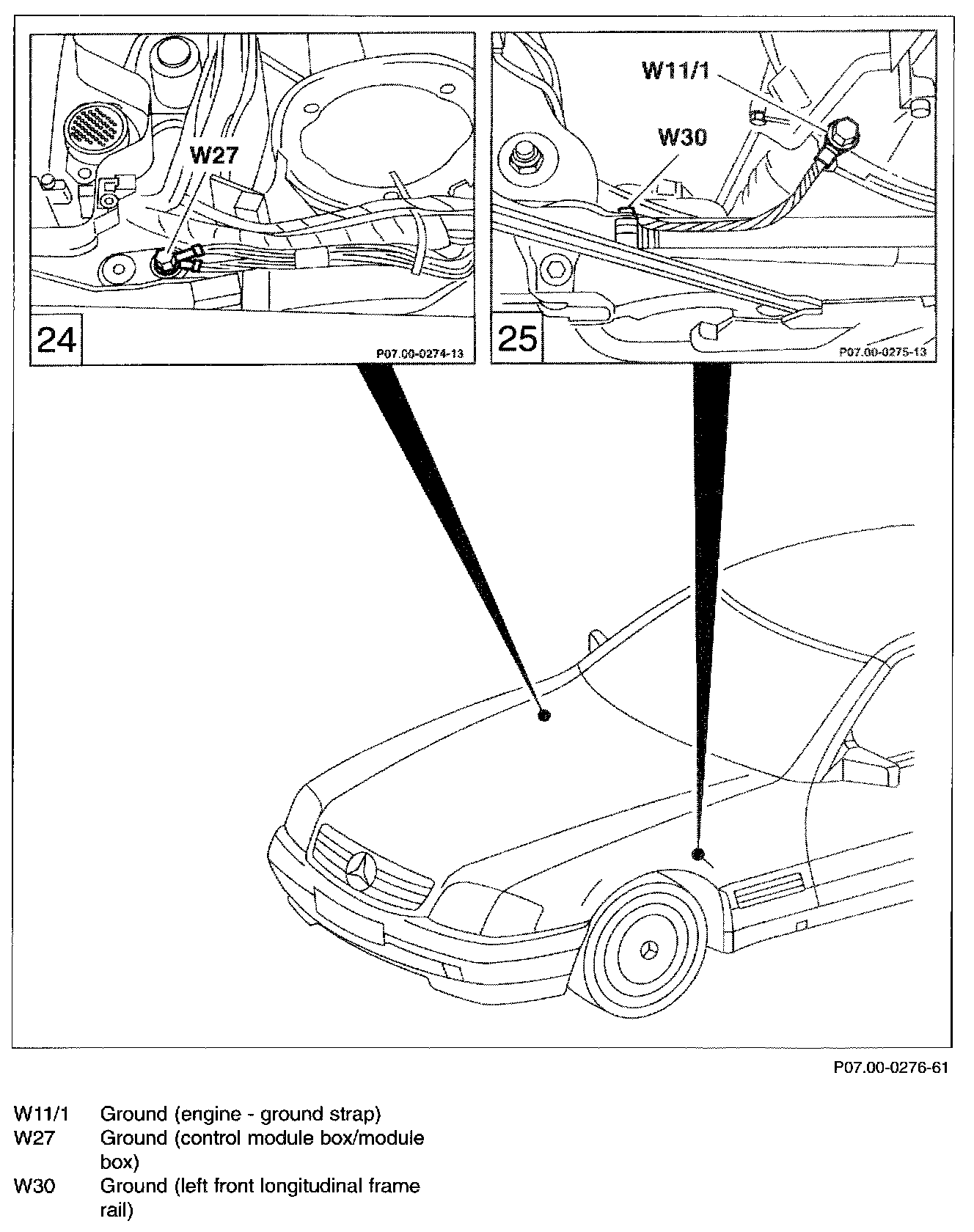

B.3:

B.3/1:

B.3/2:

B.3/3:

B.3/4:

B.3/5:

B.3/6:
