Circuit 87 Wiring PE00.19-U-2740YB
Circuit 87 Wiring PE00.19-U-2740YB

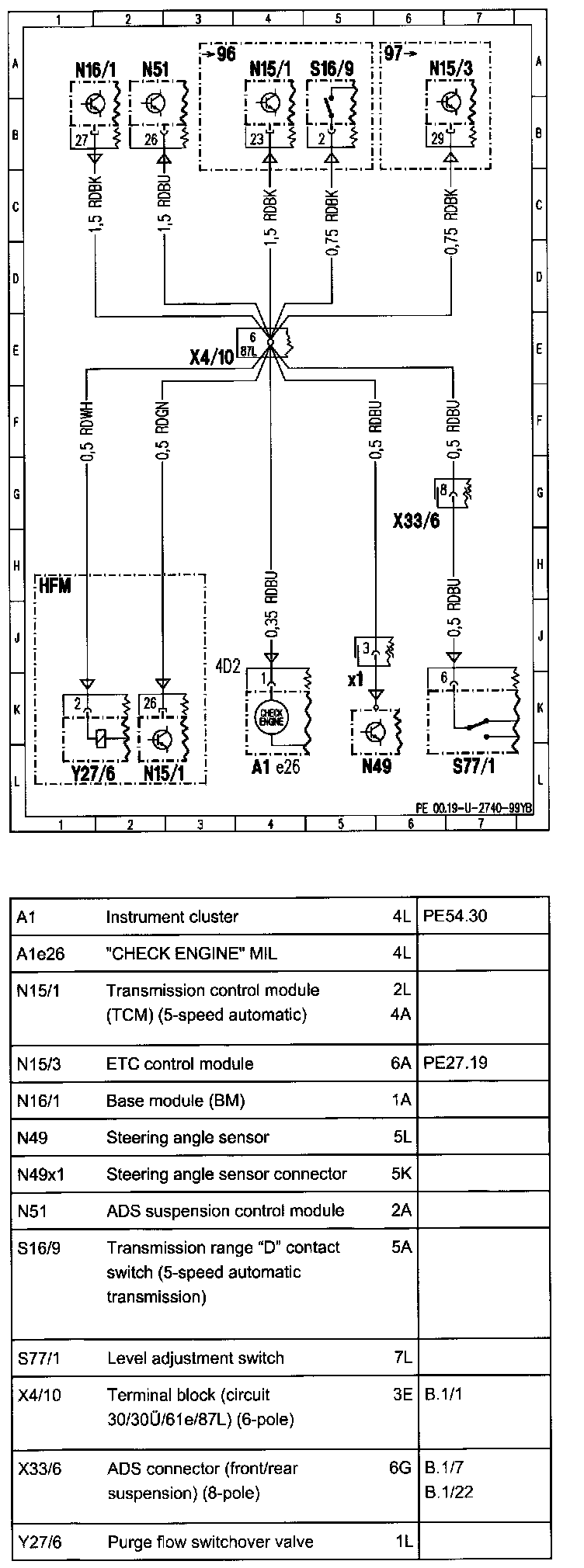

Circuit 87 Wiring
PE00.19-U-2740YB:

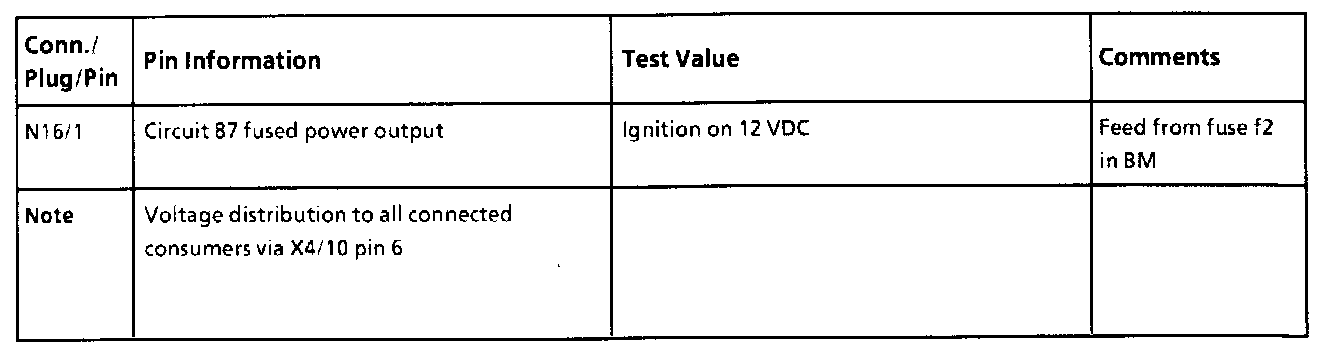

Pin Information:
