Radio (RD) Control Module PE82.60-U-2000YD
Radio MB with sound system (Bose).

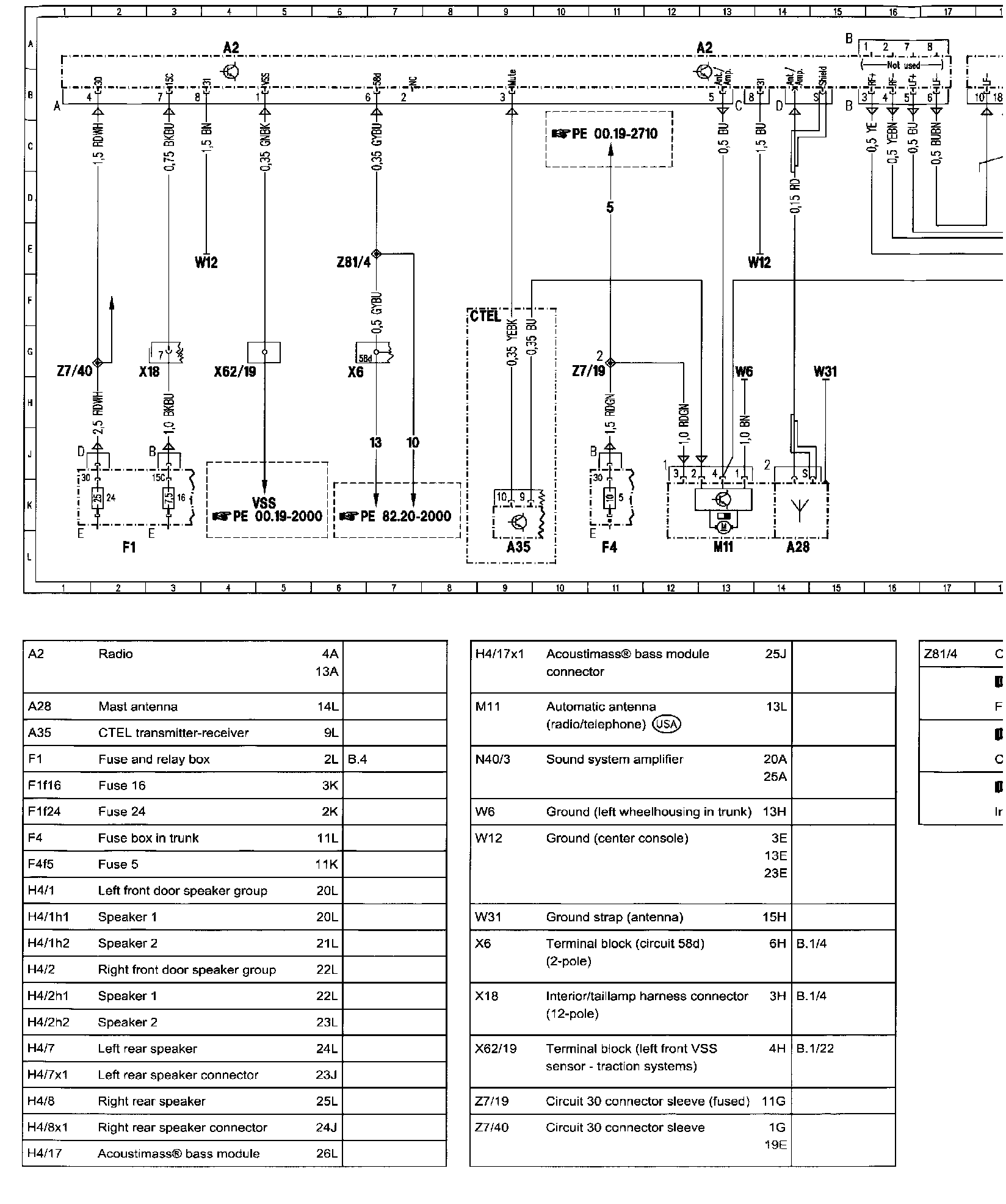

Wiring Diagram
��4;PE82.60-U-2000YD:

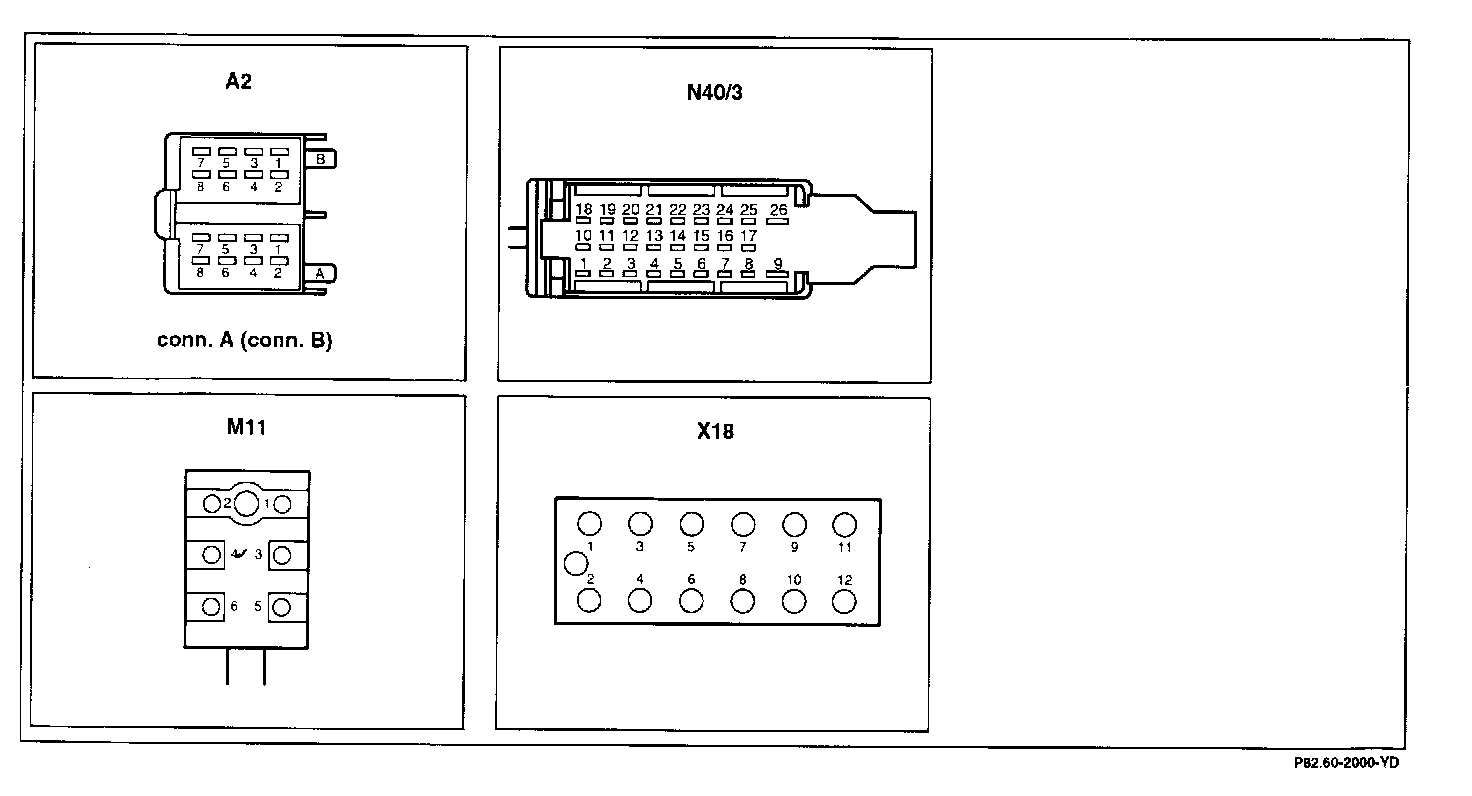

Connector Assignment:

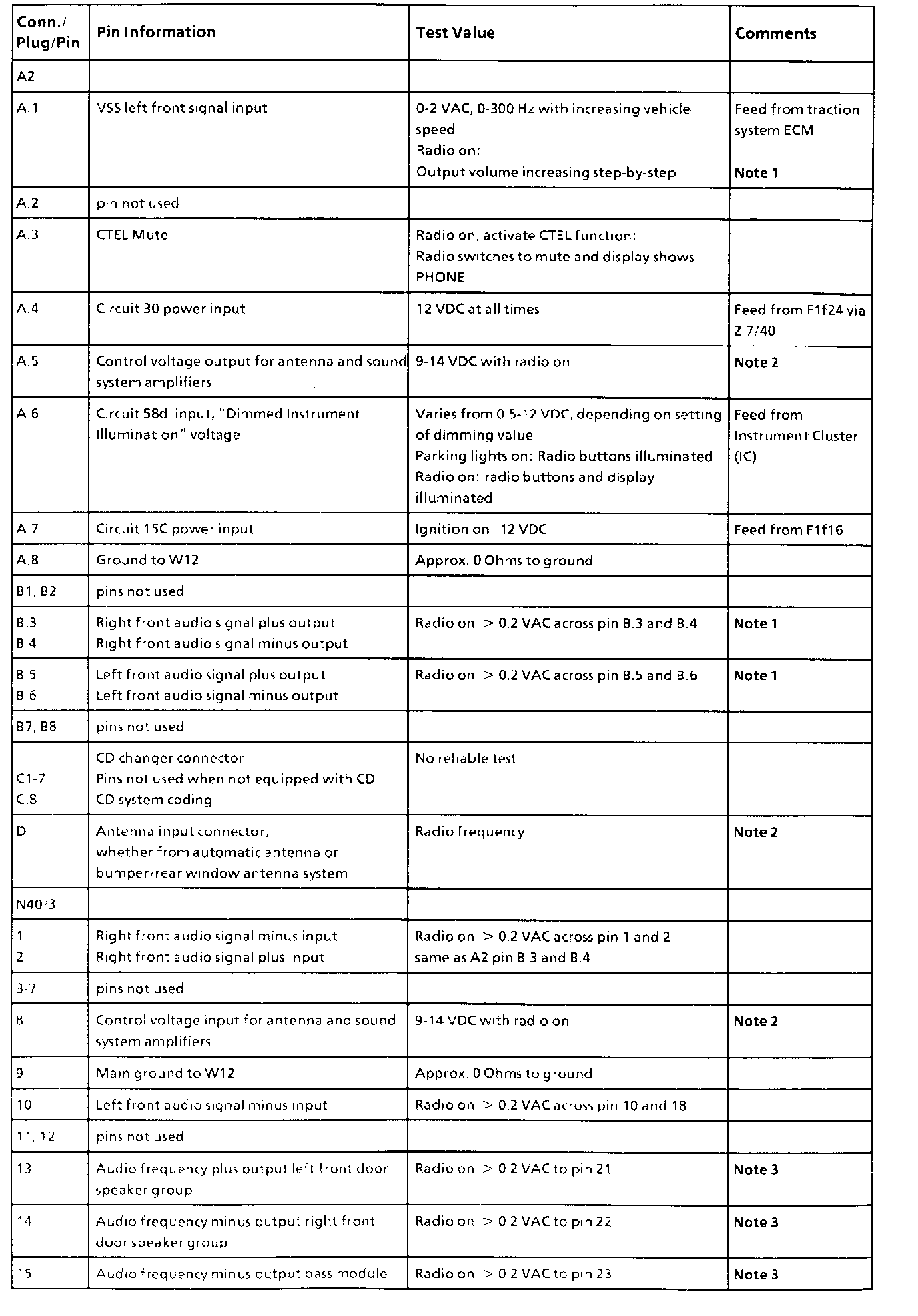

Pin Information, Part 1:

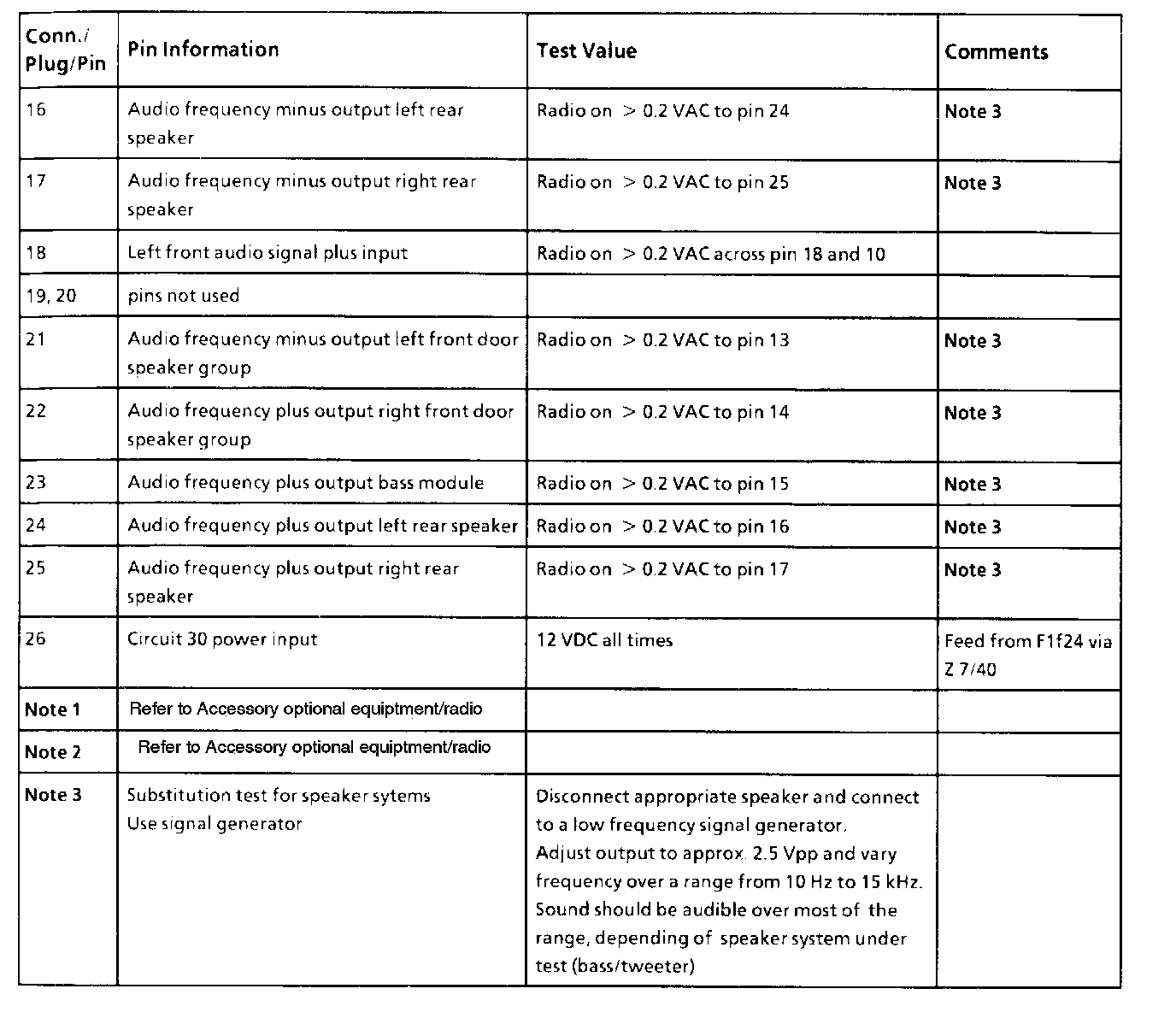

Pin Information, Part 2:
All values measure to ground unless otherwise noted.
Radio MB with sound system (Bose).
Wiring Diagram
All values measure to ground unless otherwise noted.
