System Diagram


Instrument Cluster (CLUS)/Display Instruments/Warning Devices

�F�X���X~�X}W�XPE54.30-U-2000YH:






Connector Assignment:







Pin Information, Part 1:

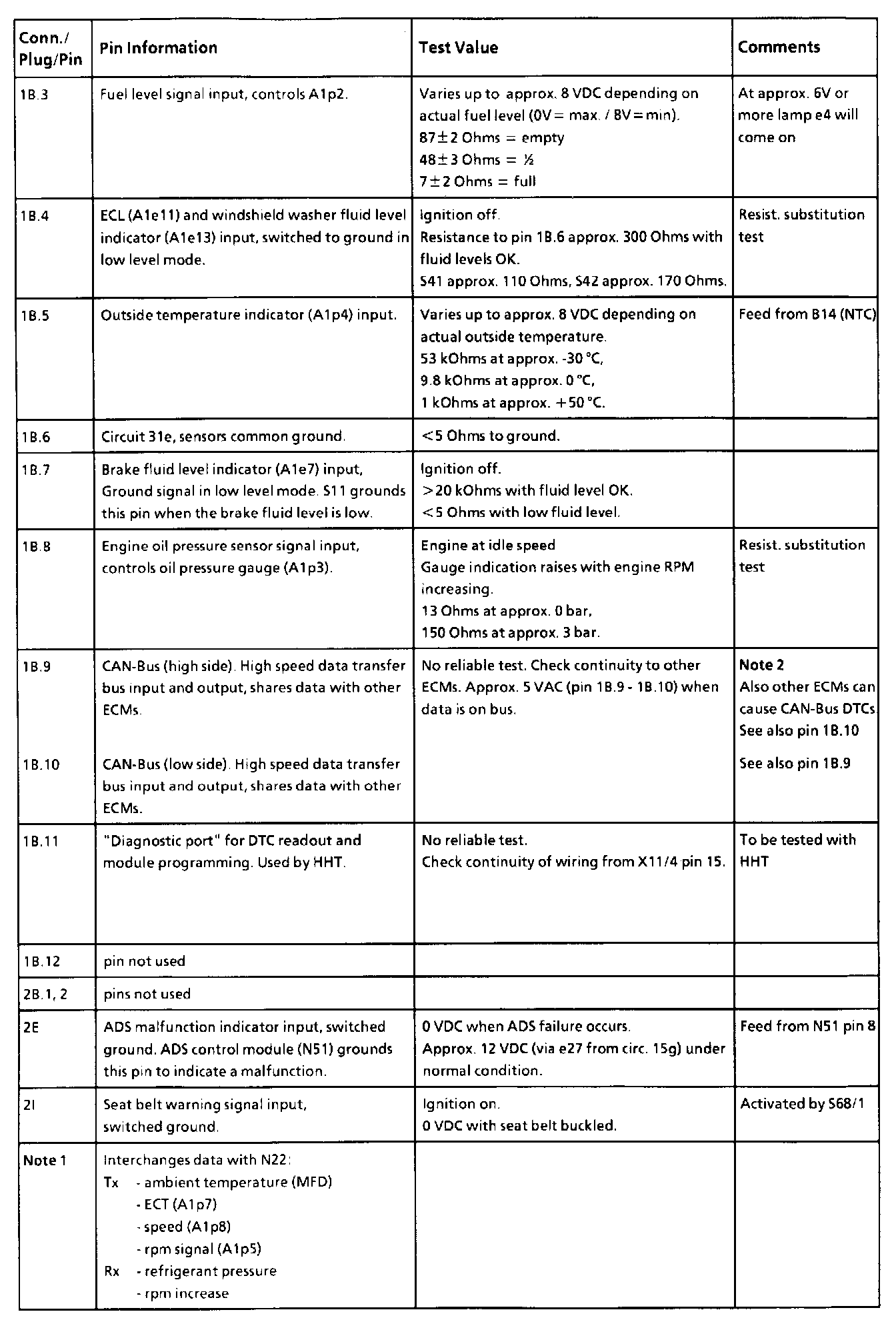

Pin Information, Part 2:

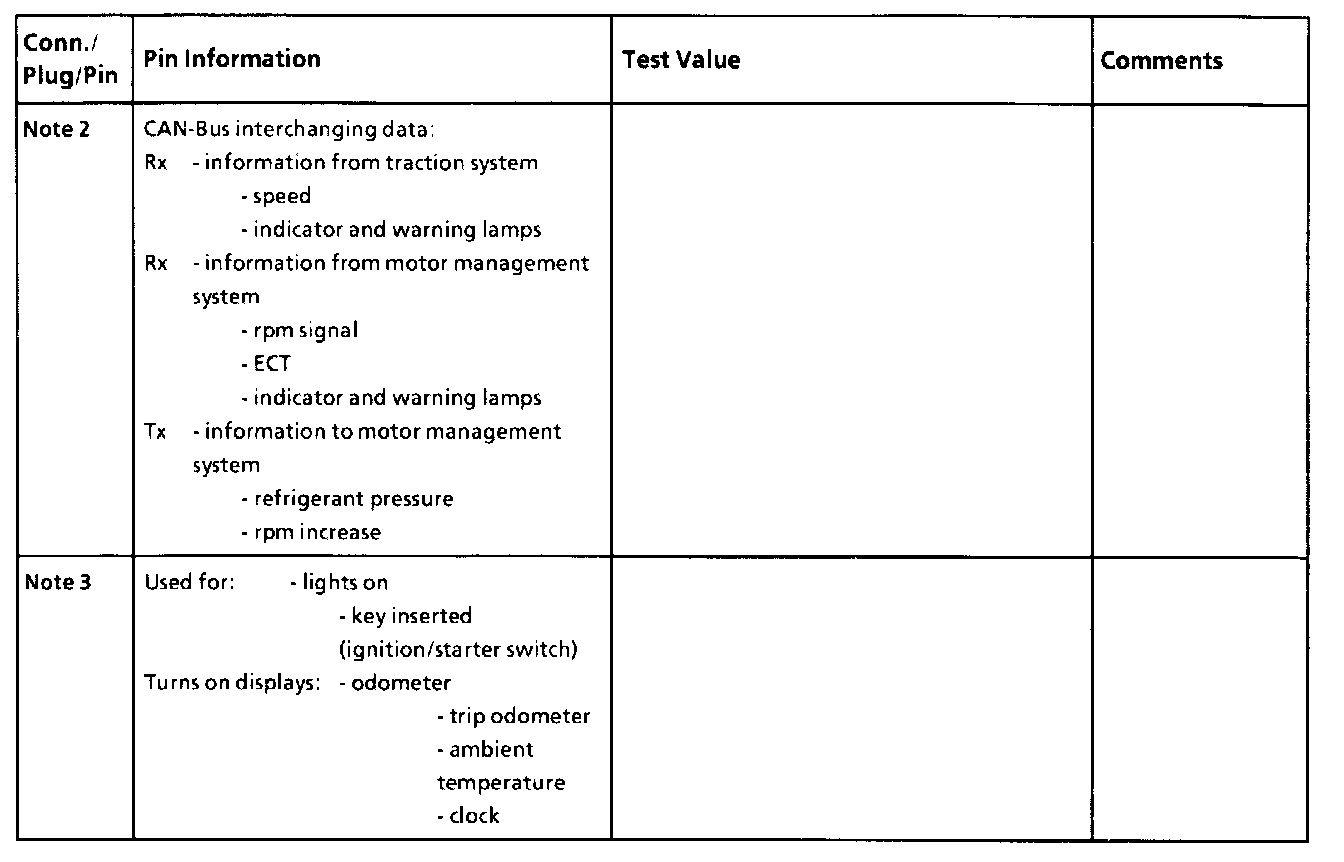

Pin Information, Part 3:
