Removal & Installation of Hydraulic Cylinders For Center Catches

Removal & Installation of Hydraulic Cylinders For Center Catches

Preliminary jobs:
Remove catches Service and Repair

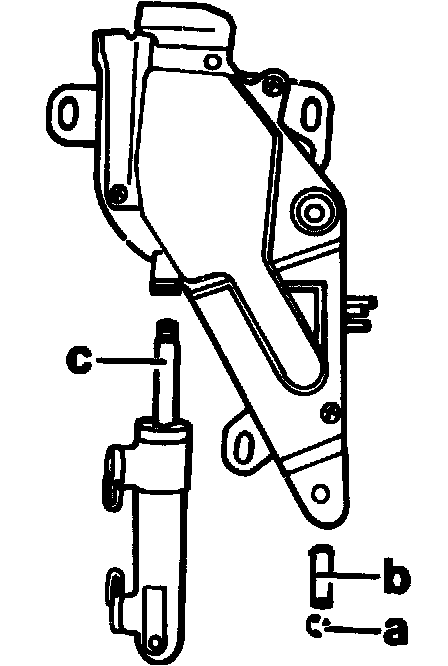

Retainer (a) push off with screwdriver
Bolt (b) pull out
Piston rod (c) screw out of catch

Install in reverse order.
Check for proper function and leakage.

NOTE: A screw-securing agent must be used to install the hydraulic cylinder.
