Component Locations - Section 21

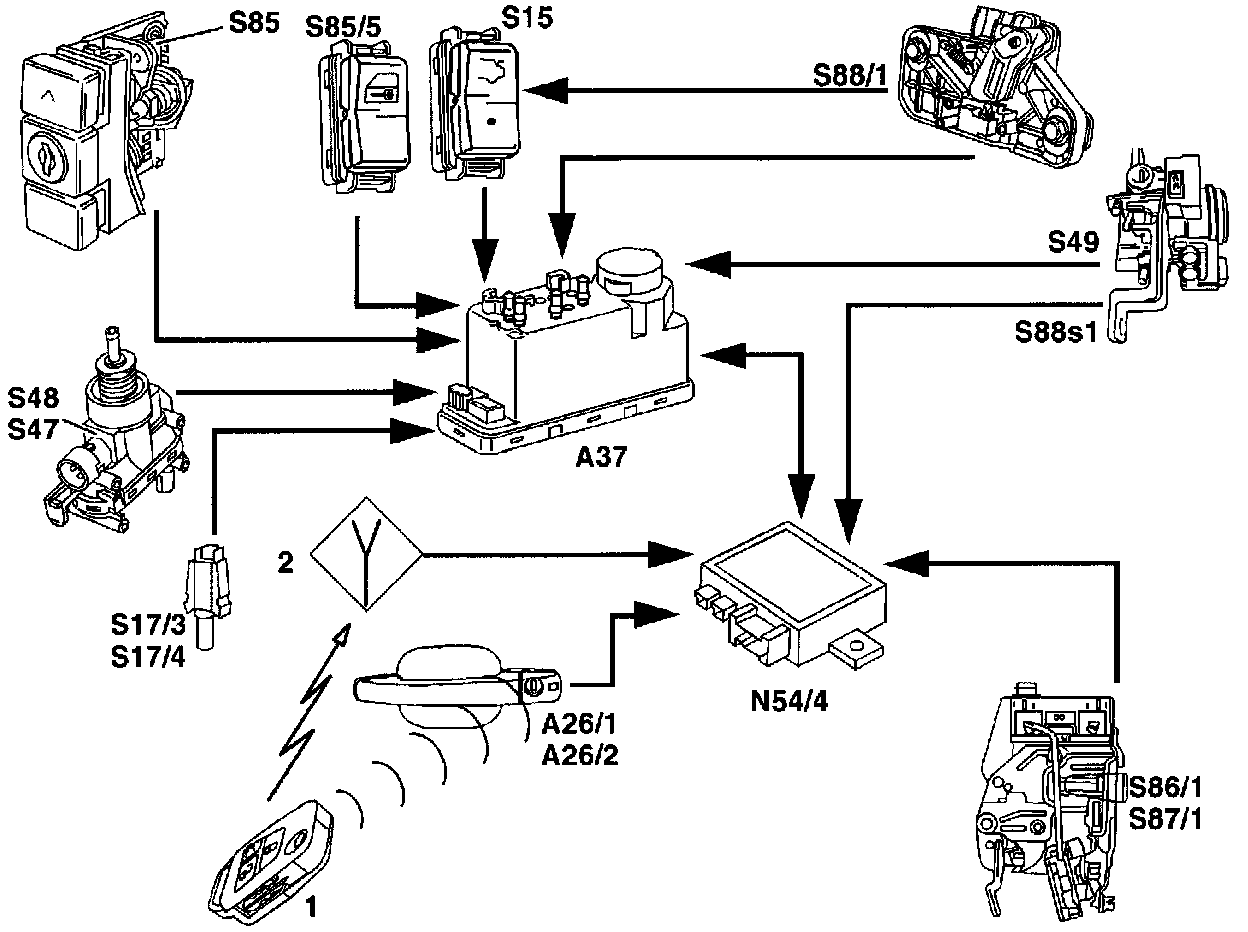

Model 129:

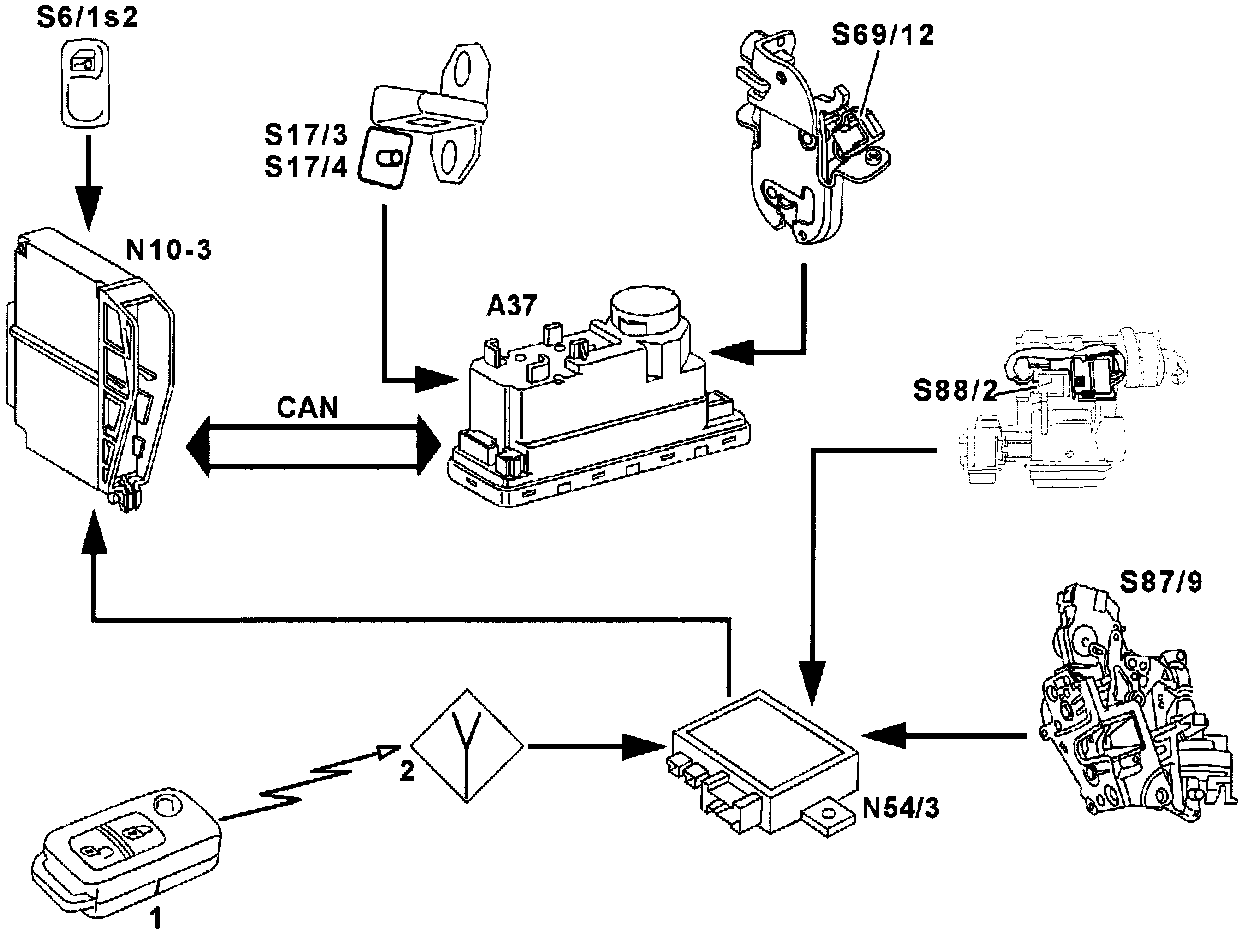

Model 140:

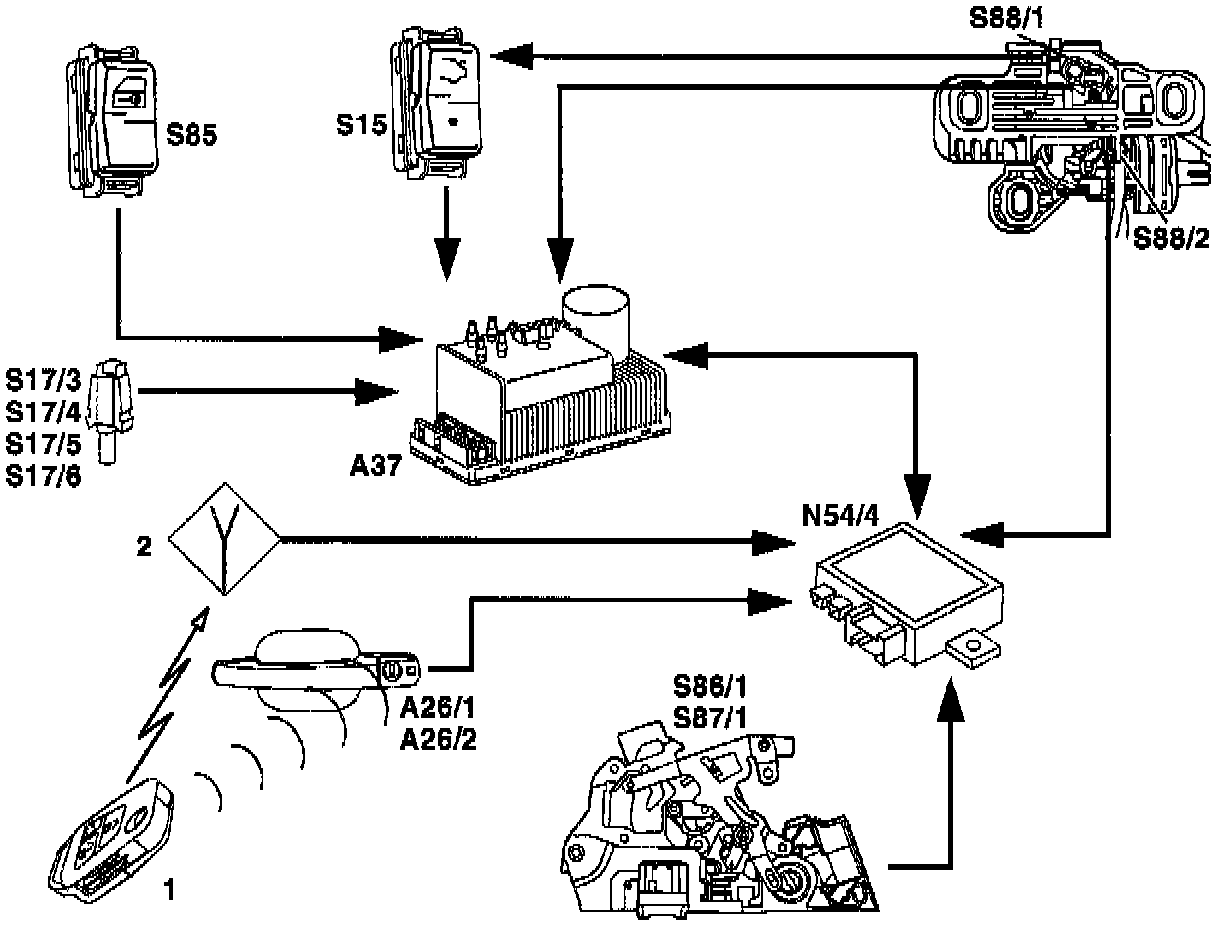

Model 170:

A26/1 Left front door IR receiver
A26/2 Right front door IR receiver
A37 PSE control module combined functions
CAN Control-Area- Network
N10-3 Combination control module
N54/3 Radio frequency DAS control module
N54/4 DAS radio frequency/infrared control module
S6/1s2 Interior switch (CL)
S15 Remote trunk release
S17/3 Left front door switch
S17/4 Right front door switch
S17/5 Left rear door switch
S17/6 Right rear door switch
S47 Left door actuator
S48 Right door actuator
S49 Trunk lid lock actuator
S69/12 Rotary latch selector switch, trunk lock/trunk illumination
S85 CL interior control switch
S85/1 Left front door lock switch (CF) (only (USA) (J))
S85/5 CL interior control switch
S86/1 Left front door lock switch (CF) (only (USA) (J))
S87/1 Right front door lock switch (CF) (only (USA) (J))
S87/9 Left front door lock switch (only (USA) (J))
S88s1 Trunk lid lock switch (CF) (only (USA) (J))
S88/1 Rotary tumbler/trunk lid microswitch
S88/2 Trunk lid lock switch (CF)(only (USA) (J))
1 Transmitter key
2 Antenna
