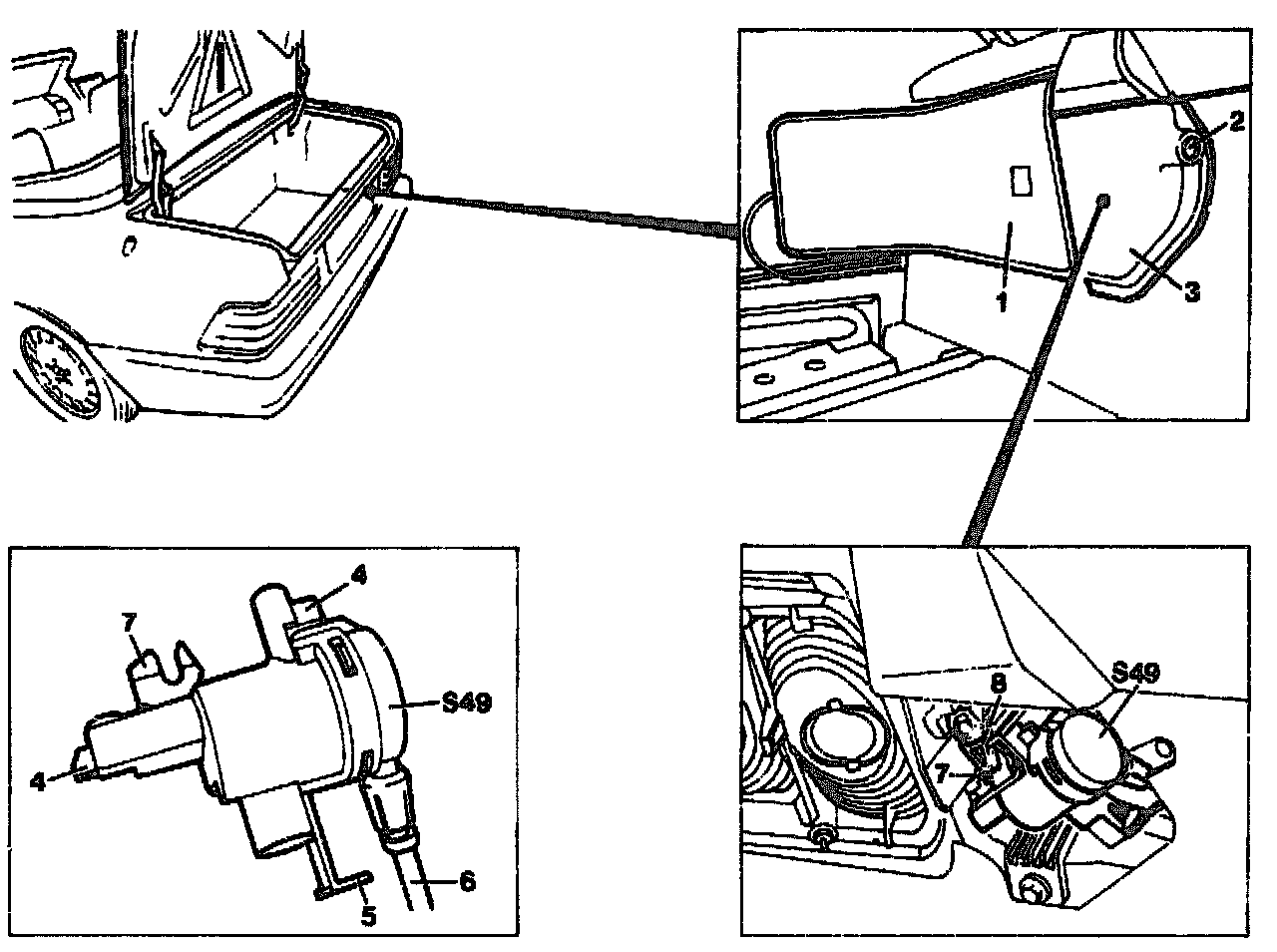

Remove/Install Trunk Lid Actuator

Cover (1) of right tail lamp
Fold open.

Clips (2)
Pull out.

Cover (3)
Remove.

Retaining catches (4)
Push open.

Actuator (S49)
Disconnect.

Strain relief (5)
Push away.

Electrical cable
Disconnect.

Pneumatic line (6)
Lever off with open-end wrench (width between flats 7).

Actuator (S49)
Check. Testing and Inspection

Actuator
Install in reverse order by inserting actuator carrier (7) into lock carrier (8).
