Adaptive Damping System (ADS II)
>>
Hydraulic Test Program
>>
Leveling Valve Function Test - Section 33
>>

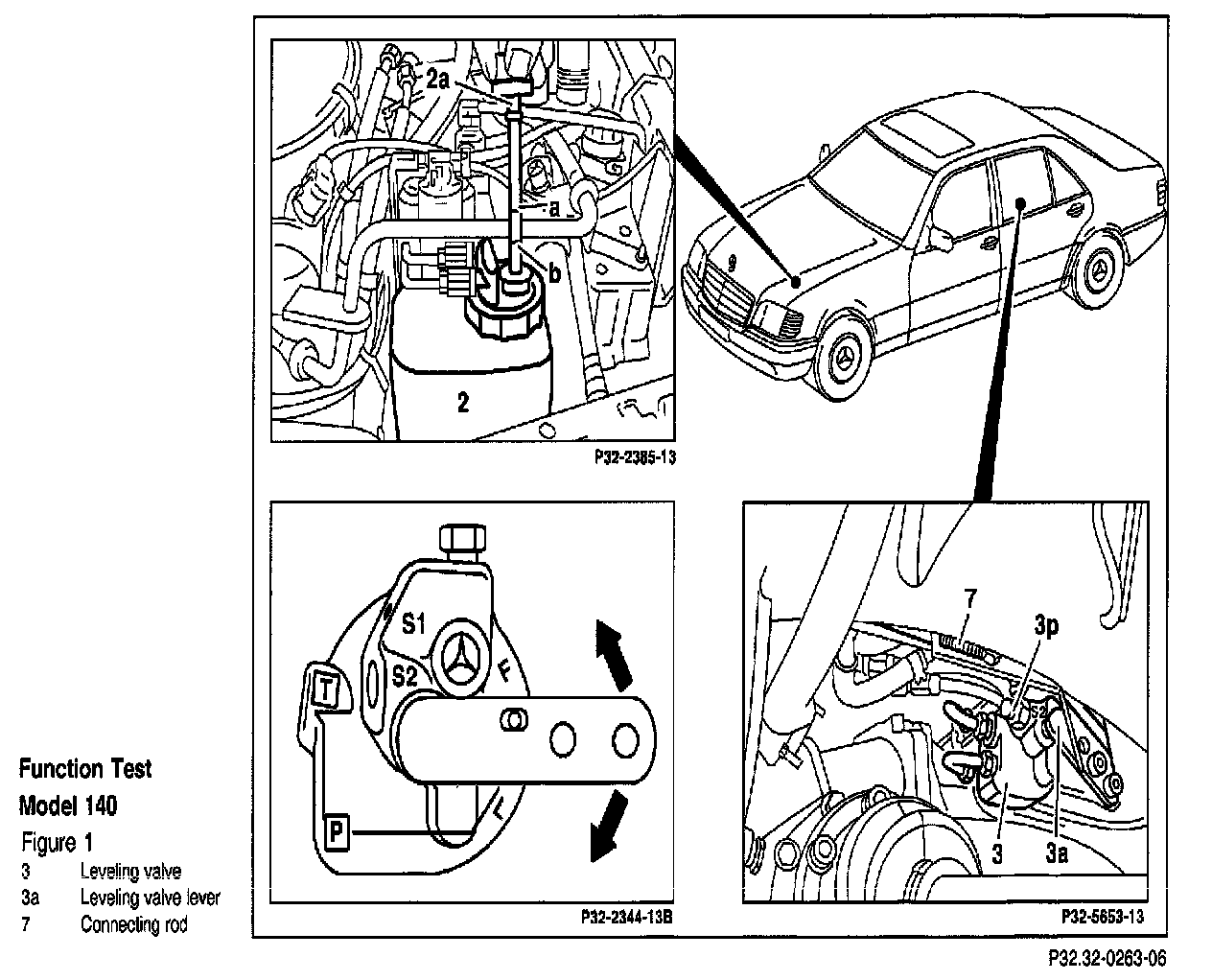

Figure 1
Figure 1
Figure 1:
1.
Check oil level in oil reservoir, correct if necessary.
2.
Unscrew connecting rod at leveling valve lever (3a) (set lever to neutral position).
