Home >> Mercedes Benz >> 1999 >> S 320 SWB (140.032) L6-3.2L (104.994) >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Suspension Control ( Automatic - Electronic ) >> Testing and Inspection >> Adaptive Damping System (ADS II) >> Electrical Test Program >> Test - Section 23 >> 7.0 - 7.2

7.0 - 7.2

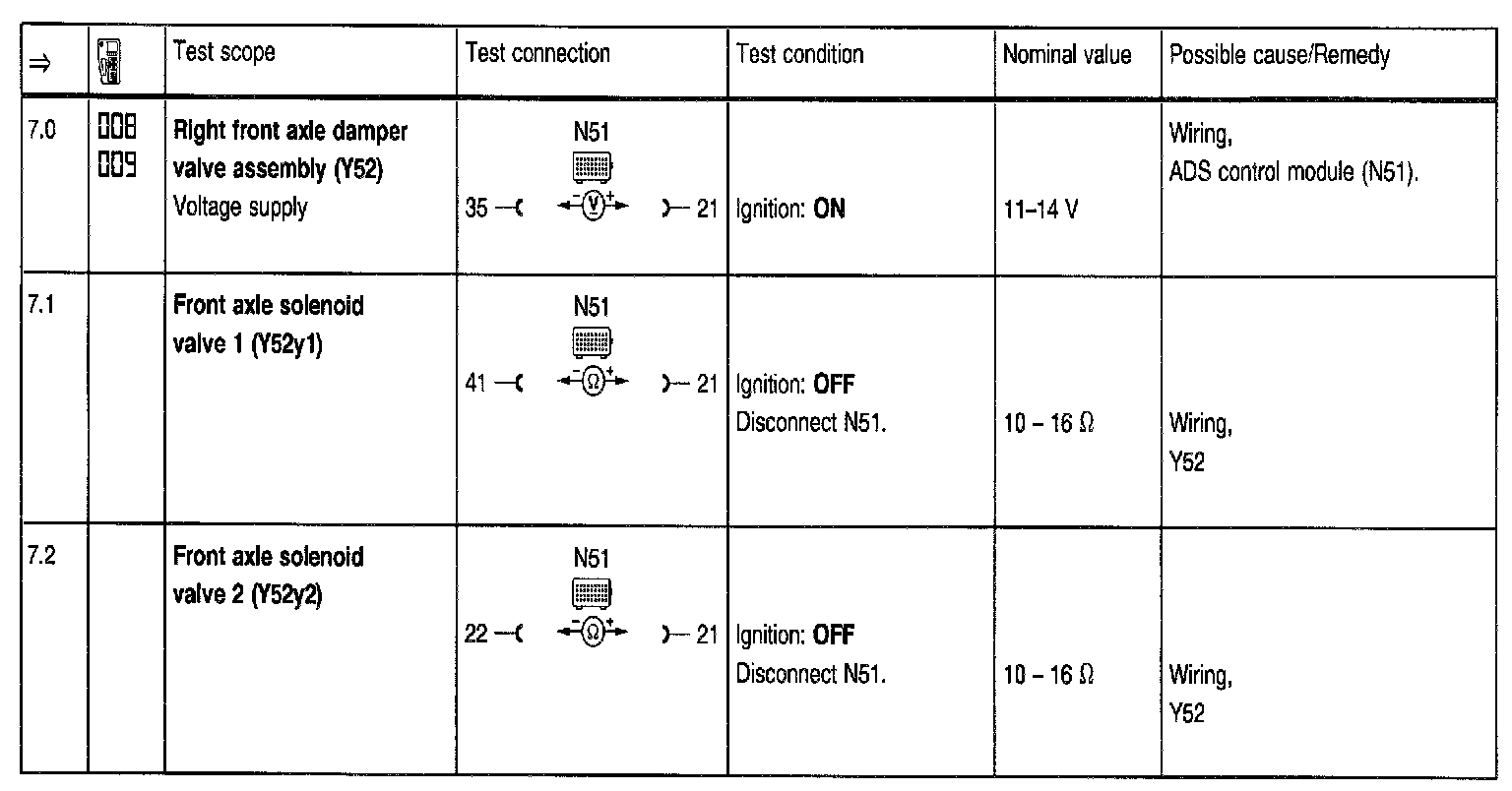

Steps 7.0 - 7.2:
