Preparation For Test - Section 22

1. Ignition: OFF
2. Disconnect ADS control module (N51).
3. Connect socket box with contact module 4 and contact box according to connection diagrams below.

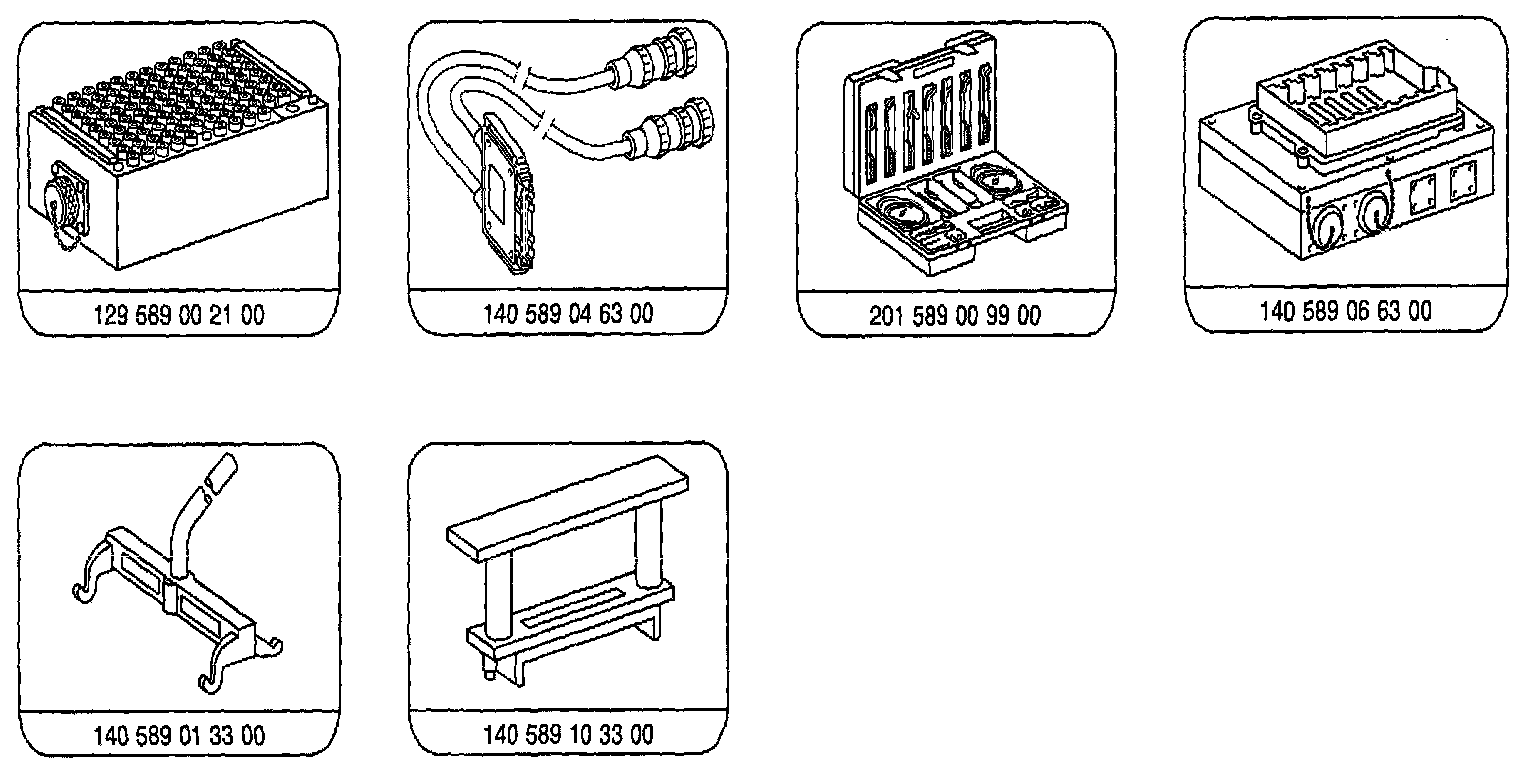

Special Tools:

Test equipment:
Description Brand, model, etc.
Digital multimeter Fluke models 23, 77 III, 83, 85, 87

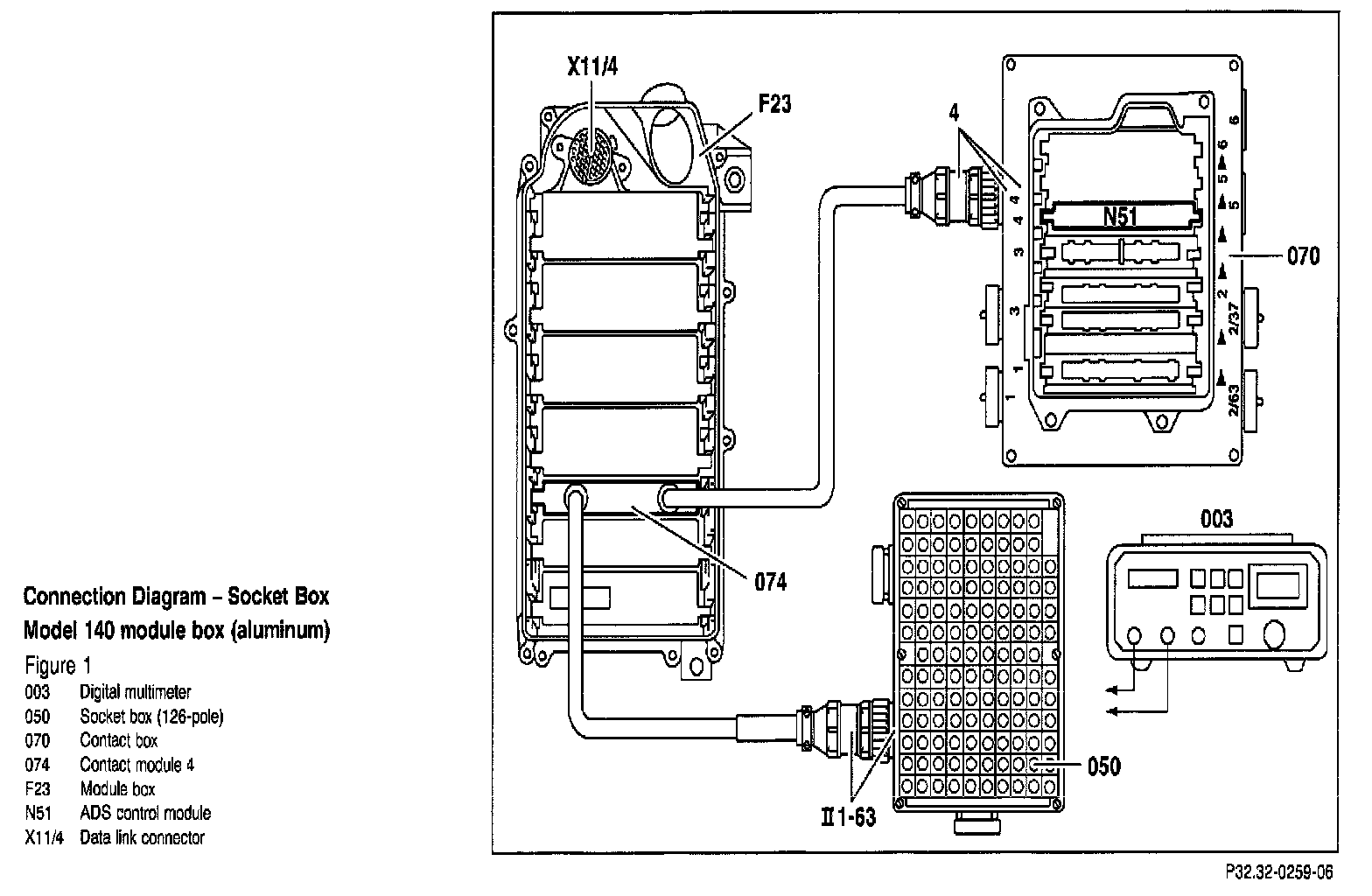

Figure 1 - Conn. Diagram (Aluminum Module Box):

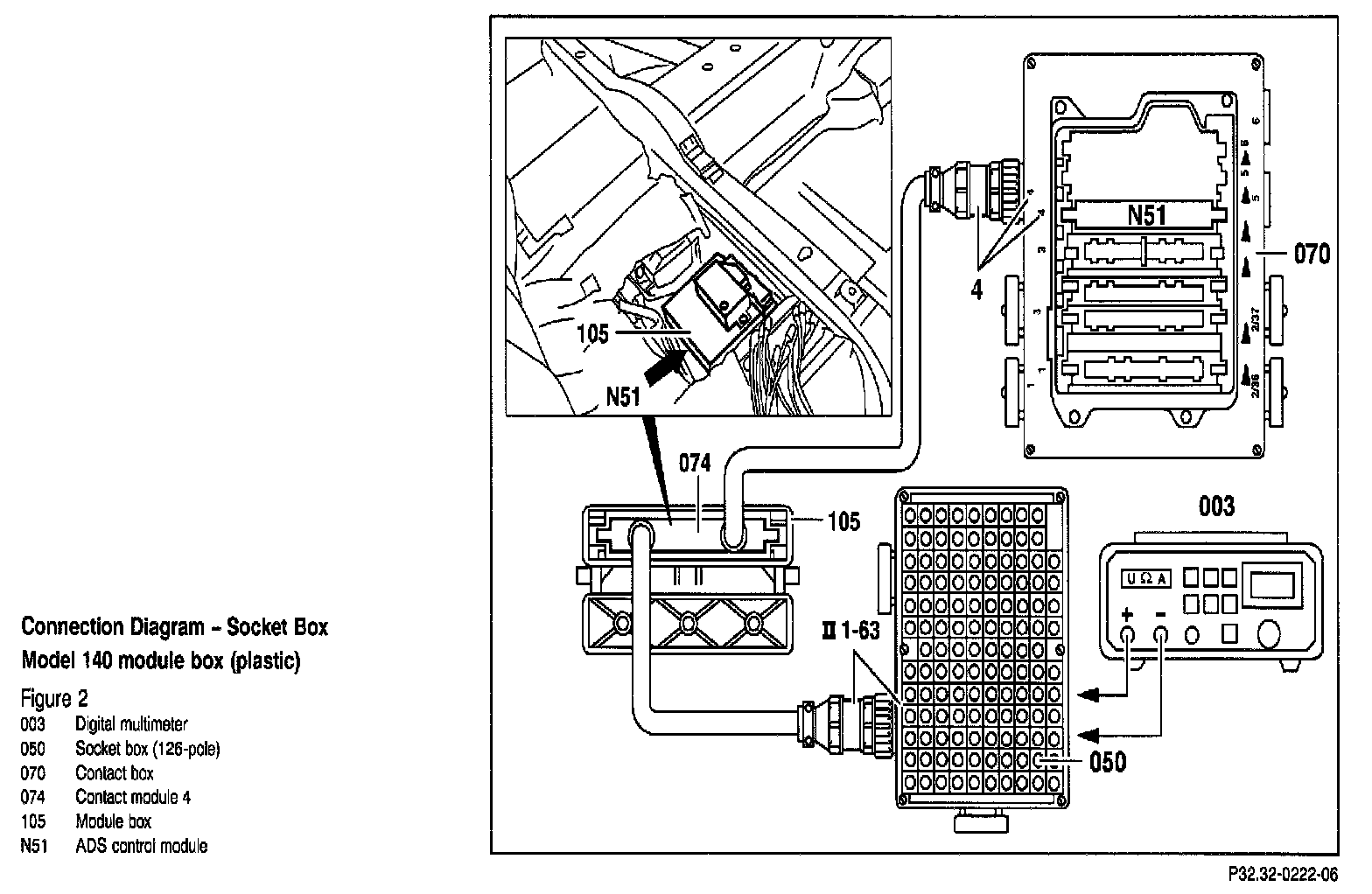

Figure 2 - Conn. Diagram (Plastic Module Box):
