Adaptive Damping System (ADS II)
>>
Electrical Test Program
>>
Component Locations - Section 21
>>

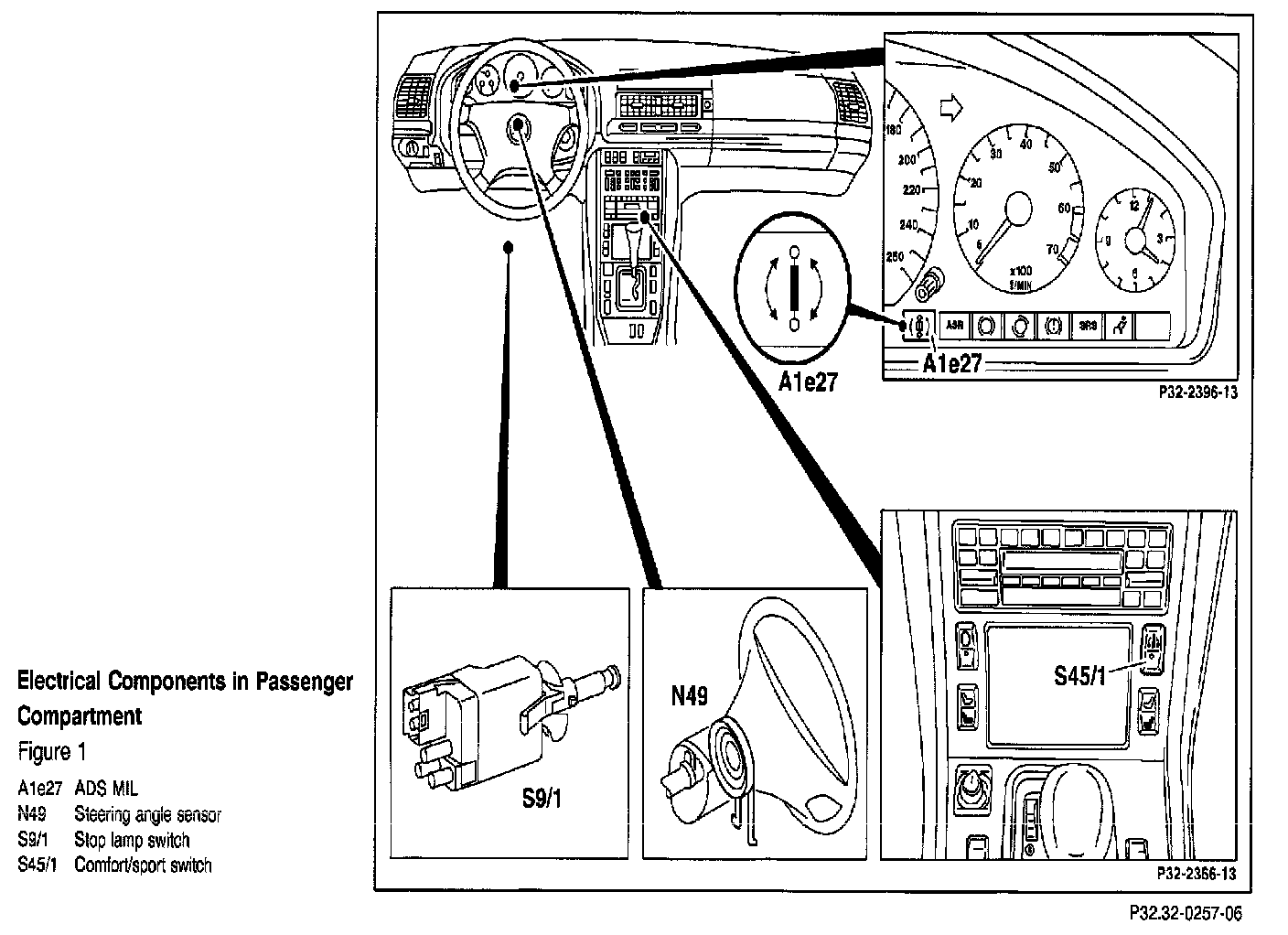

Figure 1 - Passenger Compartment
Figure 1 - Passenger Compartment
Figure 1:
