Fuse and Relay Box Locations

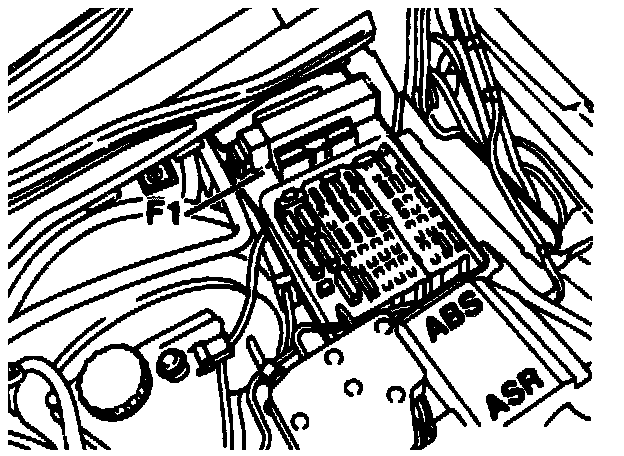

F1 - Fuse and Relay Box (In Engine Compartment)

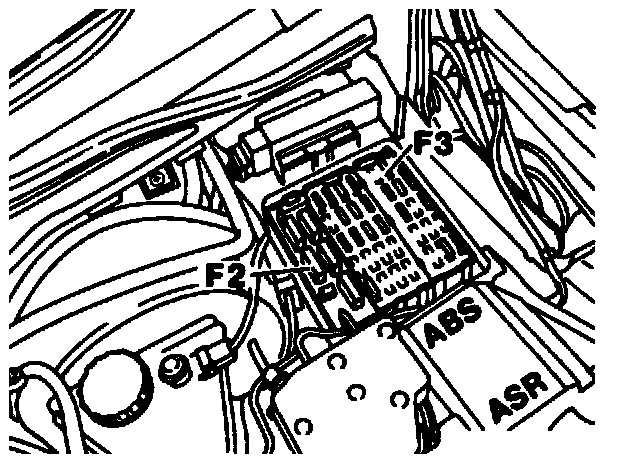

F2 - Maxi fuse box
F3 - Fuse box, 35 fuses, cockpit/taillamp harness

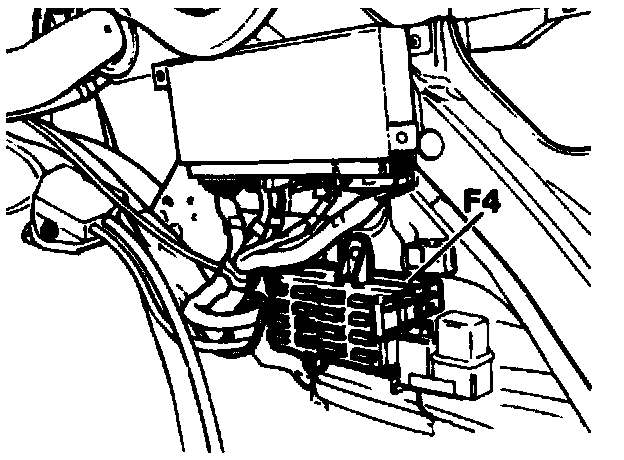

F4 - Fuse Box (In Trunk)
