Power Distribution Relay: Diagrams

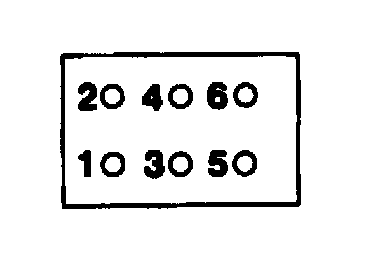

6-pin connector (connector 5)

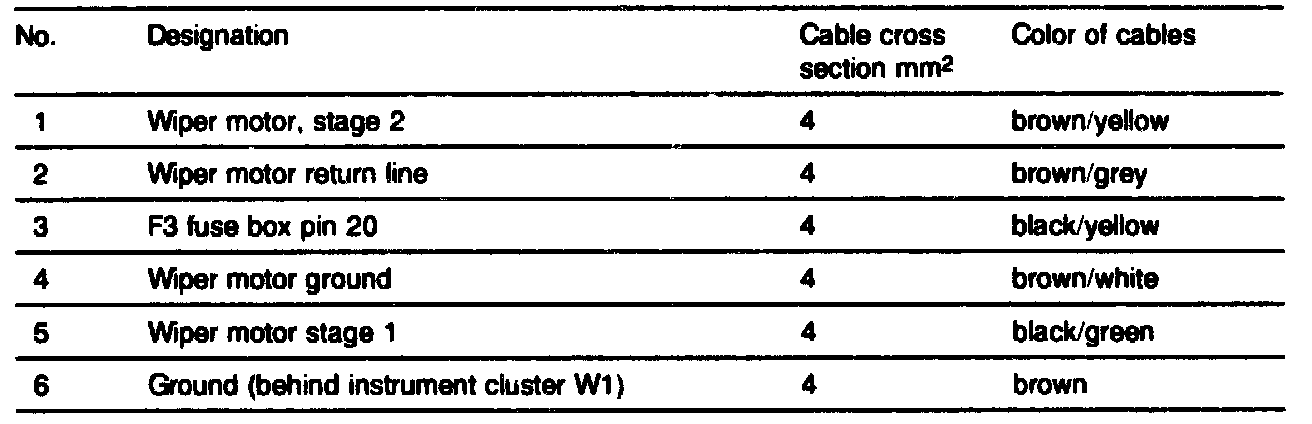

Pin assignment for 6-pin connector

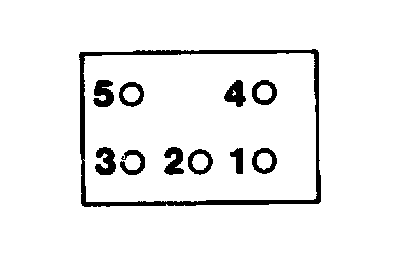

5-pin connector (connector 3)

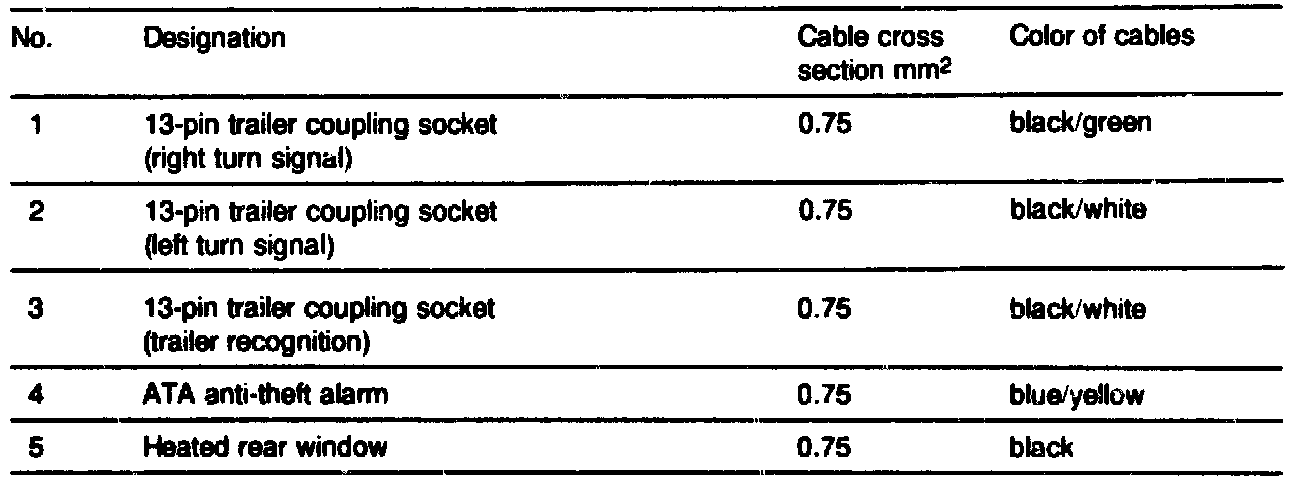

Pin assignment for 5-pin connector

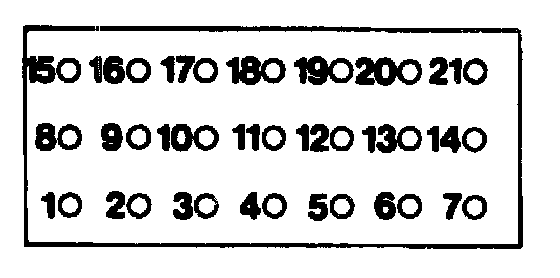

21-pin connector (connector 1)

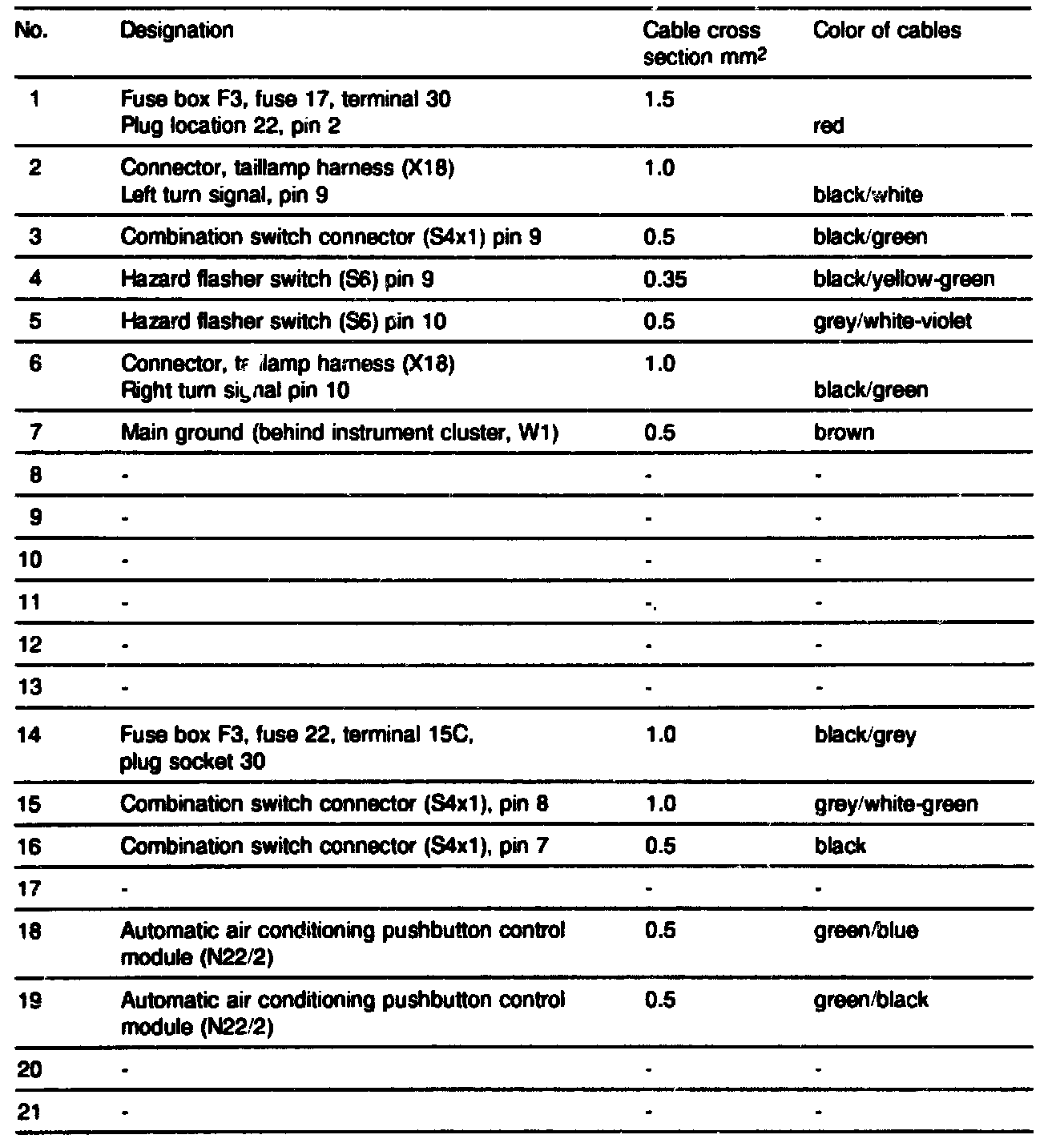

Pin assignments for 21-pin connector
