Home >> Mercedes Benz >> 1999 >> S 320 SWB (140.032) L6-3.2L (104.994) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse Block >> Service and Repair >> Location of Relays

Location of Relays

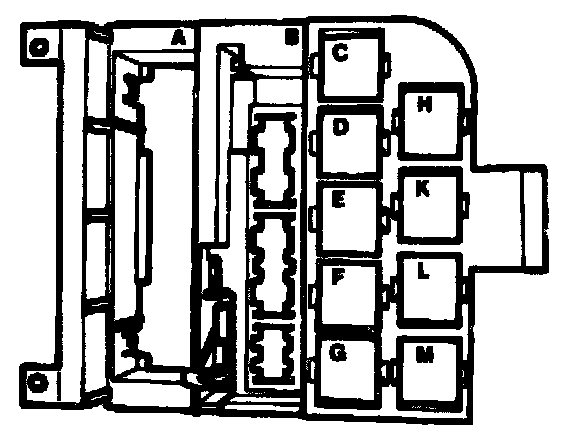

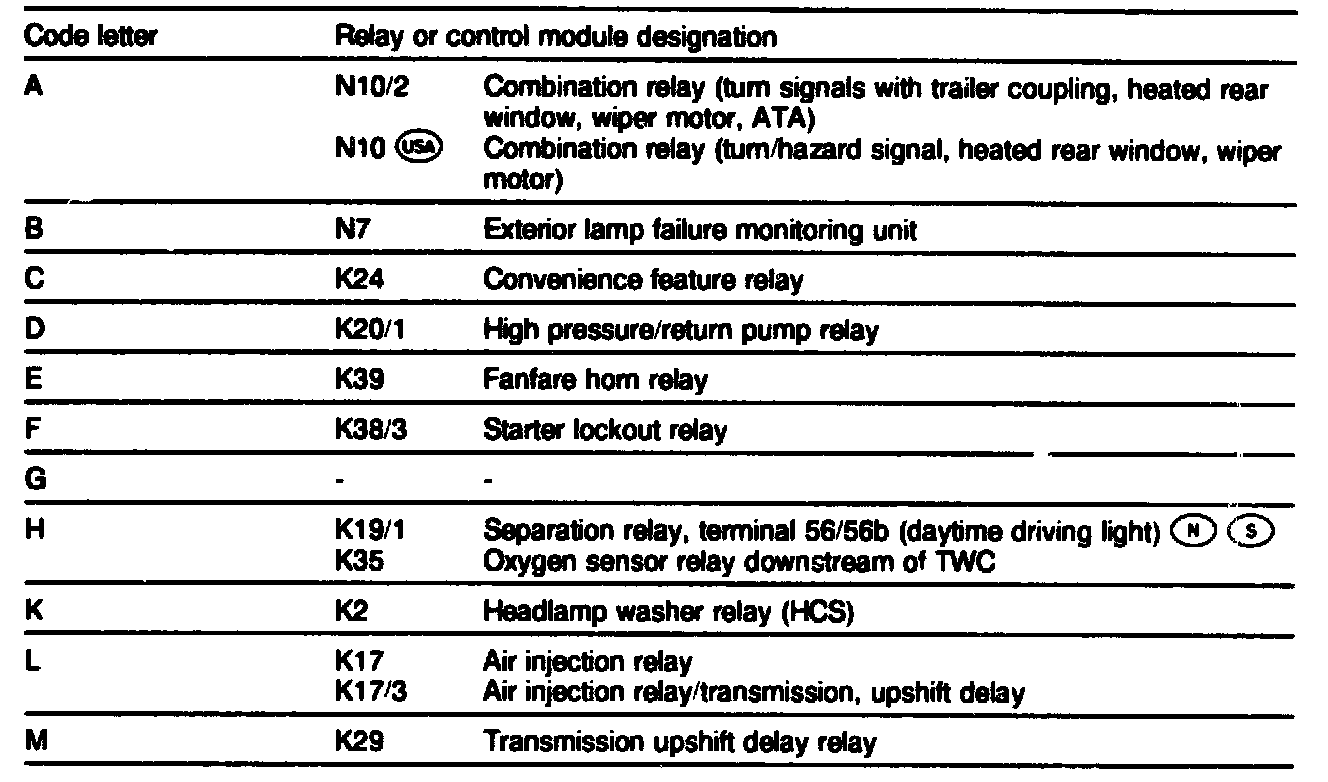

Location of relays in fuse and relay box F1






Location of relays in fuse and relay box F1 (up to 08/95)






Location of relays in fuse and relay box F1 (as of 09/95)
