Fuse and Fusible Link Locations

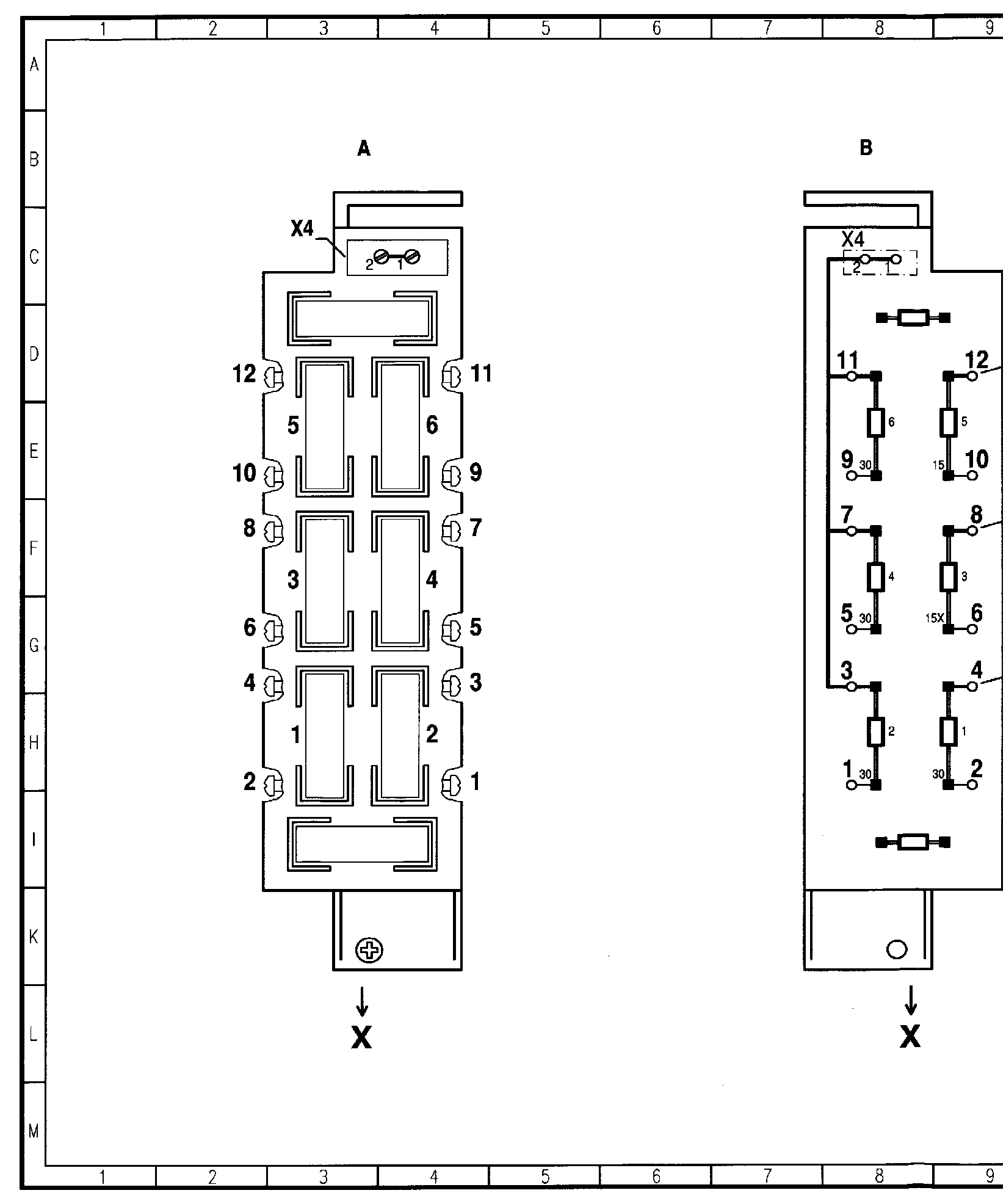

F2 - Maxi-Fuse Box (6 Fuse, In Fuse and Relay Box F1)
߷ �:
Fuses 1 - 6:

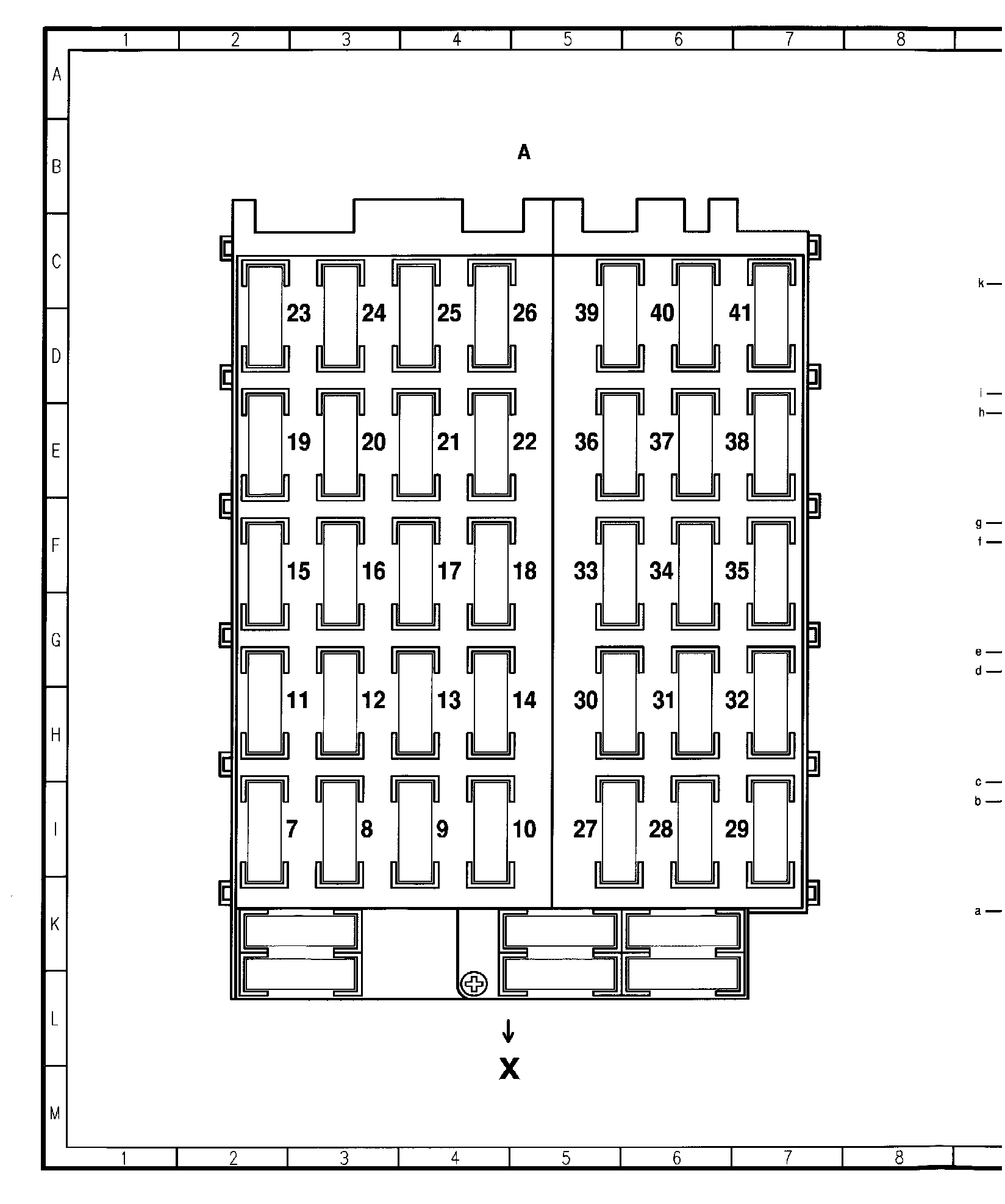

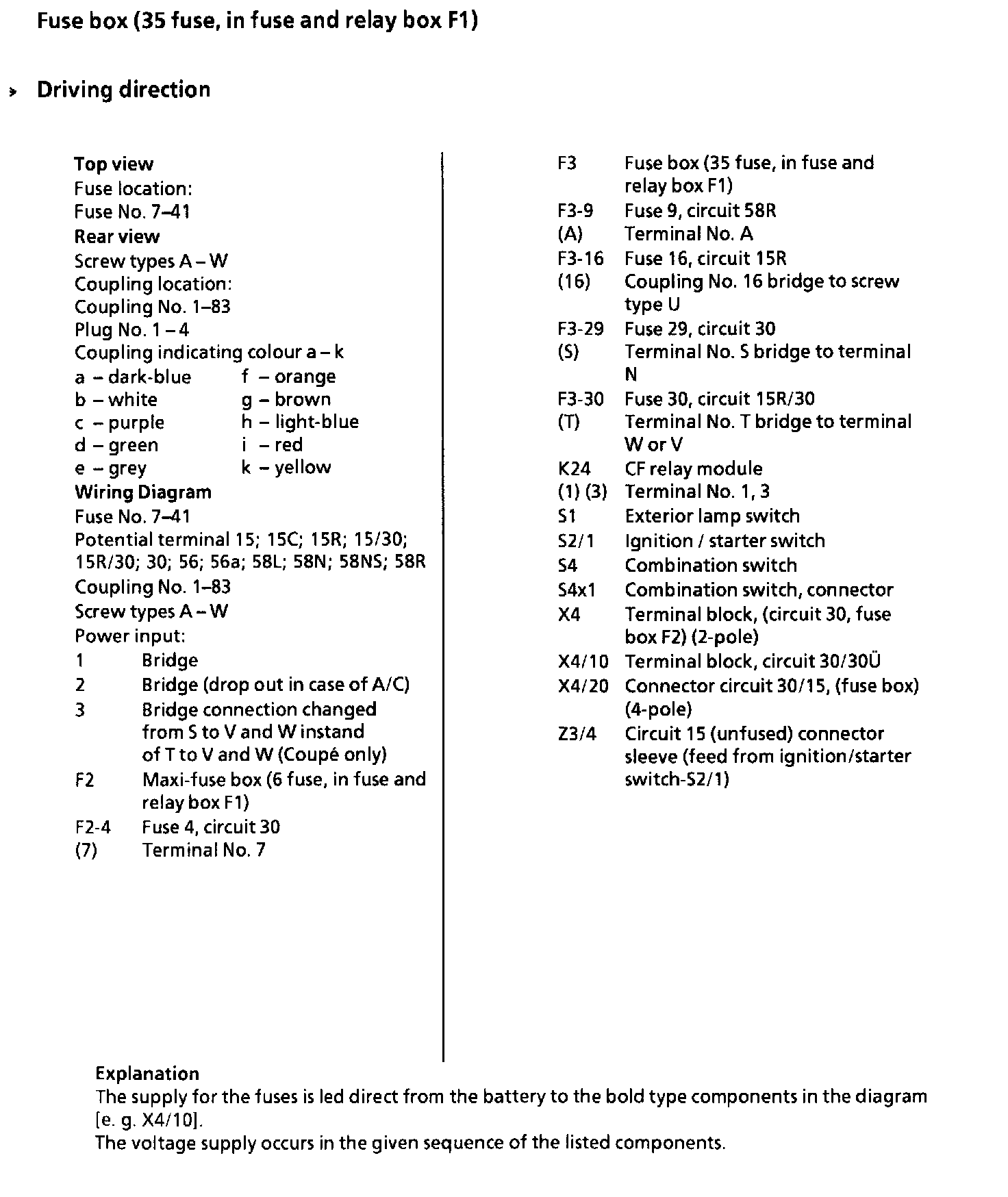

F3 - Fuse Box (35 Fuse, In Fuse and Relay Box F1)
J�&��:

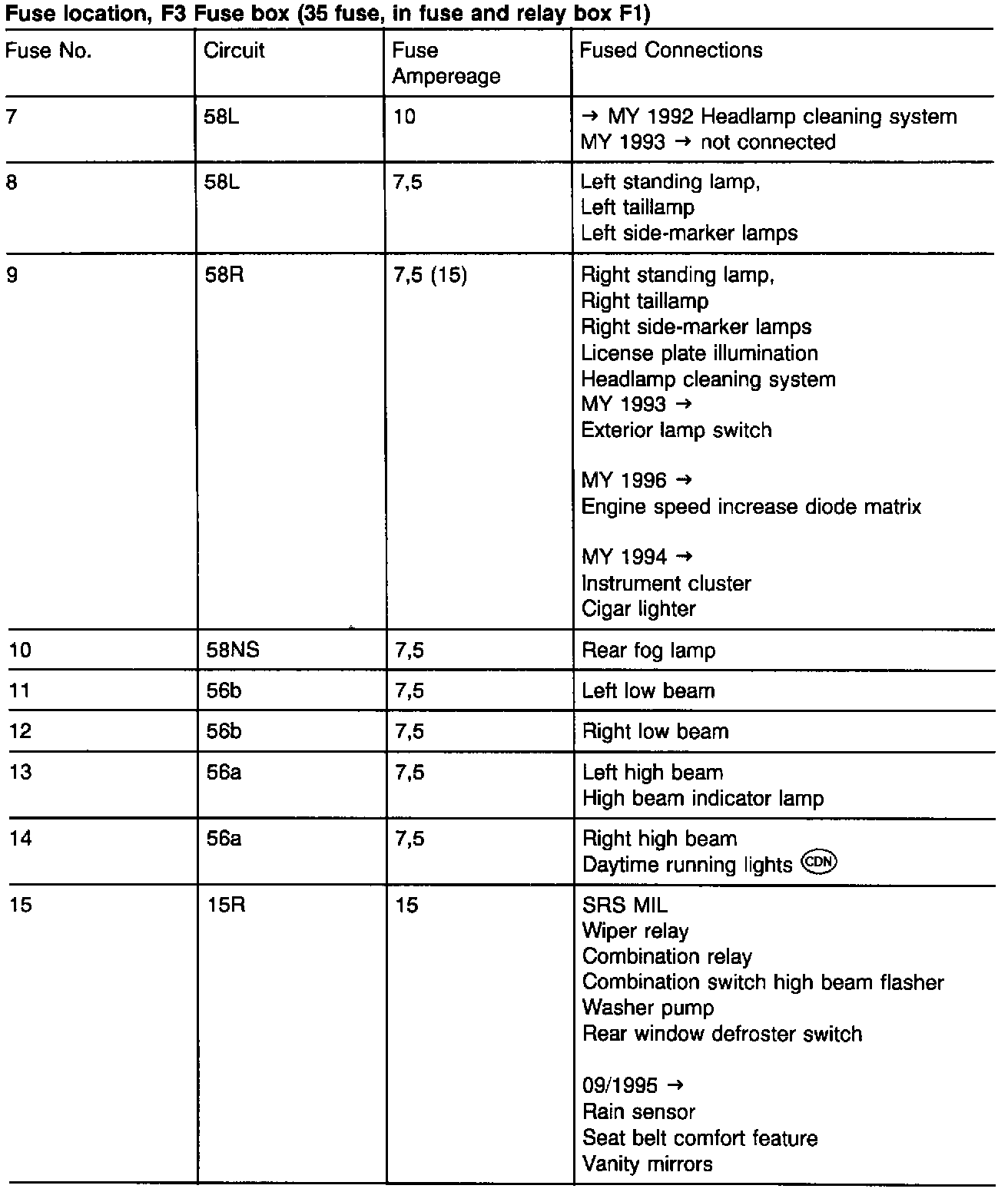

Fuses 7 - 15:

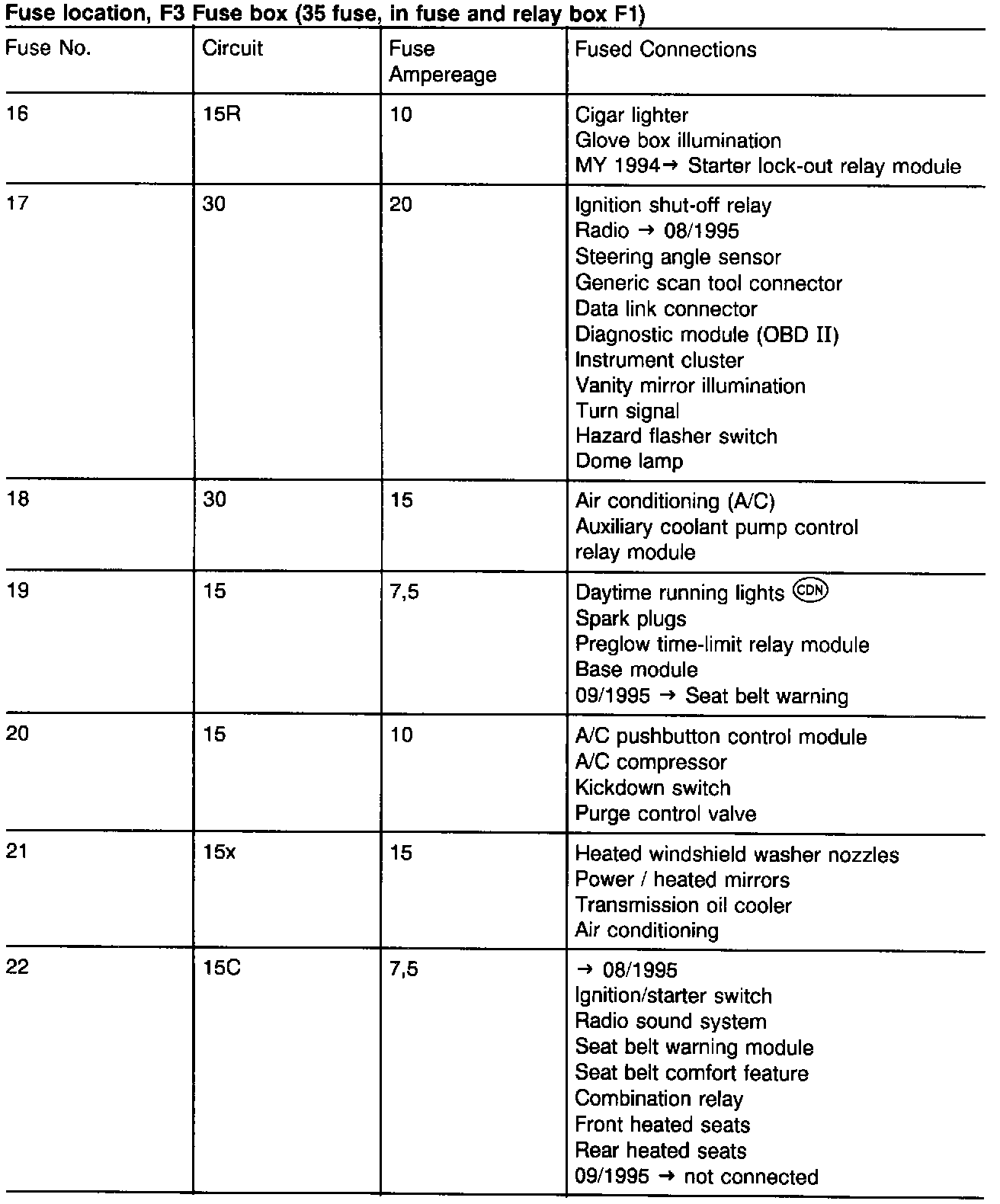

Fuses 16 - 22:

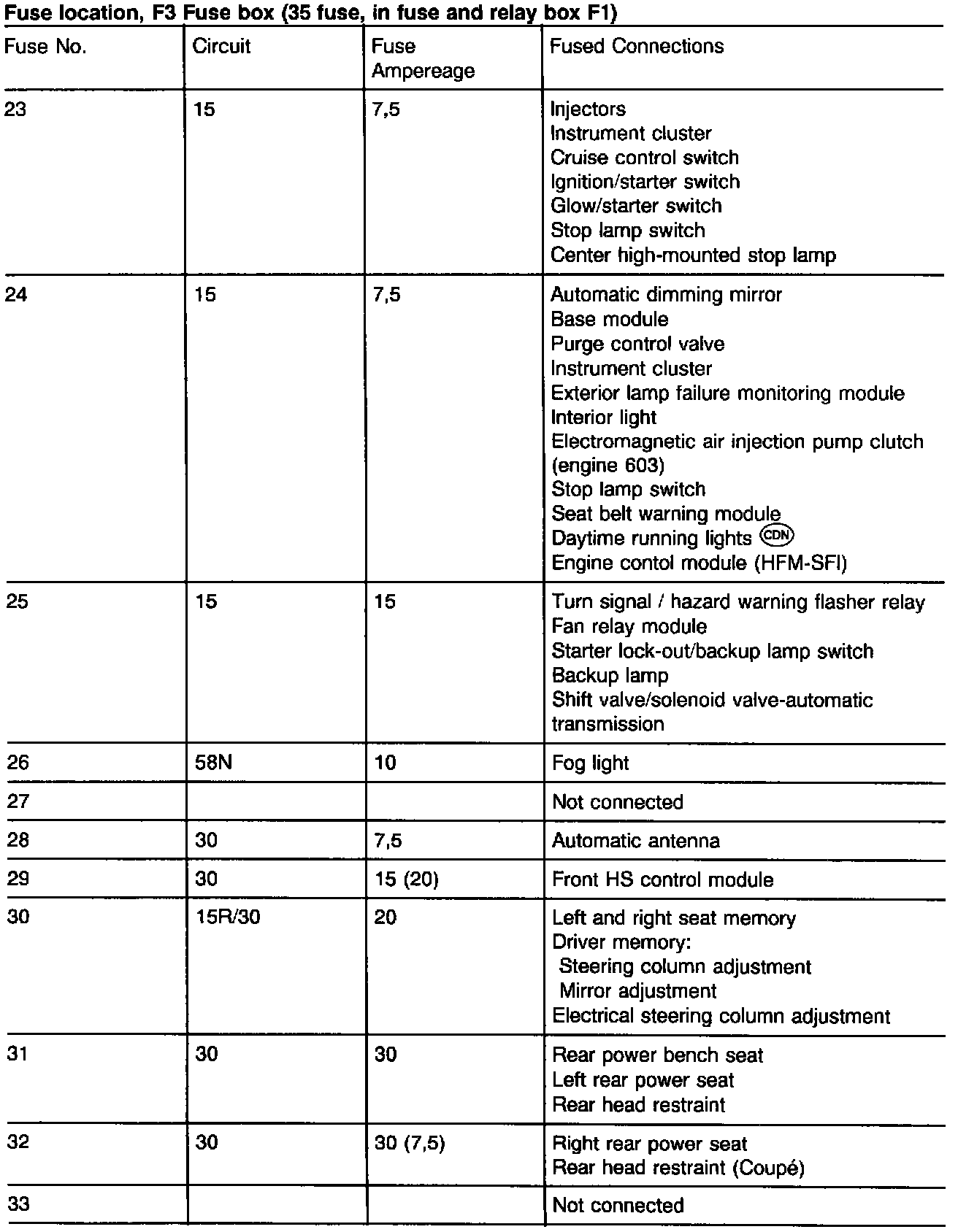

Fuses 23 - 33:

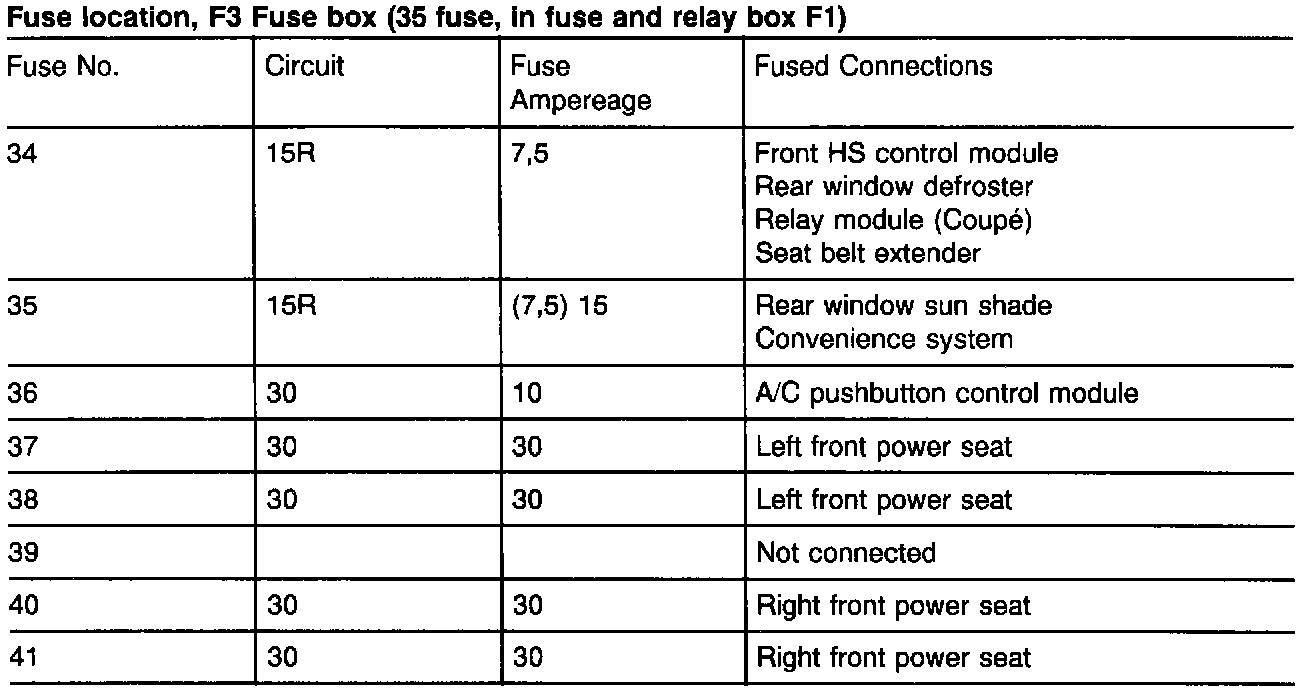

Fuses 34 - 41:

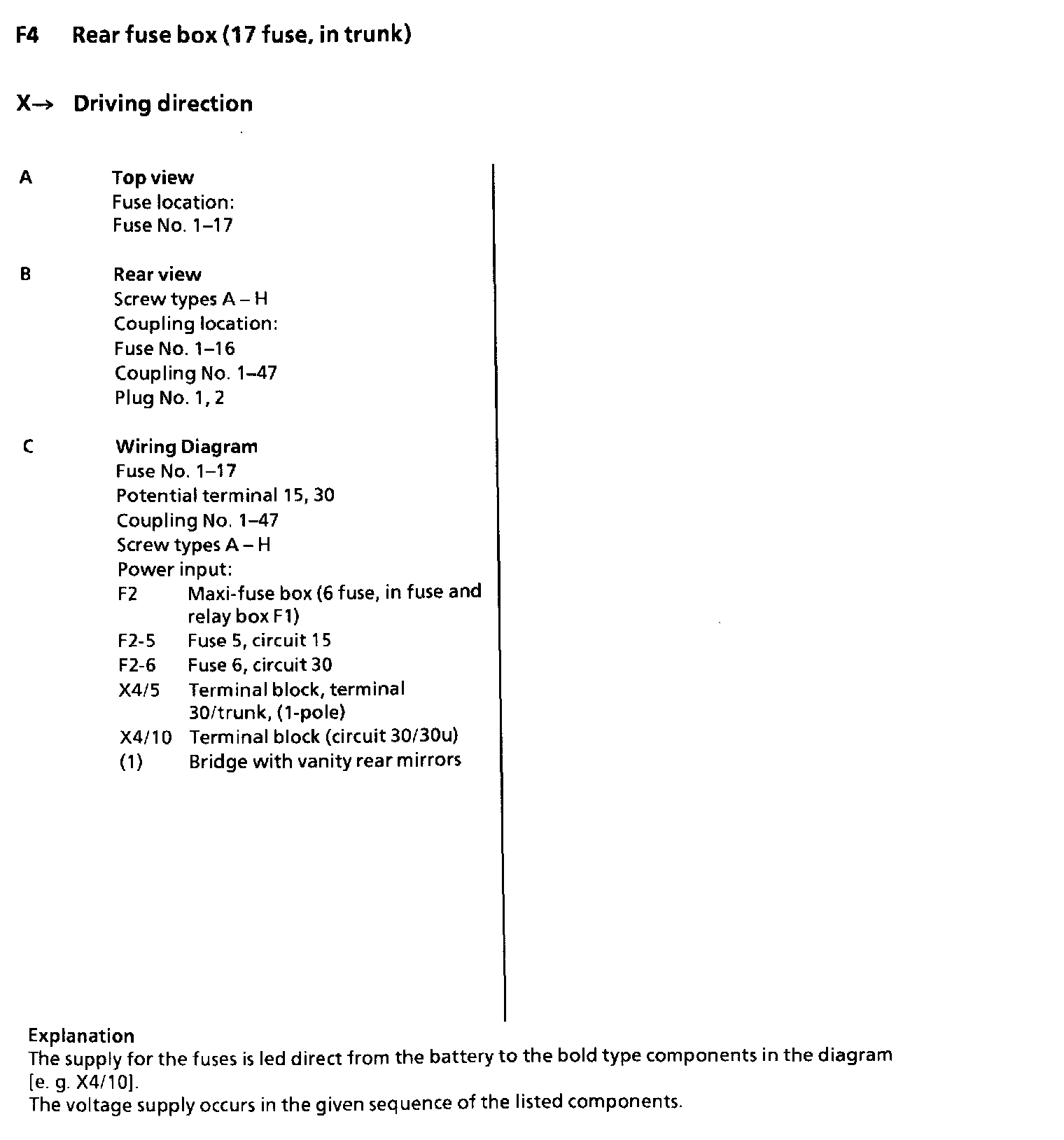

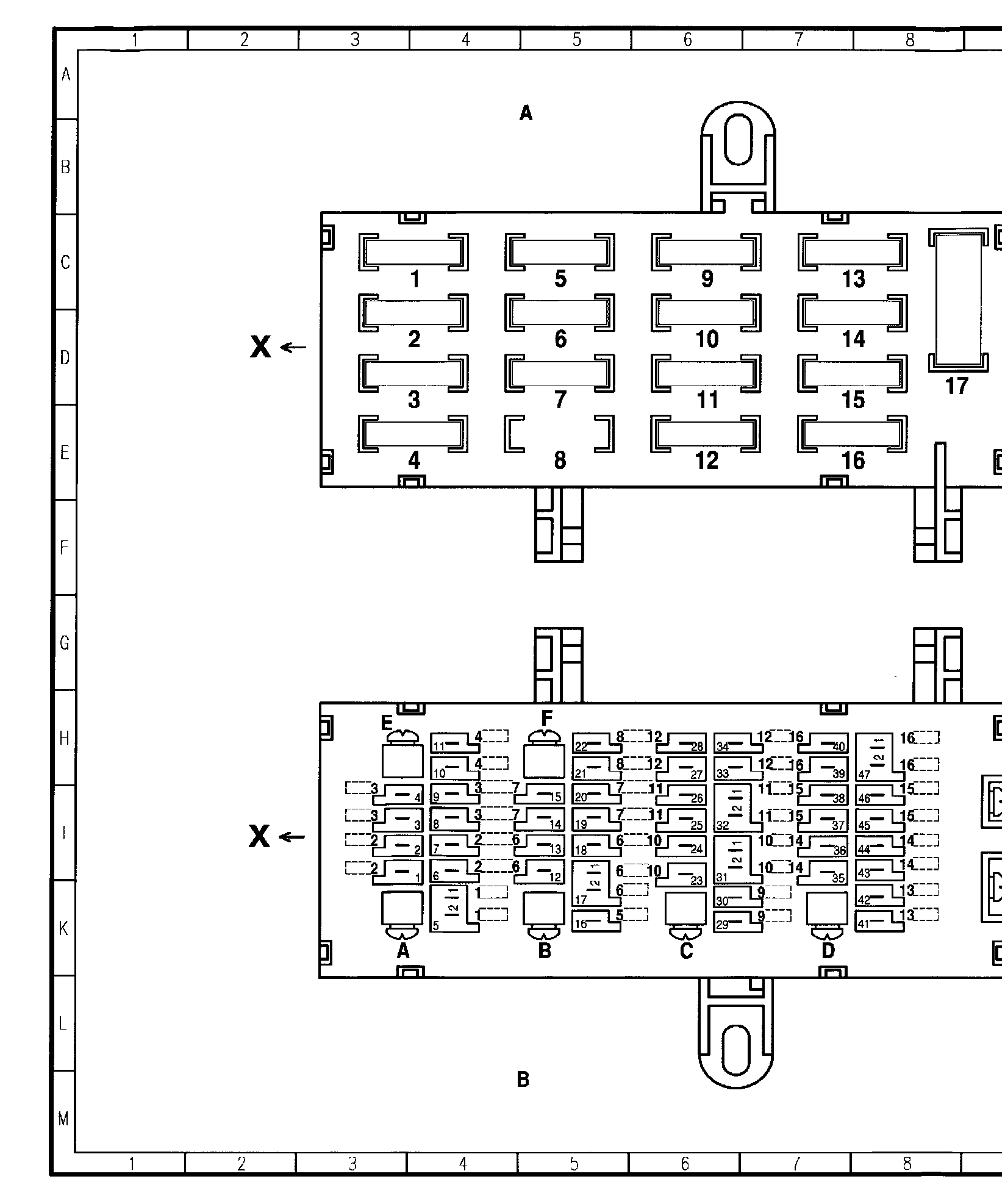

F4 - Rear Fuse Box (17 Fuse, In Trunk)
p��:

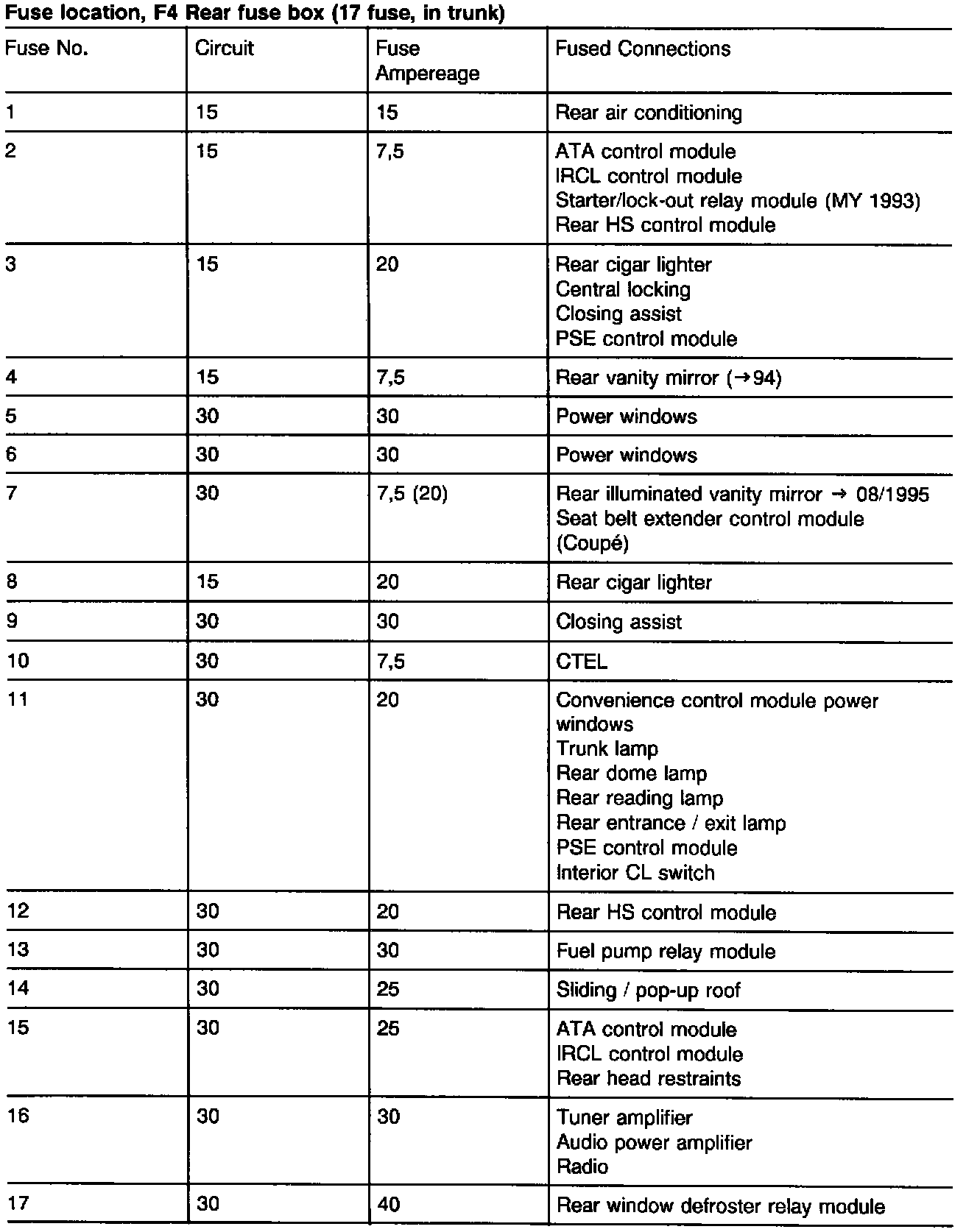

Fuses 1 - 17:
