Check Charging Current of Generator

Preliminary work:
Preconditions for test, Prerequisites For Checking Generator
Testing regulating voltage, Check Regulation Voltage of Generator

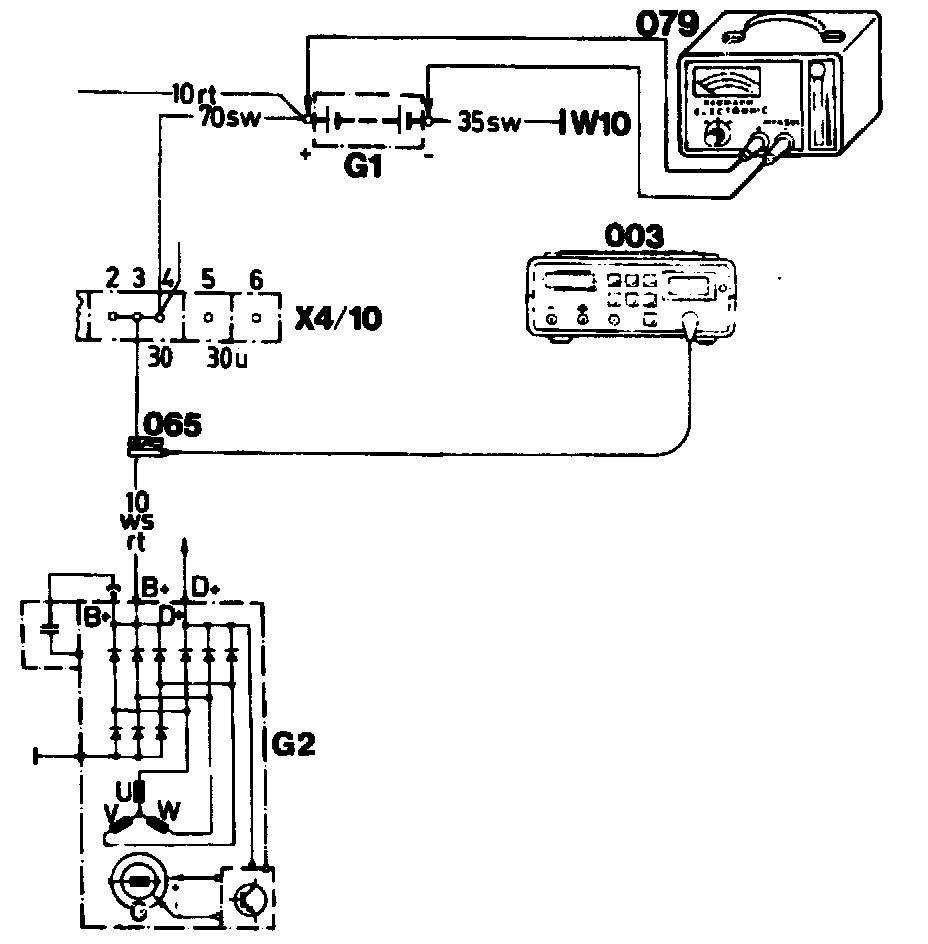

Connection diagram

G1 Battery
G2 Generator
W10 Battery ground
X4/10 Terminal block terminal 30/30U
003 Multimeter
065 DC clamp-on probe
079 Load resistor


Multimeter (003)
connect, disconnect.

Volt/ampere tester with load resistor (079)
connect, disconnect.

Engine
start, switch off.

Charging current
Test. Run engine up to appropriate speed (see image below).
Apply load to battery with load resistor until max. charging current is reached. The regulating voltage must not drop below 12.7 volts when performing this step.
Specification (see image below).
Specification not reached. Perform diode test, Check Diodes of Generator

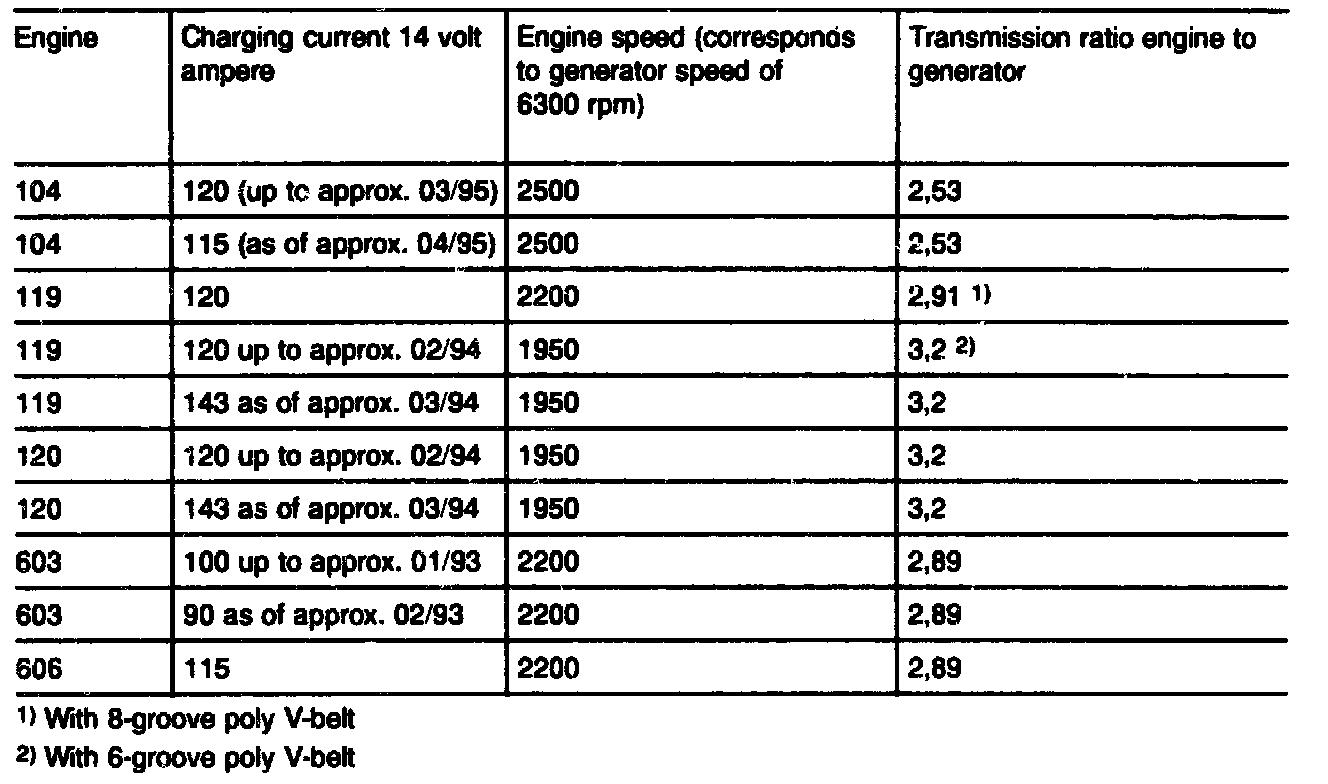

Charging Current of Generator:

Charging current of generator


Commercially available testers
Multimeter e.g. Sun DMM-5 or Fluke, 23
Volt/ampere tester with load resistor e.g. Hermann, Elektronic
