Alternator: Service and Repair




Preliminary work:
Poly V-belt slackened
Engine compartment paneling removed






Ground cable at battery
disconnect, connect.

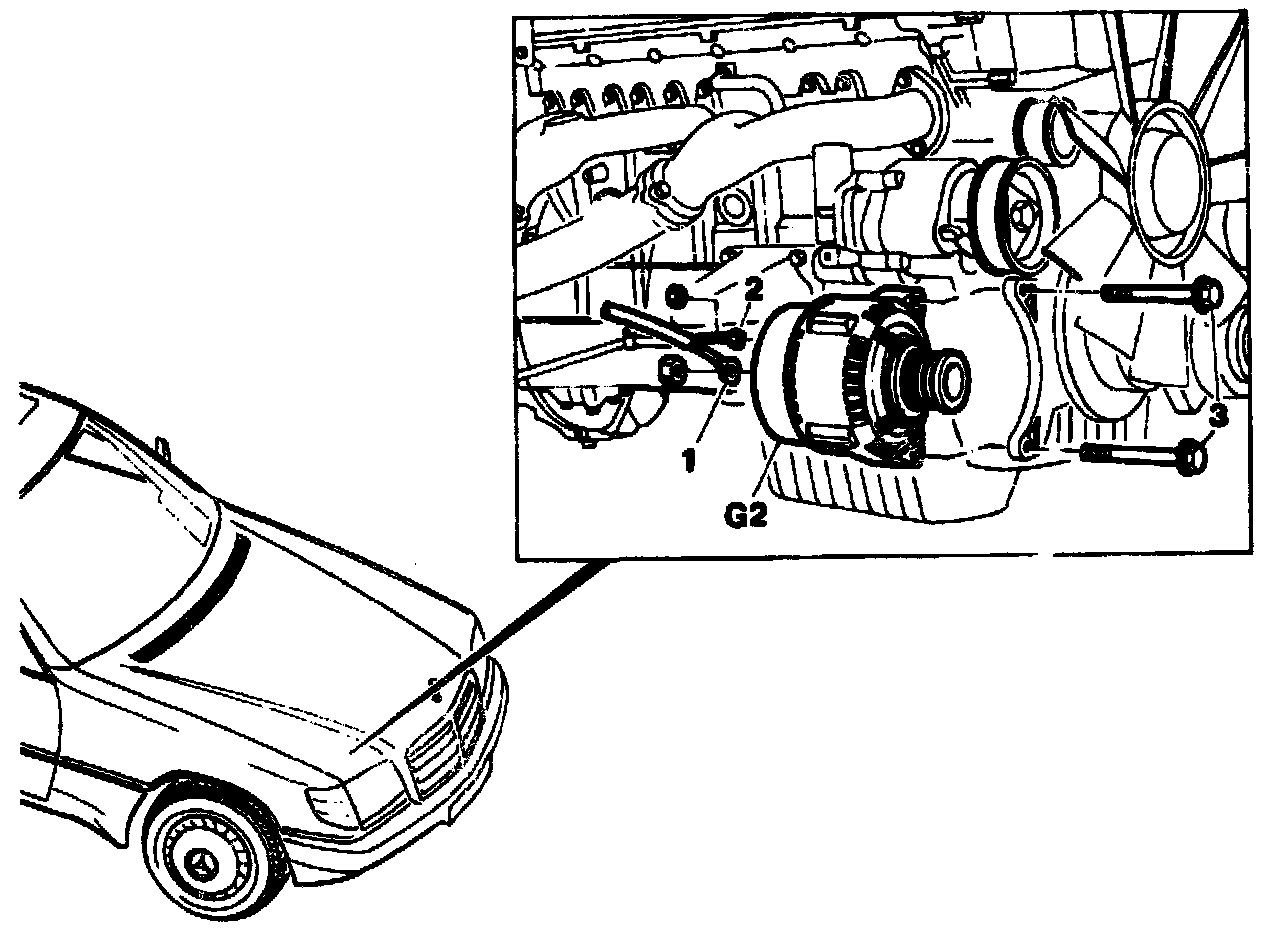

Electric wiring (1 and 2) at generator (G2)
disconnect, connect.

Bolts (3)
unscrew, screw in.

Generator (G2)
remove downward, insert from below.
