Electrical Diagrams

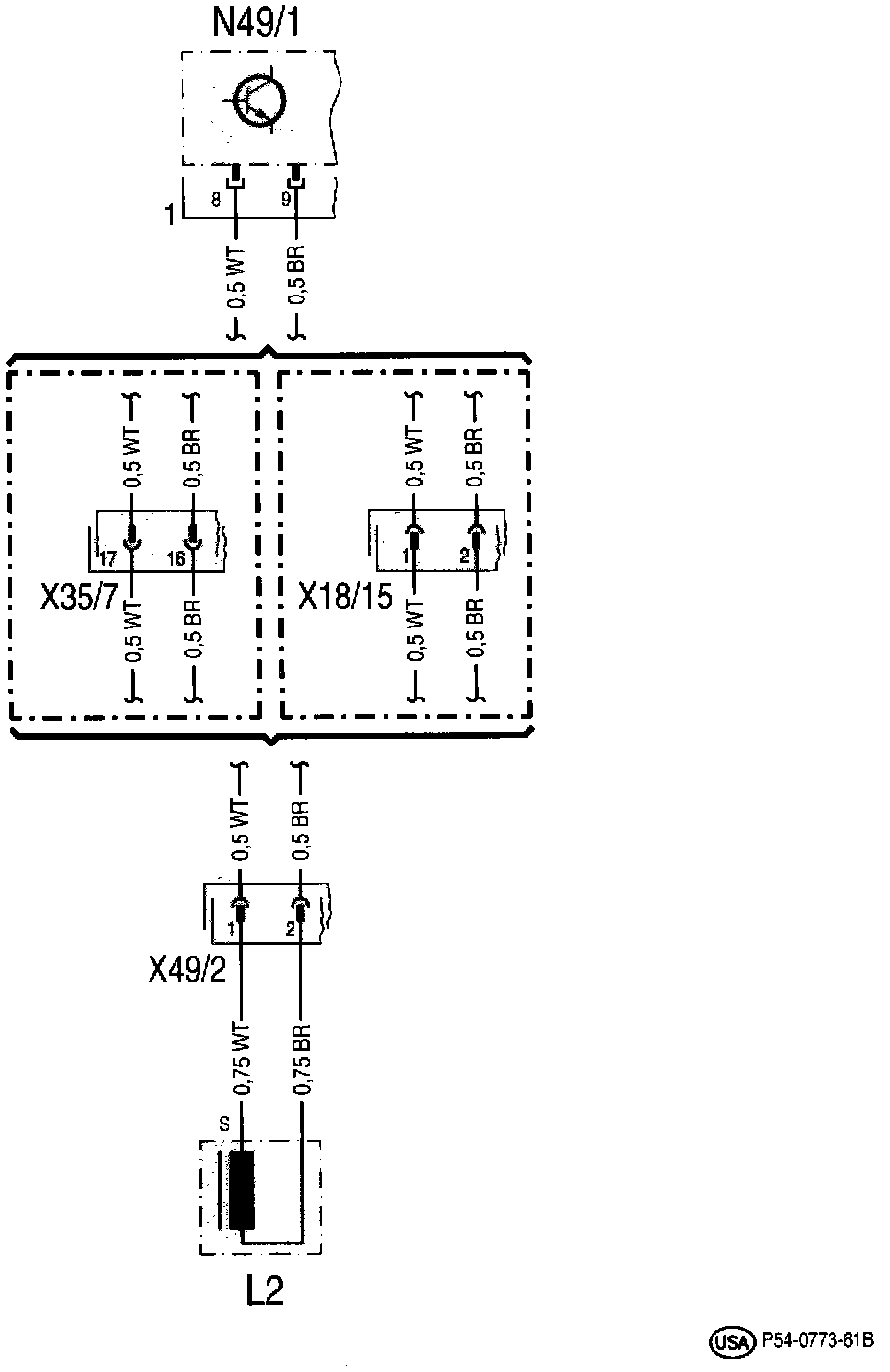

Inductive Speed Signal Sensor, Transmission:

L2 Inductive speed sensor, transmission
N49/1 Speed sensitive power steering control unit
X18/15 Connector, cockpit/taillamp harness (SSPS, California) (6-pole)
X35/7 Plug connection, cockpit/module box (18-pole)
X49/2 Connector, backup lamp/starter lock-out switch (10-pole)
