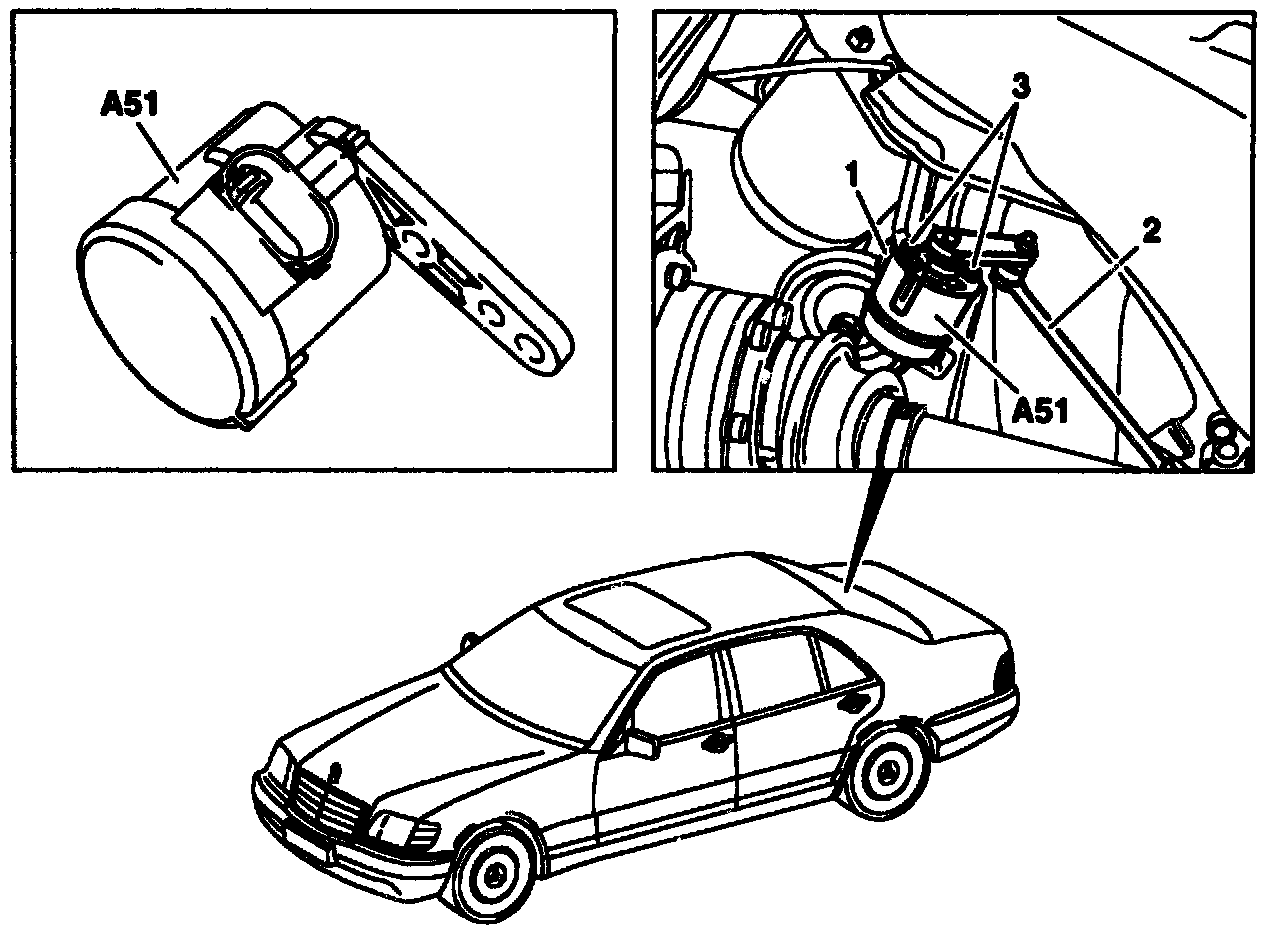

Rear Axle Headlamp Range Adjustment Sensor

Electrical connection (1)
disconnect, reconnect.

Connecting rod (2)
detach and unhook, hook in and fasten.

Screws (3)
unscrew, screw in.

Rear axle sensor (A51)
remove, install.

NOTE: Adjust xenon headlamps to zero position with HHT. Then check headlamp adjustment with adjustment unit and adjust as necessary.
