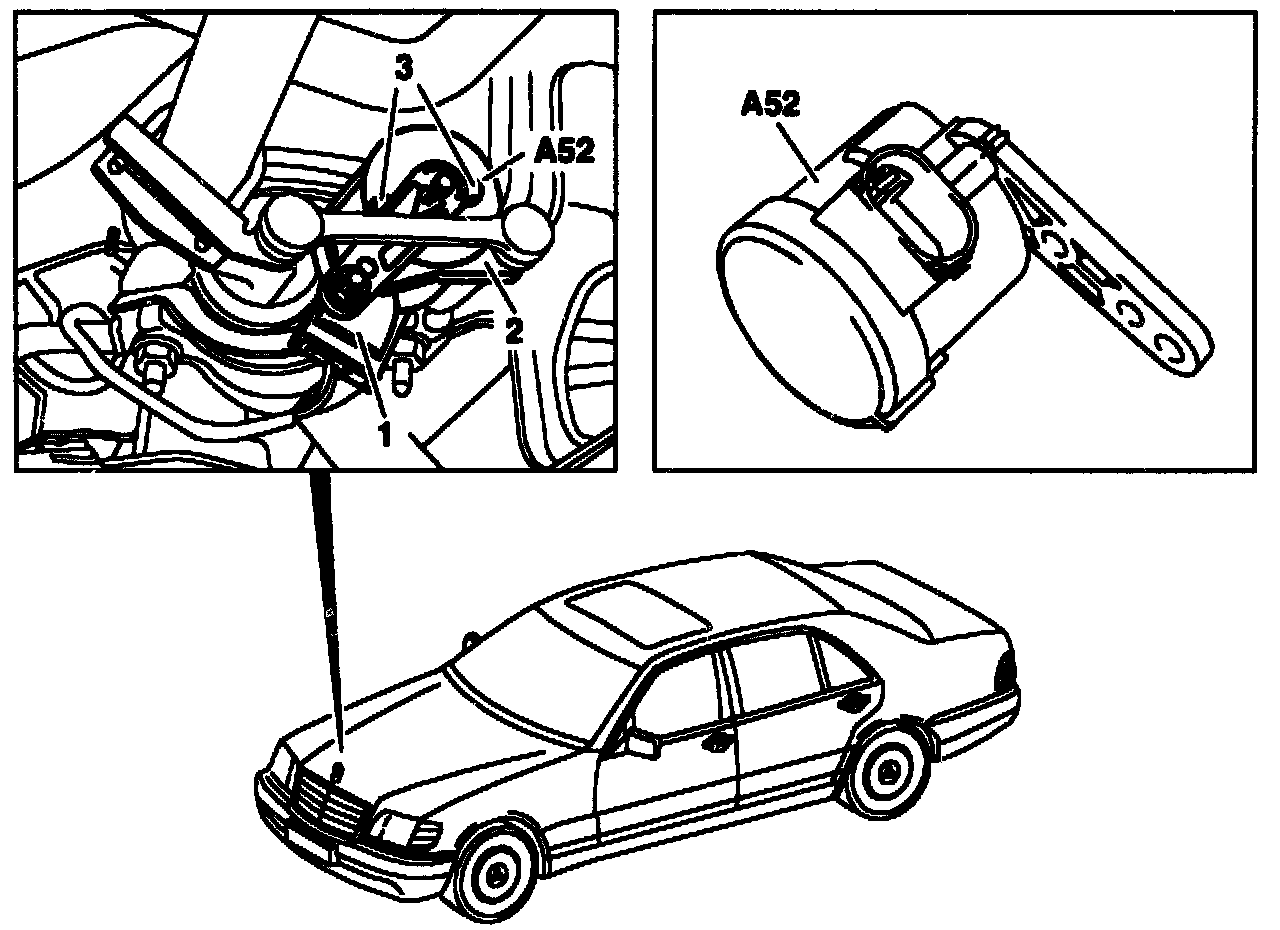

Front Axle Headlamp Range Adjustment Sensor

Bottom engine compartment paneling
remove ,install.

Electrical connection (1)
disconnect, reconnect

Connecting rod (2)
detach and unhook, hook in and fasten.

Screws (3)
unscrew, screw in.

Front axle sensor (A52)
remove, install.


NOTE: Adjust xenon headlamps to zero position with HHT. Then check headlamp adjustment with adjustment unit and adjust as necessary.
